How to Use Adruino Mega Sensor Shield: Examples, Pinouts, and Specs

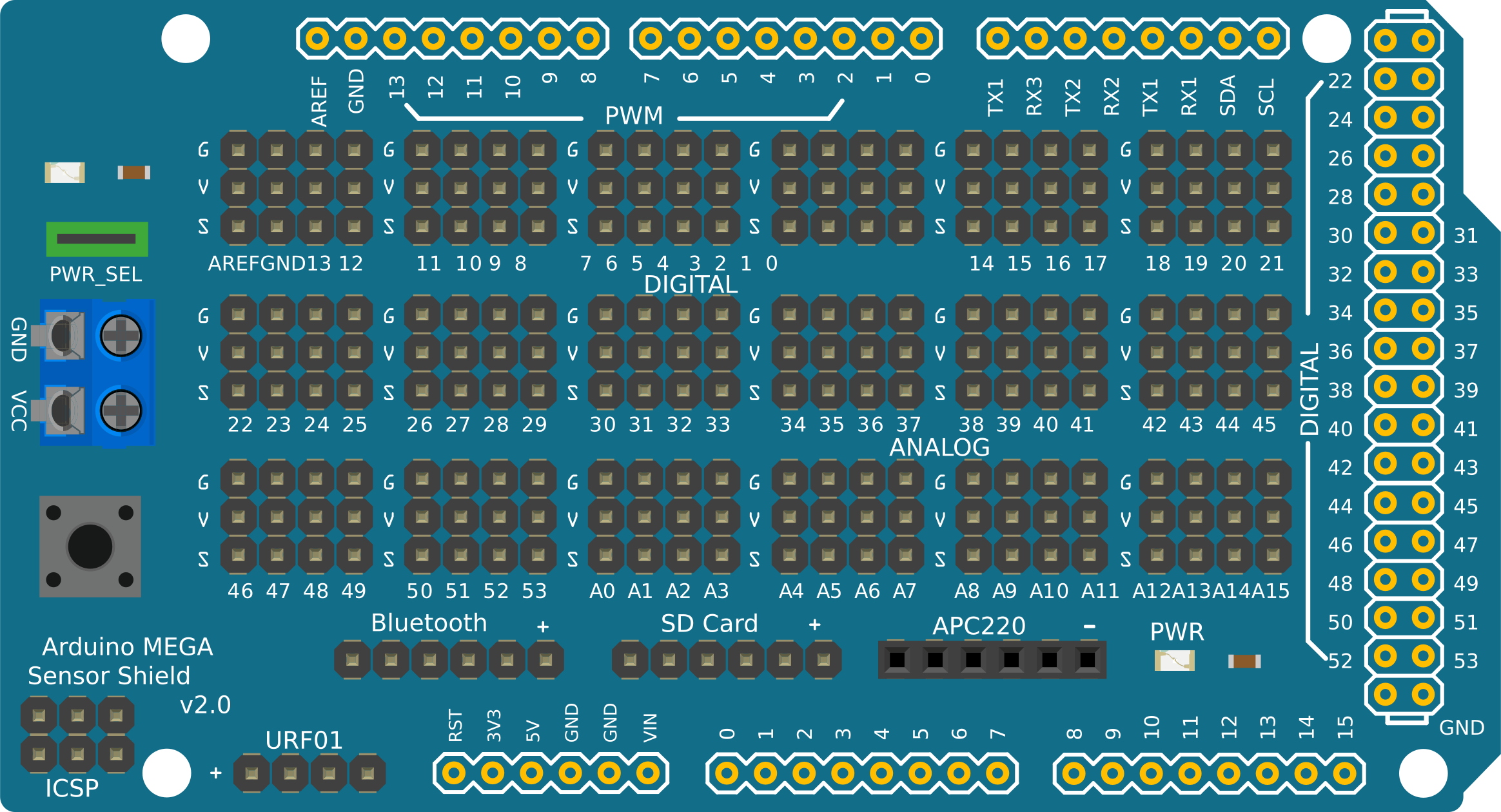

The Arduino Mega Sensor Shield is a versatile expansion board designed specifically for the Arduino Mega. It simplifies the process of connecting various sensors, modules, and other peripherals to the Arduino Mega by providing a well-organized layout of pin headers and connectors. This shield is ideal for projects requiring multiple inputs and outputs, such as robotics, home automation, and data acquisition systems. By using this shield, users can significantly reduce wiring complexity and improve the reliability of their projects.

• Robotics projects with multiple sensors and actuators
• Home automation systems with numerous input/output devices
• Data logging and monitoring systems
• Prototyping and testing of sensor-based circuits
• Educational projects for learning about sensors and microcontrollers

The Arduino Mega Sensor Shield is designed to match the pinout of the Arduino Mega, providing easy access to all its I/O pins. Below are the key technical details:

• Compatible with Arduino Mega 2560 and similar boards
• Breakout headers for all Arduino Mega pins
• Dedicated 3-pin connectors (Signal, VCC, GND) for sensors and modules
• I2C and UART communication ports
• Servo motor connectors with power supply options
• Reset button for convenience
• Compact and stackable design

The shield provides a clear and organized layout for connecting peripherals. Below is a table summarizing the pin configuration:

• Input Voltage: 5V (via Arduino Mega or external power source)
• Current Capacity: Dependent on the Arduino Mega and external power supply

1. Attach the Shield: Align the shield with the Arduino Mega's pin headers and gently press it down to ensure a secure connection.
2. Connect Sensors and Modules: Use the 3-pin connectors (Signal, VCC, GND) to attach sensors and modules. Ensure proper orientation to avoid damage.
3. Power the Shield: The shield can draw power from the Arduino Mega or an external power source. For high-power devices like servos, use an external power supply.
4. Write and Upload Code: Write your Arduino sketch in the Arduino IDE, upload it to the Arduino Mega, and test your setup.

• Check Pin Assignments: Ensure that the pins used in your code match the physical connections on the shield.
• Avoid Overloading: Do not exceed the current capacity of the Arduino Mega or the shield's power supply.
• Use External Power for Servos: When using multiple servos, connect an external power source to avoid voltage drops.
• Secure Connections: Use jumper wires or connectors that fit snugly to prevent loose connections.
• Test Incrementally: Test each sensor or module individually before integrating them into a larger project.

Below is an example of how to use the shield to read data from a temperature sensor (e.g., LM35) connected to analog pin A0:

// Example code for reading temperature data from an LM35 sensor
// connected to the Arduino Mega Sensor Shield on pin A0.

const int tempSensorPin = A0; // Define the analog pin for the temperature sensor

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  Serial.println("Temperature Sensor Test");
}

void loop() {
  int sensorValue = analogRead(tempSensorPin); // Read the analog value from the sensor
  float voltage = sensorValue * (5.0 / 1023.0); // Convert the value to voltage
  float temperature = voltage * 100.0; // Convert voltage to temperature (Celsius)

  // Print the temperature to the Serial Monitor
  Serial.print("Temperature: ");
  Serial.print(temperature);
  Serial.println(" °C");

  delay(1000); // Wait for 1 second before the next reading
}

1. Sensors Not Responding

   • Cause: Incorrect wiring or loose connections.
   • Solution: Double-check the wiring and ensure proper orientation of the connectors.

2. Arduino Not Powering the Shield

   • Cause: Insufficient power supply or faulty connection.
   • Solution: Verify that the Arduino Mega is powered and securely connected to the shield. Use an external power source if needed.

3. Servo Motors Not Working

   • Cause: Insufficient current from the Arduino Mega.
   • Solution: Use an external power supply for the servo motors and ensure proper grounding.

4. I2C Devices Not Communicating

   • Cause: Address conflict or incorrect wiring.
   • Solution: Check the I2C addresses of connected devices and ensure proper SDA/SCL connections.

Q: Can I stack another shield on top of the Arduino Mega Sensor Shield?
A: Yes, the shield is designed to be stackable. However, ensure that the additional shield does not interfere with the pin connections or exceed the power limits.

Q: Can I use this shield with an Arduino Uno?
A: No, this shield is specifically designed for the Arduino Mega and is not compatible with the Arduino Uno due to differences in pin layout.

Q: How many servos can I connect to the shield?
A: The number of servos depends on the available PWM pins and the power supply. The Arduino Mega has 15 PWM pins, but ensure your power source can handle the current requirements.

Q: Do I need to solder anything on the shield?
A: No, the shield comes pre-assembled and ready to use. However, you may solder additional components if needed for your project.

By following this documentation, you can effectively use the Arduino Mega Sensor Shield to enhance your projects and simplify sensor/module integration.
