How to Use Arduino UNO: Examples, Pinouts, and Specs

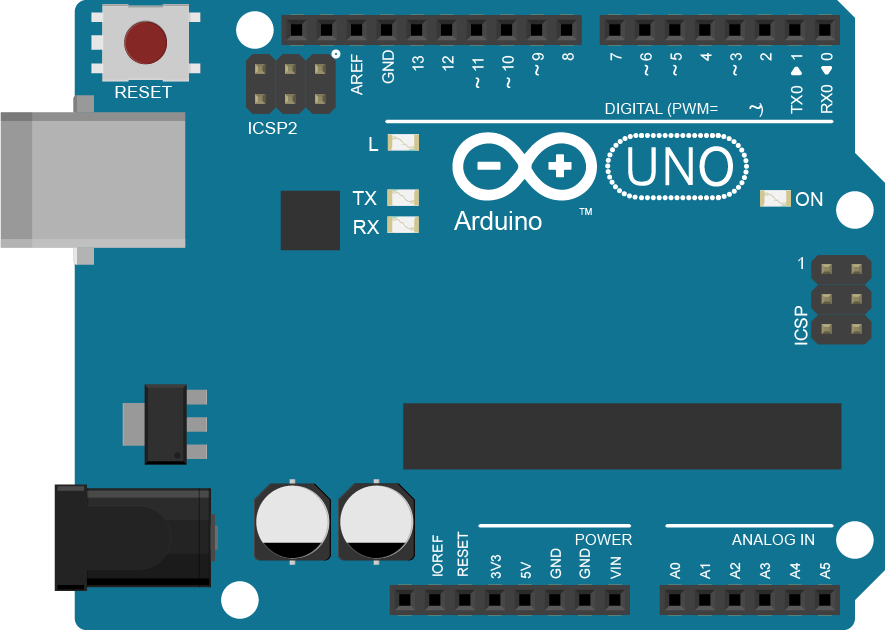

The Arduino UNO is a microcontroller board based on the ATmega328P. It is one of the most popular and versatile development boards in the Arduino ecosystem, widely used for building digital devices and interactive objects that can sense and control the physical world. Its simplicity, open-source nature, and extensive community support make it an excellent choice for beginners and professionals alike.

• Prototyping and development of IoT devices
• Robotics and automation projects
• Sensor data acquisition and processing
• Home automation systems
• Educational purposes for learning programming and electronics
• Interactive art installations

The Arduino UNO is designed to provide a balance of performance, ease of use, and flexibility. Below are its key technical details:

• Microcontroller: ATmega328P
• Operating Voltage: 5V
• Input Voltage (recommended): 7-12V
• Input Voltage (limit): 6-20V
• Digital I/O Pins: 14 (6 of which provide PWM output)
• Analog Input Pins: 6
• DC Current per I/O Pin: 20 mA
• Flash Memory: 32 KB (0.5 KB used by bootloader)
• SRAM: 2 KB
• EEPROM: 1 KB
• Clock Speed: 16 MHz
• USB Connector: Type-B
• Dimensions: 68.6 mm x 53.4 mm
• Weight: 25 g

The Arduino UNO has a total of 28 pins, including digital, analog, power, and communication pins. Below is a detailed description of the pin configuration:

The Arduino UNO is straightforward to use and can be programmed using the Arduino IDE. Below are the steps to get started and some best practices:

1. Power the Board: Connect the Arduino UNO to your computer using a USB Type-B cable or use an external power supply (7-12V) via the VIN pin or DC barrel jack.
2. Install the Arduino IDE: Download and install the Arduino IDE from the official Arduino website.
3. Connect the Board: Open the Arduino IDE, select the correct board ("Arduino UNO") and port under the "Tools" menu.
4. Write and Upload Code:
   • Write your program (sketch) in the Arduino IDE.
   • Click the "Upload" button to transfer the code to the board.
5. Connect Components: Use jumper wires to connect sensors, actuators, or other components to the appropriate pins on the Arduino UNO.

The following example demonstrates how to blink an LED connected to pin 13 of the Arduino UNO:

// This program blinks an LED connected to pin 13 of the Arduino UNO.
// The LED will turn on for 1 second and off for 1 second in a loop.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

• Power Supply: Always ensure the input voltage is within the recommended range (7-12V) to avoid damaging the board.
• Pin Current Limits: Do not exceed 20 mA per I/O pin to prevent damage to the microcontroller.
• Static Electricity: Handle the board with care to avoid static discharge, which can damage sensitive components.
• Code Optimization: Use efficient coding practices to make the most of the limited memory and processing power.

1. Problem: The Arduino UNO is not recognized by the computer.

   • Solution: Ensure the USB cable is properly connected and functional. Install the necessary drivers from the Arduino IDE.

2. Problem: The code does not upload to the board.

   • Solution: Check that the correct board and port are selected in the Arduino IDE. Ensure no other program is using the COM port.

3. Problem: The board is not powering on.

   • Solution: Verify the power source and connections. If using an external power supply, ensure it is within the recommended voltage range.

4. Problem: Components connected to the board are not working as expected.

   • Solution: Double-check the wiring and ensure the components are compatible with the Arduino UNO.

• Q: Can the Arduino UNO be powered by batteries?

  • A: Yes, you can use a 9V battery connected to the DC barrel jack or VIN pin.

• Q: How do I reset the Arduino UNO?

  • A: Press the reset button on the board or connect the RESET pin to GND momentarily.

• Q: Can I use the Arduino UNO for wireless communication?

  • A: Yes, you can use wireless modules like the HC-05 Bluetooth module or ESP8266 Wi-Fi module with the Arduino UNO.

By following this documentation, you can effectively use the Arduino UNO for a wide range of projects and applications.
