Introduction

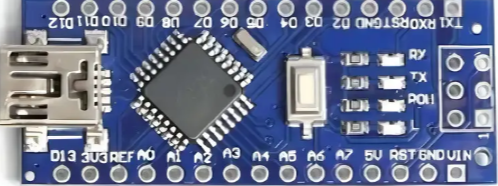

The Arduino Nano is a compact microcontroller board developed by Arduino, based on the ATmega328P microcontroller. It is designed for small-scale projects and prototyping, offering a balance of functionality and size. The Nano is equipped with digital and analog input/output pins, USB connectivity for programming, and full compatibility with the Arduino IDE. Its small form factor makes it ideal for embedding into projects where space is limited.

Explore Projects Built with Arduino Nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano and OLED Display for Real-Time Data Visualization
Image of OLED Display: A project utilizing Arduino Nano in a practical application
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
Image of Compass: A project utilizing Arduino Nano in a practical application
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Basic Setup for Embedded Projects
Image of yt: A project utilizing Arduino Nano in a practical application
This circuit consists of an Arduino Nano microcontroller with no external components connected. The provided code is a basic template with empty setup and loop functions, indicating that the circuit is likely intended for initial testing or development purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Based Bluetooth-Controlled Servo System with Flex Sensors and MPU-6050
Image of Copy of Robot + Glove: A project utilizing Arduino Nano in a practical application
This circuit consists of an Arduino UNO and an Arduino Nano, which communicate via Bluetooth modules. The Arduino Nano reads data from two flex sensors and an MPU-6050 accelerometer, sending the data to the Arduino UNO. The Arduino UNO controls three micro servos through a PCA9685 PWM driver, moving them back and forth.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino Nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of OLED Display: A project utilizing Arduino Nano in a practical application
Arduino Nano and OLED Display for Real-Time Data Visualization
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Compass: A project utilizing Arduino Nano in a practical application
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of yt: A project utilizing Arduino Nano in a practical application
Arduino Nano Basic Setup for Embedded Projects
This circuit consists of an Arduino Nano microcontroller with no external components connected. The provided code is a basic template with empty setup and loop functions, indicating that the circuit is likely intended for initial testing or development purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of Robot + Glove: A project utilizing Arduino Nano in a practical application
Arduino-Based Bluetooth-Controlled Servo System with Flex Sensors and MPU-6050
This circuit consists of an Arduino UNO and an Arduino Nano, which communicate via Bluetooth modules. The Arduino Nano reads data from two flex sensors and an MPU-6050 accelerometer, sending the data to the Arduino UNO. The Arduino UNO controls three micro servos through a PCA9685 PWM driver, moving them back and forth.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Wearable electronics
  • Robotics and automation
  • IoT (Internet of Things) devices
  • Sensor-based projects
  • Educational tools for learning microcontroller programming

Technical Specifications

Key Technical Details

Parameter Specification
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (6 PWM outputs)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (2 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
Dimensions 45 mm x 18 mm
Weight 7 grams

Pin Configuration and Descriptions

The Arduino Nano has a total of 30 pins, including power, digital, and analog pins. Below is a detailed description of the pin configuration:

Power Pins

Pin Name Description
VIN Input voltage to the board when using an external power source (7-12V).
5V Regulated 5V output from the onboard voltage regulator.
3.3V 3.3V output generated by the onboard regulator.
GND Ground pins (multiple available).
RESET Resets the microcontroller when connected to GND.

Digital Pins

Pin Number Description
D0 - D13 General-purpose digital I/O pins. D3, D5, D6, D9, D10, and D11 support PWM.

Analog Pins

Pin Number Description
A0 - A7 Analog input pins with a 10-bit resolution (values from 0 to 1023).

Communication Pins

Pin Name Description
TX (D1) Transmit pin for serial communication.
RX (D0) Receive pin for serial communication.
SDA Data line for I2C communication (shared with A4).
SCL Clock line for I2C communication (shared with A5).

Usage Instructions

How to Use the Arduino Nano in a Circuit

  1. Powering the Board:

    • Use the USB Mini-B connector to power and program the board.
    • Alternatively, supply 7-12V to the VIN pin or 5V to the 5V pin.
  2. Programming:

    • Connect the Nano to your computer using a USB Mini-B cable.
    • Open the Arduino IDE, select "Arduino Nano" as the board, and choose the correct processor (ATmega328P).
    • Write your code and upload it to the board.
  3. Connecting Components:

    • Use the digital pins for controlling LEDs, relays, or other digital devices.
    • Use the analog pins to read sensor data (e.g., temperature, light intensity).
    • For communication, use the TX/RX pins for serial, or SDA/SCL for I2C.

Important Considerations and Best Practices

  • Avoid exceeding the maximum current rating (40 mA) for any I/O pin.
  • Use external pull-up or pull-down resistors for stable digital input signals.
  • Ensure proper grounding when connecting external components to avoid noise or damage.
  • When using the VIN pin, ensure the input voltage is within the recommended range (7-12V).

Example Code for Arduino Nano

Below is an example code to blink an LED connected to pin D13:

// Blink an LED connected to pin D13
// This code toggles the LED on and off every second.

void setup() {
  pinMode(13, OUTPUT); // Set pin D13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is functional and supports data transfer.
    • Check if the correct COM port is selected in the Arduino IDE.
    • Install or update the USB driver for the Arduino Nano.
  2. Code upload fails:

    • Verify that the correct board and processor are selected in the Arduino IDE.
    • Press the RESET button on the Nano just before uploading the code.
    • Check for loose USB connections.
  3. Components connected to the Nano are not working:

    • Double-check the wiring and connections.
    • Ensure the components are compatible with the Nano's voltage and current ratings.
    • Use a multimeter to verify power supply and signal levels.

FAQs

Q: Can the Arduino Nano run on 3.3V?
A: Yes, the Nano can operate at 3.3V, but ensure that all connected components are compatible with this voltage.

Q: How do I reset the Arduino Nano?
A: Press the RESET button on the board or connect the RESET pin to GND momentarily.

Q: Can I use the Arduino Nano for wireless communication?
A: Yes, you can connect external wireless modules like Bluetooth (HC-05) or Wi-Fi (ESP8266) to the Nano.


This concludes the documentation for the Arduino Nano. For further details, refer to the official Arduino website or community forums.
