Introduction
The LCD 16x2 Attached I2C (Manufacturer Part ID: 1602A-I2C) is a 16x2 character liquid crystal display module that communicates via the I2C protocol. This module simplifies interfacing with microcontrollers by reducing the number of required connections, making it ideal for projects where pin availability is limited. It is widely used in embedded systems, DIY electronics, and prototyping.
Common Applications
- Displaying sensor data in IoT projects
- User interfaces for embedded systems
- Educational and hobbyist projects
- Industrial control panels
- Home automation systems
Technical Specifications
Key Technical Details
Pin Configuration and Descriptions

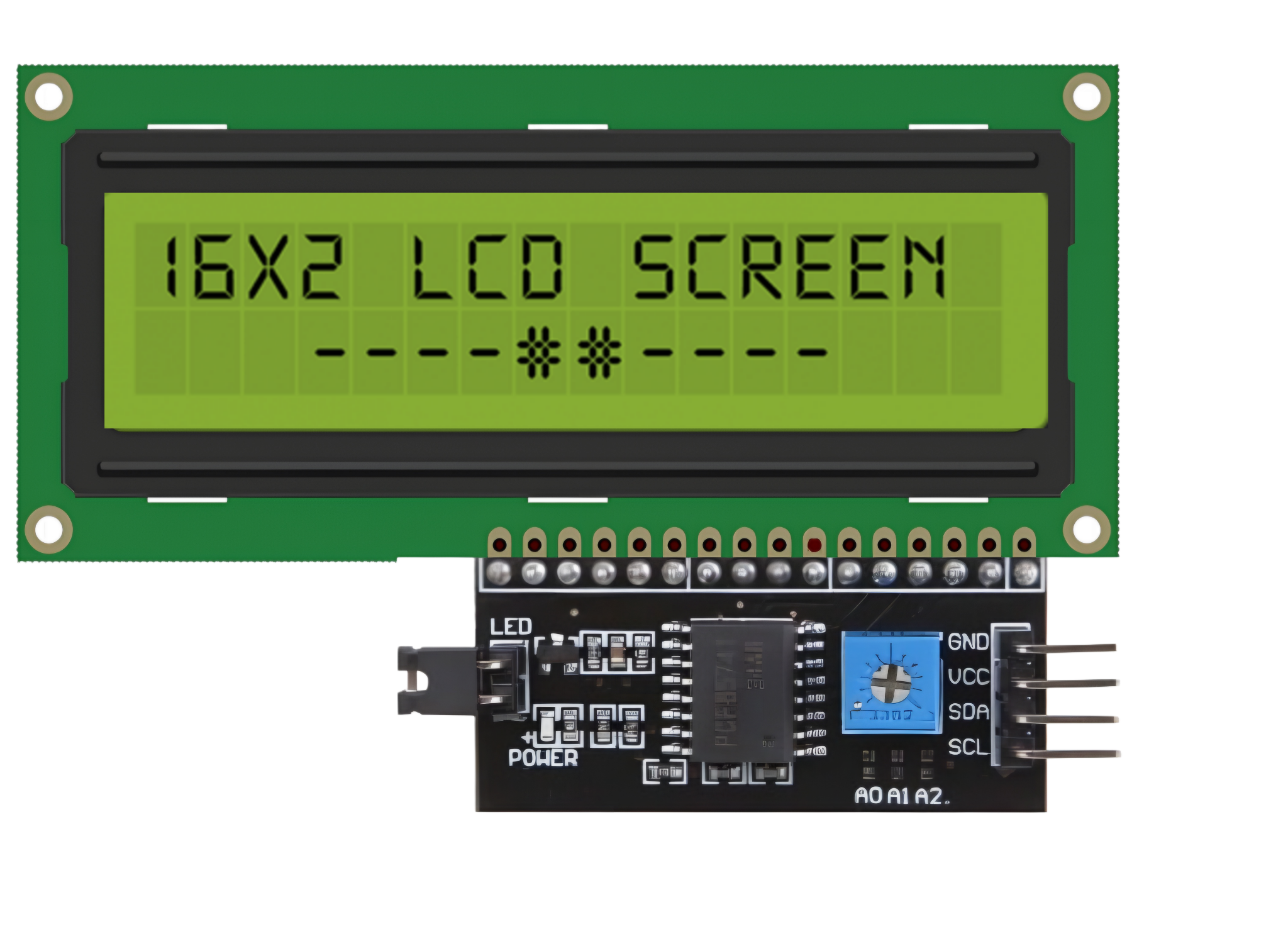

The LCD 16x2 I2C module has a 4-pin header for I2C communication. Below is the pinout:
Usage Instructions
How to Use the Component in a Circuit
Wiring the LCD to a Microcontroller:
- Connect the
GND pin of the LCD to the ground pin of the microcontroller.
- Connect the
VCC pin of the LCD to the 5V power pin of the microcontroller.
- Connect the
SDA pin of the LCD to the I2C data pin of the microcontroller (e.g., A4 on Arduino UNO).
- Connect the
SCL pin of the LCD to the I2C clock pin of the microcontroller (e.g., A5 on Arduino UNO).
Install Required Libraries:
- For Arduino, install the
LiquidCrystal_I2C library from the Arduino Library Manager.
Adjust Contrast:
- Use the onboard potentiometer to adjust the contrast of the display.
Upload Code:
- Use the example code provided below to test the display.
Example Code for Arduino UNO
#include <Wire.h> // Include the Wire library for I2C communication
#include <LiquidCrystal_I2C.h> // Include the LiquidCrystal_I2C library
// Initialize the LCD with I2C address 0x27 and 16x2 dimensions
LiquidCrystal_I2C lcd(0x27, 16, 2);
void setup() {
lcd.begin(); // Initialize the LCD
lcd.backlight(); // Turn on the backlight
lcd.setCursor(0, 0); // Set cursor to the first row, first column
lcd.print("Hello, World!"); // Print a message on the first row
lcd.setCursor(0, 1); // Set cursor to the second row, first column
lcd.print("I2C LCD Test"); // Print a message on the second row
}
void loop() {
// No actions in the loop for this example
}
Important Considerations and Best Practices
- Ensure the I2C address of the LCD matches the address in your code. The default is
0x27, but it may vary depending on the module.
- Avoid exceeding the operating voltage of 5V to prevent damage to the module.
- Use pull-up resistors on the SDA and SCL lines if your microcontroller does not have internal pull-ups enabled.
- Keep I2C wires as short as possible to avoid signal degradation.
Troubleshooting and FAQs
Common Issues and Solutions
The LCD does not display any text:
- Verify the wiring connections, especially the
GND and VCC pins.
- Check the I2C address in your code. Use an I2C scanner sketch to detect the correct address.
- Adjust the contrast using the onboard potentiometer.
The backlight is not turning on:
- Ensure the
VCC pin is connected to a 5V power source.
- Check for any loose connections or damaged wires.
Characters are garbled or not clear:
- Verify the baud rate and I2C communication settings in your code.
- Ensure the SDA and SCL lines are properly connected and not too long.
The display works intermittently:
- Check for loose connections or poor soldering on the module.
- Ensure the power supply is stable and within the operating voltage range.
FAQs
Q: Can I use this module with a 3.3V microcontroller?
A: Yes, but you will need a logic level shifter to safely interface the 3.3V microcontroller with the 5V LCD module.
Q: How do I change the I2C address of the module?
A: The I2C address can be changed by modifying the solder jumpers on the back of the module. Refer to the module's datasheet for details.
Q: Can I use multiple LCD modules on the same I2C bus?
A: Yes, as long as each module has a unique I2C address. Modify the address of additional modules as needed.
Q: Is the backlight brightness adjustable?
A: The backlight brightness can be adjusted by modifying the onboard resistor or using a PWM signal with an external circuit.
This documentation provides all the necessary details to get started with the LCD 16x2 Attached I2C module. For further assistance, consult the module's datasheet or community forums.
