How to Use arduino nano: Examples, Pinouts, and Specs

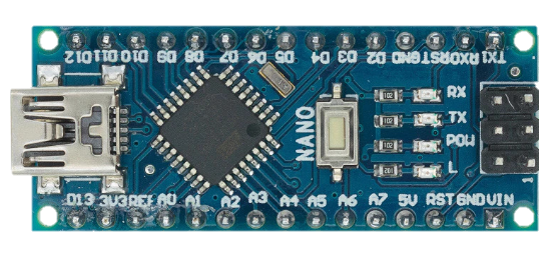

Image of arduino nanoDesign with arduino nano in Cirkit Designer

Introduction

The Arduino Nano is a compact microcontroller board developed by Arduino, based on the ATmega328P microcontroller. It is designed for easy integration into a wide range of projects, offering a small form factor ideal for space-constrained applications. The Nano provides digital and analog input/output pins, USB connectivity for programming, and compatibility with the Arduino IDE, making it a versatile choice for both beginners and experienced developers.

Explore Projects Built with arduino nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Arduino-Controlled Bluetooth Robotic Vehicle with ADXL345 Accelerometer Feedback: A project utilizing arduino nano in a practical application
Arduino-Controlled Bluetooth Robotic Vehicle with ADXL345 Accelerometer Feedback

This circuit features an Arduino UNO and an Arduino Nano as the main controllers, interfaced with two HC-05 Bluetooth modules for wireless communication. The UNO controls a L298N DC motor driver to operate four hobby motors, while the Nano is connected to an Adafruit ADXL345 accelerometer for motion sensing. Power is supplied through a 9V battery and a 2.1mm Barrel Jack with Terminal Block, and the system is designed for remote control and motion detection applications.

Open Project in Cirkit Designer
Image of Arduino UNO and Nano Controlled GPS Tracking System with Relay and Servo Integration: A project utilizing arduino nano in a practical application
Arduino UNO and Nano Controlled GPS Tracking System with Relay and Servo Integration

This circuit features an Arduino UNO and an Arduino Nano as the primary microcontrollers, interfaced with a GPS module for location tracking. The UNO controls a green LED and a relay, while the Nano interfaces with an RC receiver, two servos, and an electronic speed controller (ESC). The circuit is designed for remote control and actuation, likely for a GPS-guided vehicle or drone, with the ability to receive commands via the RC receiver and to control movement through the servos and ESC.

Open Project in Cirkit Designer

Common Applications and Use Cases

Technical Specifications

The Arduino Nano is equipped with a variety of features that make it a powerful and flexible microcontroller board. Below are its key technical specifications:

Specification Details
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (VIN) 7-12V
Digital I/O Pins 14 (6 PWM outputs)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (2 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connectivity Mini-USB
Dimensions 18 x 45 mm

Pin Configuration and Descriptions

The Arduino Nano has a total of 30 pins, including power, digital, and analog pins. Below is a detailed description of the pin configuration:

Power Pins

Pin Name Description
1 VIN Input voltage to the board when using an external power source (7-12V).
2 5V Regulated 5V output from the onboard voltage regulator.
3 3.3V Regulated 3.3V output (maximum current: 50 mA).
4 GND Ground pins.
5 RESET Resets the microcontroller when connected to GND.

Digital Pins

Pin Name Description
D0-D13 Digital I/O General-purpose digital input/output pins. Pins D3, D5, D6, D9, D10, and D11 support PWM.

Analog Pins

Pin Name Description
A0-A7 Analog Input Used for reading analog signals (0-5V). Can also be used as digital I/O pins.

Communication Pins

Pin Name Description
D0, D1 RX, TX Used for serial communication.
D10-D13 SPI Used for SPI communication.
A4, A5 SDA, SCL Used for I2C communication.

Usage Instructions

The Arduino Nano is easy to use and program, making it a popular choice for a variety of projects. Below are the steps and best practices for using the Arduino Nano:

Step 1: Setting Up the Arduino IDE

  1. Download and install the Arduino IDE from the official Arduino website.
  2. Connect the Arduino Nano to your computer using a Mini-USB cable.
  3. Open the Arduino IDE and select the correct board and port:
    • Go to Tools > Board > Arduino Nano.
    • Go to Tools > Port and select the port corresponding to your Nano.

Step 2: Writing and Uploading Code

  1. Write your code in the Arduino IDE. For example, the following code blinks an LED connected to pin D13:

    // Blink an LED connected to pin D13
    void setup() {
      pinMode(13, OUTPUT); // Set pin D13 as an output
    }

    void loop() {
      digitalWrite(13, HIGH); // Turn the LED on
      delay(1000);            // Wait for 1 second
      digitalWrite(13, LOW);  // Turn the LED off
      delay(1000);            // Wait for 1 second
    }

  2. Click the Upload button in the Arduino IDE to upload the code to the Nano.

Step 3: Connecting Components

Best Practices

Troubleshooting and FAQs

Common Issues and Solutions

  1. Problem: The Arduino Nano is not recognized by the computer.

    • Solution: Ensure the correct drivers are installed. For older Nano boards, install the CH340 driver if required.
  2. Problem: Code upload fails with an error message.

    • Solution: Check that the correct board and port are selected in the Arduino IDE. Ensure no other program is using the COM port.
  3. Problem: The Nano is not powering on.

    • Solution: Verify the power source and connections. Ensure the USB cable is functional.
  4. Problem: Analog readings are unstable.

    • Solution: Use a capacitor across the analog input pin and GND to filter noise.

FAQs

By following this documentation, you can effectively use the Arduino Nano in your projects and troubleshoot common issues.
