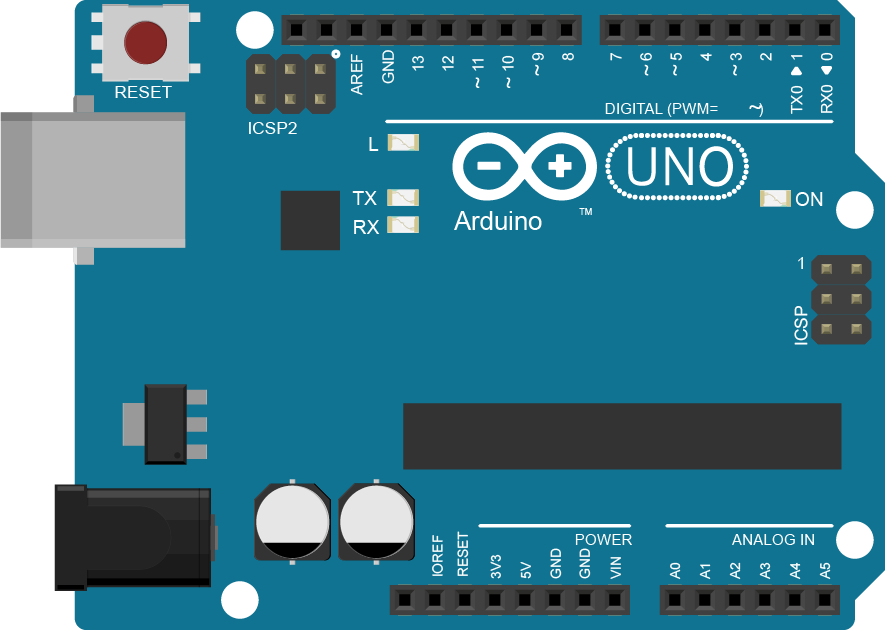

Image of Arduino UNO/input node
Cirkit Designer LogoDesign with Arduino UNO/input node in Cirkit Designer

Introduction

The Arduino UNO is a widely used microcontroller board based on the ATmega328P. It features multiple input and output pins, making it ideal for prototyping and building electronic projects. An input node on the Arduino UNO refers to any pin configured to receive data or signals from external components, such as sensors, switches, or other devices.

Input nodes are essential for gathering data from the environment or user interactions. They are commonly used in applications like temperature monitoring, motion detection, button presses, and more.

Explore Projects Built with Arduino UNO/input node

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

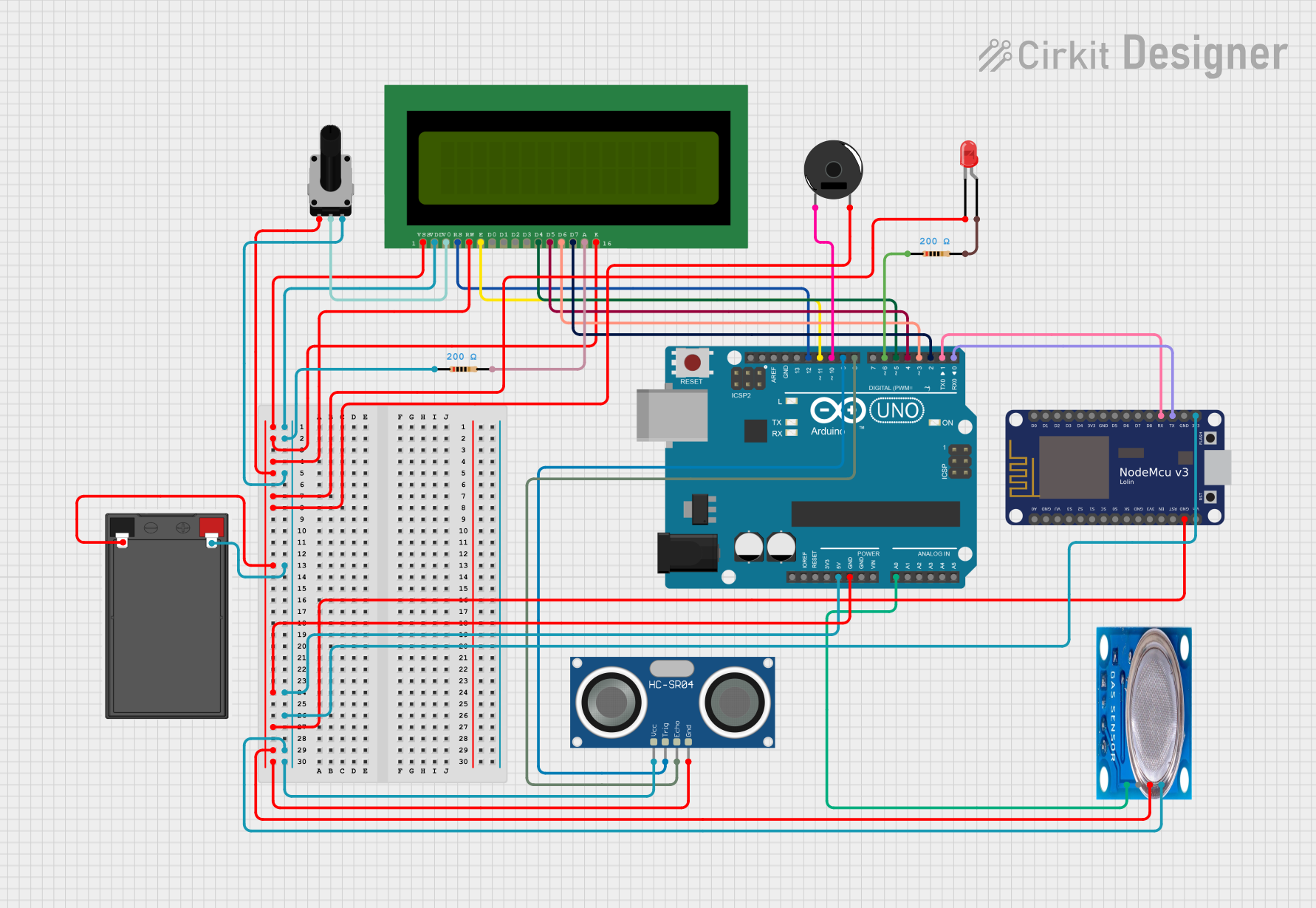

Arduino and NodeMCU-Based Smart Sensor System with LCD Display and Wi-Fi Connectivity
Image of ERMS: A project utilizing Arduino UNO/input node in a practical application
This circuit integrates an Arduino UNO with various sensors and output devices, including an HC-SR04 ultrasonic sensor, an MQ-5 gas sensor, an LCD display, a piezo buzzer, and an LED. The Arduino UNO processes sensor data and controls the display and output devices, while the NodeMCU ESP8266 is connected for potential wireless communication.
Cirkit Designer LogoOpen Project in Cirkit Designer

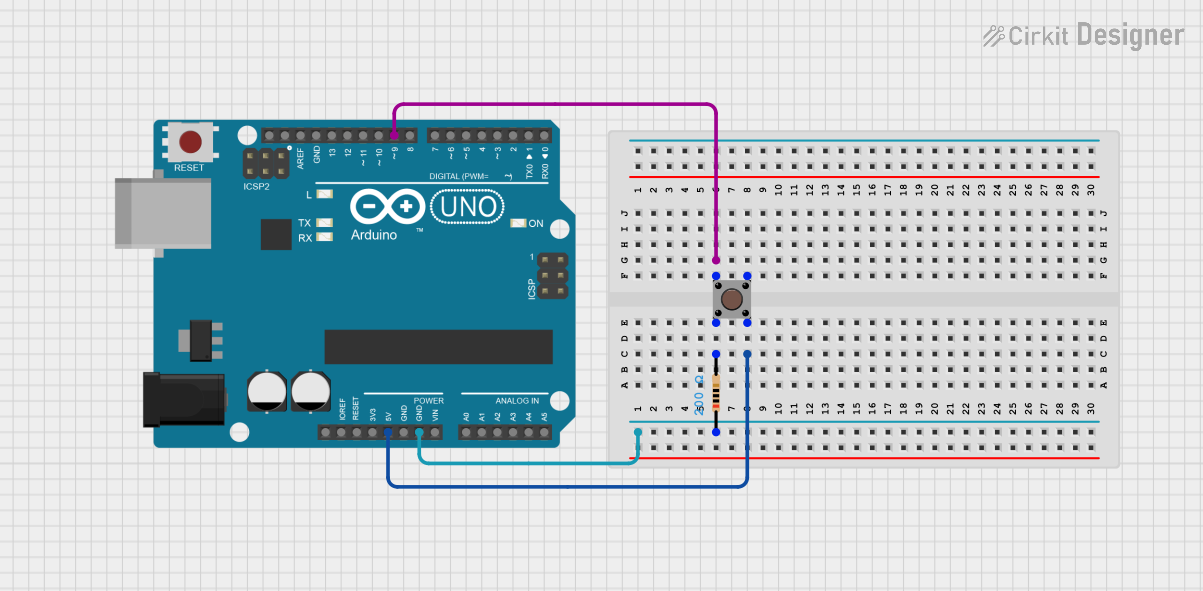

Arduino UNO Pushbutton Controlled Circuit with Resistor
Image of lesson6: A project utilizing Arduino UNO/input node in a practical application
This circuit consists of an Arduino UNO microcontroller connected to a pushbutton and a 200-ohm resistor. The pushbutton is used as an input device, with one side connected to the Arduino's digital pin 9 and the other side connected to 5V through the resistor, which is grounded. The Arduino code provided is a basic template with no specific functionality implemented.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Powered Push Switch Control Circuit
Image of 15: A project utilizing Arduino UNO/input node in a practical application
This circuit features an Arduino UNO microcontroller that is connected to a 2-pin push switch and a resistor. The push switch allows for user input, which is processed by the Arduino, while the resistor is used to pull the input pin to ground, ensuring stable operation when the switch is not engaged.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino and ESP8266-Based Smart Home Automation System with RGB LED and Sensor Integration
Image of IOT_12938: A project utilizing Arduino UNO/input node in a practical application
This circuit integrates an Arduino UNO and an ESP8266 NodeMCU to control various sensors and actuators, including an RGB LED, a temperature and humidity sensor, a joystick module, a relay, a passive buzzer, and an LCD display. The Arduino UNO reads data from the sensors and controls the actuators, while the ESP8266 provides additional connectivity and processing capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino UNO/input node

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of ERMS: A project utilizing Arduino UNO/input node in a practical application
Arduino and NodeMCU-Based Smart Sensor System with LCD Display and Wi-Fi Connectivity
This circuit integrates an Arduino UNO with various sensors and output devices, including an HC-SR04 ultrasonic sensor, an MQ-5 gas sensor, an LCD display, a piezo buzzer, and an LED. The Arduino UNO processes sensor data and controls the display and output devices, while the NodeMCU ESP8266 is connected for potential wireless communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of lesson6: A project utilizing Arduino UNO/input node in a practical application
Arduino UNO Pushbutton Controlled Circuit with Resistor
This circuit consists of an Arduino UNO microcontroller connected to a pushbutton and a 200-ohm resistor. The pushbutton is used as an input device, with one side connected to the Arduino's digital pin 9 and the other side connected to 5V through the resistor, which is grounded. The Arduino code provided is a basic template with no specific functionality implemented.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of 15: A project utilizing Arduino UNO/input node in a practical application
Arduino UNO Powered Push Switch Control Circuit
This circuit features an Arduino UNO microcontroller that is connected to a 2-pin push switch and a resistor. The push switch allows for user input, which is processed by the Arduino, while the resistor is used to pull the input pin to ground, ensuring stable operation when the switch is not engaged.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of IOT_12938: A project utilizing Arduino UNO/input node in a practical application
Arduino and ESP8266-Based Smart Home Automation System with RGB LED and Sensor Integration
This circuit integrates an Arduino UNO and an ESP8266 NodeMCU to control various sensors and actuators, including an RGB LED, a temperature and humidity sensor, a joystick module, a relay, a passive buzzer, and an LCD display. The Arduino UNO reads data from the sensors and controls the actuators, while the ESP8266 provides additional connectivity and processing capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

The Arduino UNO has 14 digital I/O pins (6 of which can be used as PWM outputs) and 6 analog input pins. Below are the key specifications for input nodes:

General Specifications

  • Operating Voltage: 5V
  • Input Voltage (Recommended): 0–5V
  • Input Voltage (Maximum): 0–5.5V (exceeding this may damage the pin)
  • Analog Input Resolution: 10-bit (values range from 0 to 1023)
  • Digital Input Logic Levels:
    • LOW: 0–1.5V
    • HIGH: 3–5V

Pin Configuration and Descriptions

Digital Input Pins

Pin Number Name Description
0–13 D0–D13 Digital I/O pins. Can be configured as
input or output using pinMode().

Analog Input Pins

Pin Number Name Description
A0–A5 Analog 0–5 Analog input pins. Used to read
varying voltage levels (0–5V).

Usage Instructions

Configuring an Input Node

To use a pin as an input node, you must configure it in your Arduino sketch using the pinMode() function. For digital inputs, the pin reads either HIGH or LOW. For analog inputs, the pin reads a value between 0 and 1023, corresponding to the voltage level.

Example: Reading a Digital Input

The following example demonstrates how to read the state of a button connected to a digital input pin:

// Define the pin connected to the button
const int buttonPin = 2;

// Variable to store the button state
int buttonState = 0;

void setup() {
  // Configure the button pin as an input
  pinMode(buttonPin, INPUT);

  // Initialize serial communication for debugging
  Serial.begin(9600);
}

void loop() {
  // Read the state of the button
  buttonState = digitalRead(buttonPin);

  // Print the button state to the Serial Monitor
  Serial.print("Button State: ");
  Serial.println(buttonState);

  // Add a small delay to avoid spamming the Serial Monitor
  delay(100);
}

Example: Reading an Analog Input

The following example demonstrates how to read the value of a potentiometer connected to an analog input pin:

// Define the pin connected to the potentiometer
const int potPin = A0;

// Variable to store the potentiometer value
int potValue = 0;

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);
}

void loop() {
  // Read the value from the potentiometer
  potValue = analogRead(potPin);

  // Print the potentiometer value to the Serial Monitor
  Serial.print("Potentiometer Value: ");
  Serial.println(potValue);

  // Add a small delay to stabilize readings
  delay(100);
}

Important Considerations

  1. Voltage Levels: Ensure the input voltage does not exceed 5V to avoid damaging the pin.
  2. Pull-Up/Pull-Down Resistors: For digital inputs, use pull-up or pull-down resistors to prevent floating states when the input is not connected.
  3. Debouncing: When using buttons or switches, implement debouncing in software or hardware to avoid false readings.
  4. Analog Input Noise: Use capacitors or averaging techniques to reduce noise in analog input readings.

Troubleshooting and FAQs

Common Issues

  1. Input Pin Not Responding:

    • Cause: The pin is not configured as an input.
    • Solution: Use pinMode(pin, INPUT) in the setup() function.
  2. Unstable or Noisy Readings:

    • Cause: Electrical noise or floating input.
    • Solution: Use pull-up/pull-down resistors for digital inputs or capacitors for analog inputs.
  3. Incorrect Analog Readings:

    • Cause: Voltage exceeds the 0–5V range.
    • Solution: Ensure the input voltage is within the recommended range.
  4. Serial Monitor Not Displaying Data:

    • Cause: Serial communication not initialized or incorrect baud rate.
    • Solution: Use Serial.begin(9600) in setup() and ensure the Serial Monitor is set to the same baud rate.

FAQs

  1. Can I use a digital pin as an analog input?

    • No, digital pins can only read HIGH or LOW states. Use analog pins (A0–A5) for reading varying voltage levels.
  2. What happens if I exceed the input voltage range?

    • Exceeding the 0–5V range can damage the pin or the microcontroller. Use a voltage divider or level shifter if higher voltages are expected.
  3. How do I debounce a button in software?

    • Implement a delay after detecting a button press or use a library like Bounce2 to handle debouncing.

By following these guidelines and examples, you can effectively use the Arduino UNO's input nodes in your projects.
