How to Use A4988 Stepper Motor Driver Carrier: Examples, Pinouts, and Specs

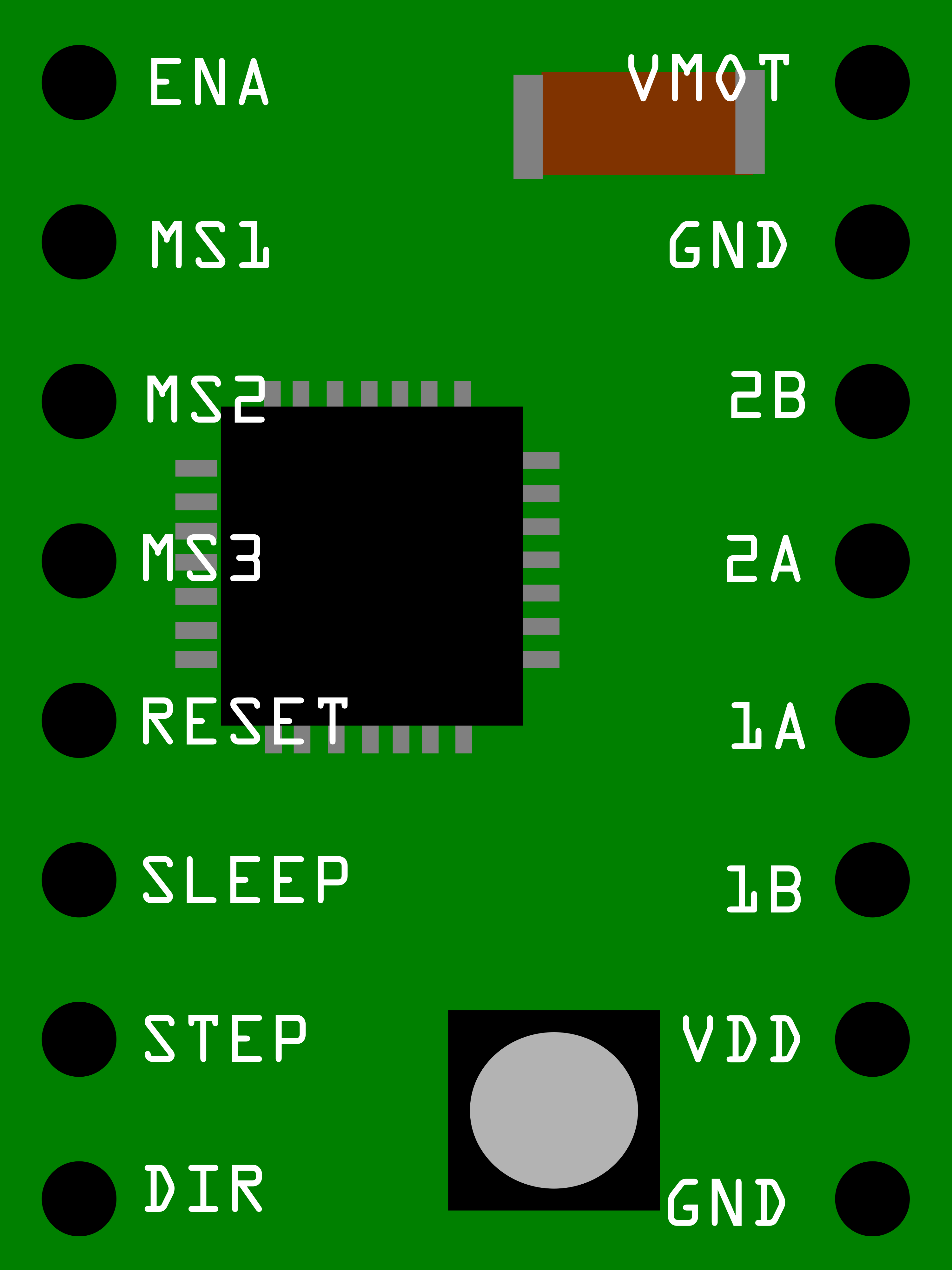

Image of A4988 Stepper Motor Driver Carrier
Cirkit Designer LogoDesign with A4988 Stepper Motor Driver Carrier in Cirkit Designer

Introduction

The A4988 Stepper Motor Driver Carrier is a compact and versatile microstepping driver designed for controlling bipolar stepper motors. It enables precise control of motor position, speed, and torque, making it ideal for applications requiring high accuracy and smooth motion. The A4988 features adjustable current control, over-temperature protection, and a straightforward interface, making it easy to integrate into a wide range of projects.

Explore Projects Built with A4988 Stepper Motor Driver Carrier

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
A4988 Stepper Motor Driver Controlled Bipolar Stepper Motor
Image of idk: A project utilizing A4988 Stepper Motor Driver Carrier in a practical application
This circuit is designed to control a bipolar stepper motor using an A4988 stepper motor driver. The driver interfaces with the motor by connecting its output pins to the motor's coils, allowing precise control of the motor's movement.
Cirkit Designer LogoOpen Project in Cirkit Designer
RFID-Activated Traffic Light Controller with Auditory Feedback Using Arduino Mega
Image of test: A project utilizing A4988 Stepper Motor Driver Carrier in a practical application
This circuit is designed to control two 28BYJ-48 stepper motors using A4988 stepper motor driver carriers, with an Arduino Mega 2560 as the central microcontroller. It includes an RFID-RC522 module for RFID reading, an LCD display for user interface, and a traffic light and piezo speaker for visual and audio signaling. The circuit is powered by a 12V 5A power supply, which is stepped down to 5V for logic level components, and it interfaces with a power outlet for AC to DC conversion.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560-Controlled Stepper Motors with RFID Access and Traffic Light Indication
Image of Copy of test: A project utilizing A4988 Stepper Motor Driver Carrier in a practical application
This circuit controls two 28BYJ-48 stepper motors using A4988 stepper motor driver carriers, interfaced with an Arduino Mega 2560 microcontroller. It features an RFID-RC522 module for RFID reading, a 16x4 LCD display with I2C interface for user interaction, and a piezo speaker for audio feedback. Additionally, there is a traffic light module controlled by the Arduino, and a 48V to 5V converter to step down voltage for the logic levels. The power supply provides 12V to the motor drivers and is connected to a standard power outlet.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Controlled Dual Stepper Motor Driver with Boost Converter and User Input
Image of OpenClino: A project utilizing A4988 Stepper Motor Driver Carrier in a practical application
This is a dual stepper motor control circuit using an Arduino Nano to drive two A4988 stepper motor drivers. It includes a boost converter for voltage regulation, an electrolytic capacitor for stability, and an arcade button for user interaction.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with A4988 Stepper Motor Driver Carrier

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of idk: A project utilizing A4988 Stepper Motor Driver Carrier in a practical application
A4988 Stepper Motor Driver Controlled Bipolar Stepper Motor
This circuit is designed to control a bipolar stepper motor using an A4988 stepper motor driver. The driver interfaces with the motor by connecting its output pins to the motor's coils, allowing precise control of the motor's movement.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of test: A project utilizing A4988 Stepper Motor Driver Carrier in a practical application
RFID-Activated Traffic Light Controller with Auditory Feedback Using Arduino Mega
This circuit is designed to control two 28BYJ-48 stepper motors using A4988 stepper motor driver carriers, with an Arduino Mega 2560 as the central microcontroller. It includes an RFID-RC522 module for RFID reading, an LCD display for user interface, and a traffic light and piezo speaker for visual and audio signaling. The circuit is powered by a 12V 5A power supply, which is stepped down to 5V for logic level components, and it interfaces with a power outlet for AC to DC conversion.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of test: A project utilizing A4988 Stepper Motor Driver Carrier in a practical application
Arduino Mega 2560-Controlled Stepper Motors with RFID Access and Traffic Light Indication
This circuit controls two 28BYJ-48 stepper motors using A4988 stepper motor driver carriers, interfaced with an Arduino Mega 2560 microcontroller. It features an RFID-RC522 module for RFID reading, a 16x4 LCD display with I2C interface for user interaction, and a piezo speaker for audio feedback. Additionally, there is a traffic light module controlled by the Arduino, and a 48V to 5V converter to step down voltage for the logic levels. The power supply provides 12V to the motor drivers and is connected to a standard power outlet.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of OpenClino: A project utilizing A4988 Stepper Motor Driver Carrier in a practical application
Arduino-Controlled Dual Stepper Motor Driver with Boost Converter and User Input
This is a dual stepper motor control circuit using an Arduino Nano to drive two A4988 stepper motor drivers. It includes a boost converter for voltage regulation, an electrolytic capacitor for stability, and an arcade button for user interaction.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • 3D printers
  • CNC machines
  • Robotics
  • Automated machinery
  • Camera sliders and gimbals

Technical Specifications

Key Technical Details

  • Operating Voltage (VMOT): 8 V to 35 V
  • Logic Voltage (VDD): 3.3 V or 5 V
  • Maximum Output Current: 2 A per coil (with sufficient cooling)
  • Microstepping Modes: Full, 1/2, 1/4, 1/8, and 1/16 steps
  • Current Control: Adjustable via onboard potentiometer
  • Protection Features: Over-temperature, over-current, and under-voltage lockout
  • Step Frequency: Up to 500 kHz
  • Dimensions: 20 mm × 15 mm × 11 mm (approx.)

Pin Configuration and Descriptions

The A4988 has 16 pins, which are described in the table below:

Pin Name Type Description
VMOT Power Input Motor power supply (8 V to 35 V). Connect to the stepper motor's power source.
GND Power Ground Ground connection for motor power supply.
VDD Power Input Logic voltage supply (3.3 V or 5 V).
GND Power Ground Ground connection for logic voltage supply.
1A, 1B Motor Output Connect to one coil of the stepper motor.
2A, 2B Motor Output Connect to the other coil of the stepper motor.
STEP Logic Input Controls the step signal. A rising edge advances the motor one step.
DIR Logic Input Sets the motor's direction of rotation.
ENABLE Logic Input Enables or disables the driver (active low).
MS1, MS2, MS3 Logic Input Selects the microstepping mode (see table below).
RESET Logic Input Resets the driver (active low).
SLEEP Logic Input Puts the driver into low-power sleep mode (active low).
REF Analog Input Sets the current limit via an onboard potentiometer.

Microstepping Mode Selection

The microstepping mode is determined by the MS1, MS2, and MS3 pins:

MS1 MS2 MS3 Microstepping Mode
Low Low Low Full Step
High Low Low Half Step
Low High Low Quarter Step
High High Low Eighth Step
High High High Sixteenth Step

Usage Instructions

How to Use the A4988 in a Circuit

  1. Power Connections:

    • Connect VMOT and GND to the motor power supply (8 V to 35 V).
    • Connect VDD and GND to the logic power supply (3.3 V or 5 V).
  2. Motor Connections:

    • Connect the stepper motor's two coils to the 1A, 1B, 2A, and 2B pins.
  3. Control Signals:

    • Connect the STEP and DIR pins to your microcontroller or control circuit.
    • Use the ENABLE pin to enable or disable the driver as needed.
  4. Microstepping Configuration:

    • Set the MS1, MS2, and MS3 pins to configure the desired microstepping mode.
  5. Current Adjustment:

    • Use the onboard potentiometer to set the current limit. Measure the voltage at the REF pin and calculate the current limit using the formula:
      Current Limit = VREF × 2.5

  6. Optional Connections:

    • Connect the RESET and SLEEP pins to control the driver's reset and sleep functions.

Important Considerations

  • Heat Dissipation: The A4988 can get hot during operation. Use a heat sink or active cooling if necessary.
  • Current Limit: Always set the current limit to match your stepper motor's rated current to avoid damage.
  • Decoupling Capacitors: Place a 100 µF capacitor across VMOT and GND to reduce voltage spikes.

Example Code for Arduino UNO

Below is an example of how to control a stepper motor using the A4988 and an Arduino UNO:

// Define control pins
#define STEP_PIN 3  // Connect to the STEP pin of A4988
#define DIR_PIN 4   // Connect to the DIR pin of A4988

void setup() {
  pinMode(STEP_PIN, OUTPUT); // Set STEP pin as output
  pinMode(DIR_PIN, OUTPUT);  // Set DIR pin as output

  digitalWrite(DIR_PIN, HIGH); // Set initial direction (HIGH = clockwise)
}

void loop() {
  // Generate step pulses
  digitalWrite(STEP_PIN, HIGH); // Step pulse HIGH
  delayMicroseconds(500);       // Wait 500 microseconds
  digitalWrite(STEP_PIN, LOW);  // Step pulse LOW
  delayMicroseconds(500);       // Wait 500 microseconds
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Motor Not Moving:

    • Check all connections, especially the motor coils and power supply.
    • Ensure the STEP pin is receiving pulses from the microcontroller.
  2. Driver Overheating:

    • Verify that the current limit is set correctly.
    • Use a heat sink or active cooling to dissipate heat.
  3. Erratic Motor Movement:

    • Check the microstepping mode configuration (MS1, MS2, MS3).
    • Ensure the power supply voltage is stable and within the specified range.
  4. No Response from Driver:

    • Confirm that the ENABLE pin is set to LOW (active state).
    • Verify that the SLEEP pin is HIGH (driver is not in sleep mode).

FAQs

Q: Can I use the A4988 with a unipolar stepper motor?
A: No, the A4988 is designed for bipolar stepper motors only.

Q: How do I calculate the VREF voltage for my motor?
A: Use the formula VREF = Current Limit / 2.5. For example, if your motor's rated current is 1 A, set VREF to 0.4 V.

Q: What happens if I exceed the current limit?
A: The A4988 has over-current protection, but exceeding the limit can cause overheating or damage. Always set the current limit appropriately.

Q: Can I control multiple stepper motors with one A4988?
A: No, each A4988 driver can control only one bipolar stepper motor. Use separate drivers for multiple motors.
