How to Use CMOS High Speed 16-Channel Analog Multiplexer Module: Examples, Pinouts, and Specs

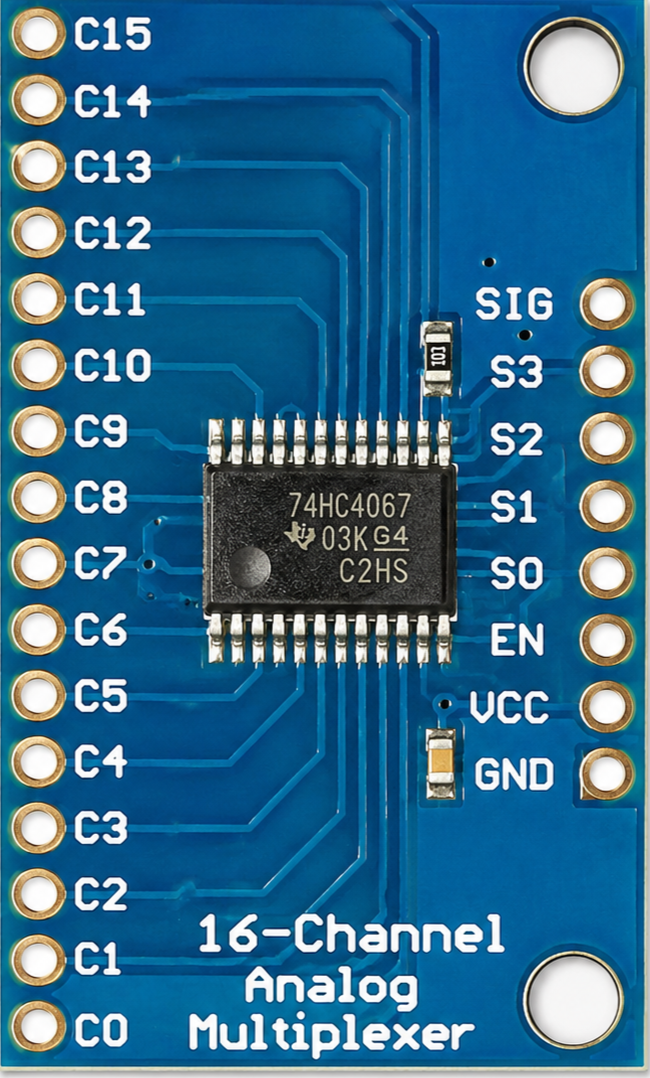

The CD74HC4067 is a high-speed analog multiplexer module manufactured by GENERIC. It is a versatile component that allows the selection of one of 16 input signals to be routed to a single output. Built using CMOS technology, it offers low power consumption and high performance, making it suitable for a wide range of applications.

• Signal routing in data acquisition systems
• Sensor multiplexing in embedded systems
• Audio signal selection and routing
• Analog-to-digital conversion (ADC) channel expansion
• Robotics and automation systems
• Test and measurement equipment

The following table outlines the key technical details of the CD74HC4067:

The CD74HC4067 has 24 pins, with the following configuration:

1. Power Supply: Connect the Vcc pin to a power supply (2V to 6V) and the GND pin to ground.
2. Input Signals: Connect up to 16 analog signals to the S0-S15 pins.
3. Output Signal: The selected input signal will be routed to the COM_OUT pin.
4. Address Selection: Use the S0-S3 pins to select the desired input channel. The binary value on these pins determines the active channel (e.g., 0000 for S0, 0001 for S1, etc.).
5. Enable Pin: Ensure the EN pin is set to LOW to enable the multiplexer. Setting it HIGH disables the module.

• Voltage Levels: Ensure that the input signal voltage does not exceed the supply voltage (Vcc).
• Decoupling Capacitor: Place a 0.1 µF decoupling capacitor near the Vcc pin to reduce noise.
• Unused Inputs: Tie unused input channels to ground to avoid floating inputs.
• Signal Integrity: Minimize the length of signal traces to reduce noise and crosstalk.

The CD74HC4067 can be easily interfaced with an Arduino UNO for channel selection. Below is an example code snippet:

// Define the address select pins
const int S0 = 2;  // Connect to CD74HC4067 pin S0
const int S1 = 3;  // Connect to CD74HC4067 pin S1
const int S2 = 4;  // Connect to CD74HC4067 pin S2
const int S3 = 5;  // Connect to CD74HC4067 pin S3

// Define the enable pin
const int EN = 6;  // Connect to CD74HC4067 pin EN (active LOW)

// Define the analog input pin
const int COM_OUT = A0;  // Connect to CD74HC4067 COM_OUT pin

void setup() {
  // Set address pins and enable pin as outputs
  pinMode(S0, OUTPUT);
  pinMode(S1, OUTPUT);
  pinMode(S2, OUTPUT);
  pinMode(S3, OUTPUT);
  pinMode(EN, OUTPUT);

  // Enable the multiplexer
  digitalWrite(EN, LOW);

  // Initialize serial communication
  Serial.begin(9600);
}

void loop() {
  for (int channel = 0; channel < 16; channel++) {
    // Set the address pins to select the channel
    digitalWrite(S0, channel & 0x01);
    digitalWrite(S1, (channel >> 1) & 0x01);
    digitalWrite(S2, (channel >> 2) & 0x01);
    digitalWrite(S3, (channel >> 3) & 0x01);

    // Read the analog value from the selected channel
    int value = analogRead(COM_OUT);

    // Print the channel number and value
    Serial.print("Channel ");
    Serial.print(channel);
    Serial.print(": ");
    Serial.println(value);

    // Wait for a short delay
    delay(500);
  }
}

1. No Output Signal:

   • Ensure the EN pin is set to LOW to enable the multiplexer.
   • Verify that the address pins (S0-S3) are correctly configured.

2. Incorrect Channel Selection:

   • Double-check the binary values on the address pins.
   • Ensure the Arduino code or external logic is correctly setting the address pins.

3. Signal Distortion:

   • Check for excessive trace lengths or poor grounding.
   • Use a decoupling capacitor near the Vcc pin to reduce noise.

4. High On-Resistance:

   • Verify that the supply voltage (Vcc) is within the recommended range. Lower Vcc values can increase on-resistance.

Q1: Can the CD74HC4067 handle digital signals?
Yes, the CD74HC4067 can route both analog and digital signals, provided the signal voltage is within the supply voltage range (0V to Vcc).

Q2: What happens if the EN pin is left floating?
Leaving the EN pin floating may cause unpredictable behavior. It is recommended to tie the EN pin to a defined logic level (HIGH or LOW).

Q3: Can multiple CD74HC4067 modules be cascaded?
Yes, multiple modules can be cascaded to expand the number of input channels. However, additional logic will be required to manage the enable pins and address selection.

Q4: Is the CD74HC4067 bidirectional?
Yes, the CD74HC4067 is bidirectional, meaning signals can flow in either direction between the selected input and the common output.
