How to Use Raspberry Pi 5: Examples, Pinouts, and Specs

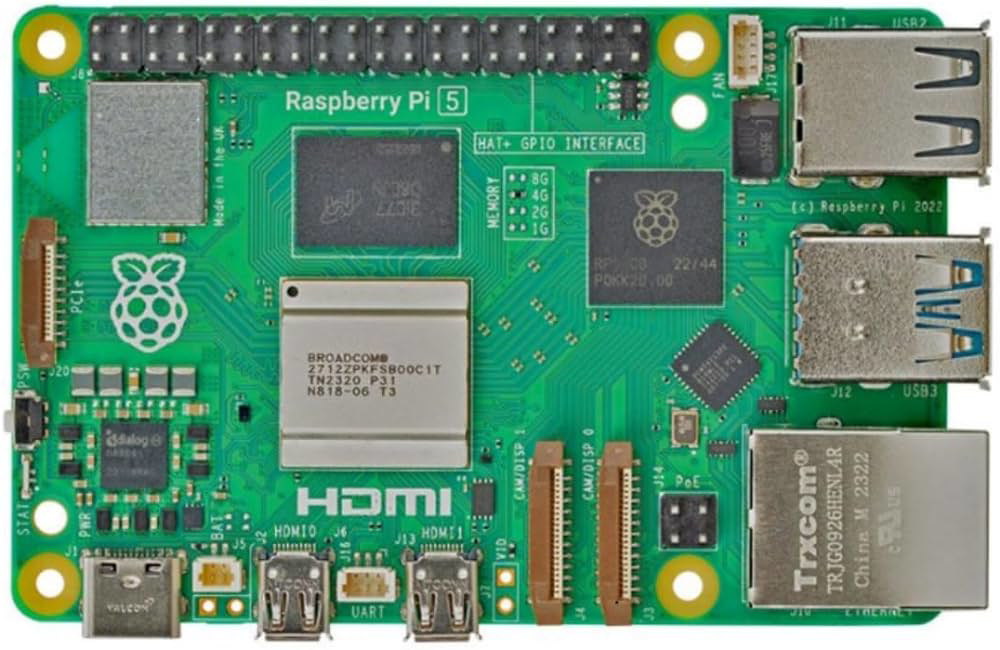

Image of Raspberry Pi 5Design with Raspberry Pi 5 in Cirkit Designer

Introduction

The Raspberry Pi 5, manufactured by Raspberry, is a compact and affordable single-board computer (SBC) designed for a wide range of applications. It is the latest iteration in the Raspberry Pi series, offering significant improvements in processing power, graphics performance, and connectivity. With its versatile design, the Raspberry Pi 5 is ideal for educational purposes, prototyping, IoT projects, media streaming, and hobbyist electronics.

Explore Projects Built with Raspberry Pi 5

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Raspberry Pi 5 Smart Weather Station with GPS and AI Integration: A project utilizing Raspberry Pi 5 in a practical application
Raspberry Pi 5 Smart Weather Station with GPS and AI Integration

This circuit integrates a Raspberry Pi 5 with various peripherals including an 8MP 3D stereo camera, an AI Hat, a BMP388 sensor, a 16x2 I2C LCD, and an Adafruit Ultimate GPS module. The Raspberry Pi serves as the central processing unit, interfacing with the camera for image capture, the AI Hat for AI processing, the BMP388 for environmental sensing, the LCD for display, and the GPS module for location tracking, with a USB Serial TTL for serial communication.

Open Project in Cirkit Designer

Common Applications and Use Cases

Technical Specifications

The Raspberry Pi 5 offers a robust set of features and specifications, making it a powerful tool for various applications.

Key Technical Details

Specification Details
Processor Quad-core ARM Cortex-A76, 2.4 GHz
GPU VideoCore VII, supporting 4K video output at 60 fps
RAM Options 4 GB, 8 GB, or 16 GB LPDDR4X
Storage MicroSD card slot, support for external SSD via USB 3.0
Connectivity Dual-band Wi-Fi 6, Bluetooth 5.2, Gigabit Ethernet
USB Ports 2 × USB 3.0, 2 × USB 2.0
Display Outputs 2 × micro-HDMI ports (4K@60fps support)
GPIO Pins 40-pin GPIO header, backward compatible with previous Raspberry Pi models
Power Supply USB-C, 5V/5A
Operating System Raspberry Pi OS (Linux-based), supports other Linux distributions
Dimensions 85.6 mm × 56.5 mm × 17 mm

Pin Configuration and Descriptions

The Raspberry Pi 5 features a 40-pin GPIO header, which is backward compatible with previous Raspberry Pi models. Below is the pinout configuration:

Pin Number Pin Name Description
1 3.3V Power 3.3V power supply
2 5V Power 5V power supply
3 GPIO 2 (SDA1) I2C Data
4 5V Power 5V power supply
5 GPIO 3 (SCL1) I2C Clock
6 Ground Ground
7 GPIO 4 General-purpose I/O
8 GPIO 14 (TXD) UART Transmit
9 Ground Ground
10 GPIO 15 (RXD) UART Receive
... ... ...
39 Ground Ground
40 GPIO 21 General-purpose I/O

For a complete GPIO pinout diagram, refer to the official Raspberry Pi documentation.

Usage Instructions

How to Use the Raspberry Pi 5 in a Circuit

  1. Powering the Raspberry Pi 5:

    • Use a USB-C power adapter capable of supplying 5V/5A.
    • Ensure the power supply is stable to avoid performance issues.
  2. Connecting Peripherals:

    • Attach a monitor via the micro-HDMI ports.
    • Connect a keyboard and mouse via the USB ports.
    • Insert a microSD card with the Raspberry Pi OS installed.
  3. Using GPIO Pins:

    • Connect external components (e.g., LEDs, sensors) to the GPIO pins.
    • Use a breadboard and jumper wires for prototyping.
  4. Networking:

    • Connect to the internet via Wi-Fi 6 or Gigabit Ethernet.
    • Use Bluetooth 5.2 for wireless peripherals or data transfer.

Important Considerations and Best Practices

Example: Blinking an LED with GPIO and Arduino IDE

The Raspberry Pi 5 can be programmed using Python or other languages. Below is an example of controlling an LED using Python:

# Import the GPIO library
import RPi.GPIO as GPIO
import time

# Set the GPIO mode to BCM (Broadcom pin numbering)
GPIO.setmode(GPIO.BCM)

# Define the GPIO pin connected to the LED
LED_PIN = 18

# Set up the LED pin as an output
GPIO.setup(LED_PIN, GPIO.OUT)

# Blink the LED in a loop
try:
    while True:
        GPIO.output(LED_PIN, GPIO.HIGH)  # Turn the LED on
        time.sleep(1)                   # Wait for 1 second
        GPIO.output(LED_PIN, GPIO.LOW)  # Turn the LED off
        time.sleep(1)                   # Wait for 1 second
except KeyboardInterrupt:
    # Clean up GPIO settings on exit
    GPIO.cleanup()

Troubleshooting and FAQs

Common Issues and Solutions

  1. The Raspberry Pi 5 does not boot:

    • Ensure the microSD card is properly inserted and contains a valid OS image.
    • Check the power supply for sufficient voltage and current.
  2. Overheating:

    • Use a heatsink or fan to cool the board.
    • Avoid placing the Raspberry Pi 5 in an enclosed space without ventilation.
  3. No display output:

    • Verify the micro-HDMI cable is securely connected.
    • Ensure the monitor is set to the correct input source.
  4. GPIO pins not working:

    • Double-check the pin connections and ensure the correct pin numbering is used in the code.
    • Verify that the GPIO library is installed and up to date.

FAQs

For additional support, refer to the official Raspberry Pi documentation or community forums.
