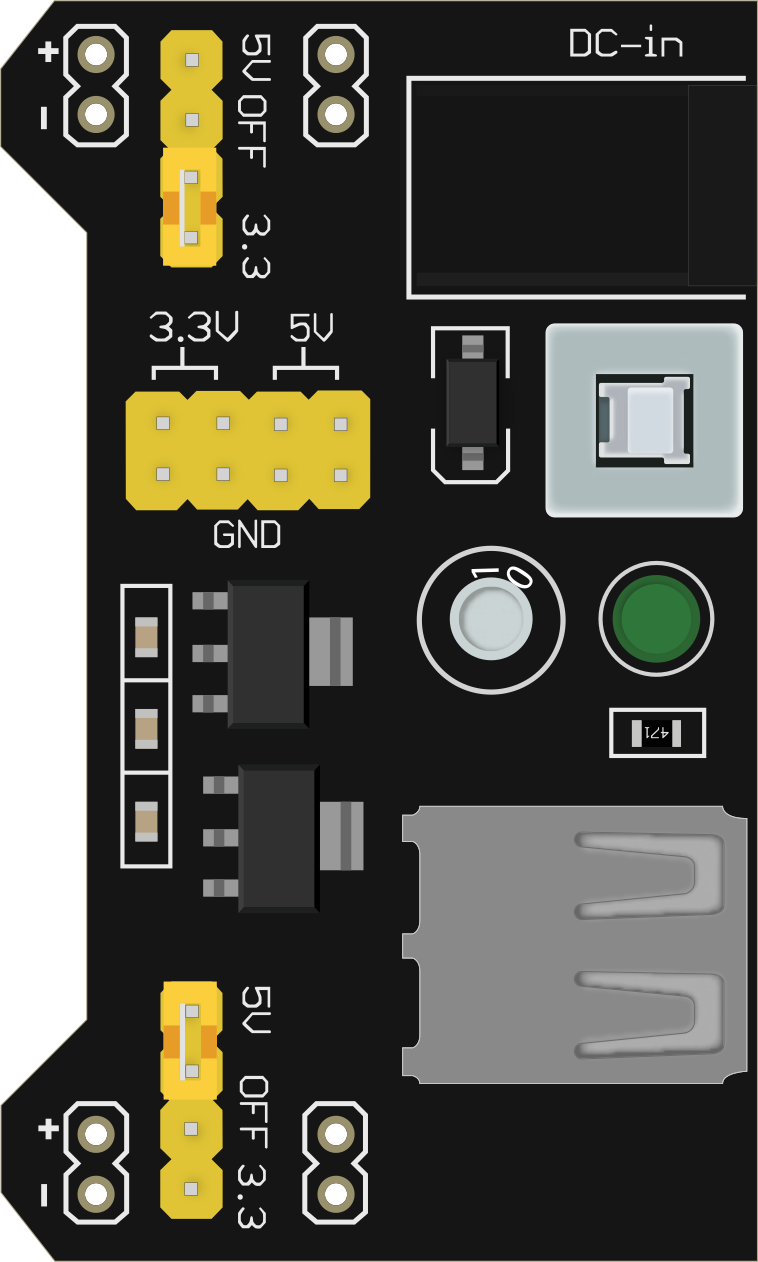

Image of MB102 Breadboard Power Supply Module 3.3V/5V - Direct V output
Cirkit Designer LogoDesign with MB102 Breadboard Power Supply Module 3.3V/5V - Direct V output in Cirkit Designer

Introduction

The MB102 Breadboard Power Supply Module by CorpCo is a compact and versatile power supply solution designed specifically for breadboard-based prototyping. It provides stable output voltages of 3.3V and 5V, making it ideal for powering a wide range of electronic components and microcontroller projects. The module connects directly to standard breadboards, simplifying the process of powering circuits without the need for external wiring or bulky power supplies.
