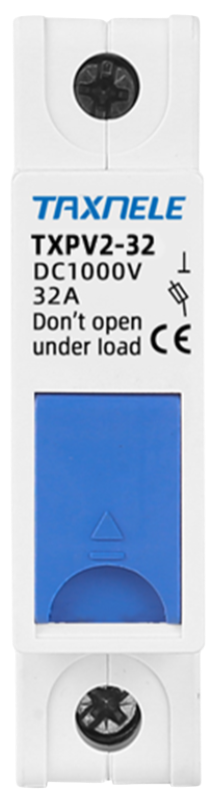

Image of DC Fuse up to 32A
Cirkit Designer LogoDesign with DC Fuse up to 32A in Cirkit Designer

Introduction

A DC fuse is a protective device designed to interrupt the flow of direct current (DC) in a circuit when the current exceeds a specified limit. This component is typically rated up to 32 amperes and is essential for safeguarding electronic components and wiring from overcurrent conditions, short circuits, or potential fire hazards.

Explore Projects Built with DC Fuse up to 32A

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
12V UPS System with Dual 18650 Li-ion Battery Backup and Voltage Regulation
Image of Power supply: A project utilizing DC Fuse up to 32A in a practical application
This circuit is designed to provide an uninterruptible power supply (UPS) system with a 12V DC output. It includes a 12V 5A power supply connected to an AC source through a toggle switch, which charges a pair of 18650 Li-ion batteries via a voltage regulator (XL4016). The UPS module ensures a continuous power supply to the load by switching between the power supply and the battery bank.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Dual Source Automatic Transfer Switch System
Image of Ats SCHEMATIC: A project utilizing DC Fuse up to 32A in a practical application
This circuit is designed to manage power from two sources: a solar panel and a 12V battery, with a dual power automatic transfer switch to select between them. The solar panel and battery are connected to a charge controller, which regulates the charging process and provides power to a load through a power inverter. Safety is ensured with the use of fuses and circuit breakers, and the power inverter converts DC to AC for use with standard 220V appliances.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Battery Backup System with Automatic Transfer Switch
Image of Copy of Copy of Solar Circuit 380W: A project utilizing DC Fuse up to 32A in a practical application
This circuit is a solar power system designed to charge a 12V battery using a 380W solar panel, managed by a solar charge controller. The system includes fuses for protection, a power inverter to convert DC to AC, and an automatic transfer switch (ATS) to manage power distribution to an AC circuit breaker and a 5000BTU AC unit.
Cirkit Designer LogoOpen Project in Cirkit Designer
USB Power Supply with Overcurrent Protection
Image of USB Charging port: A project utilizing DC Fuse up to 32A in a practical application
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DC Fuse up to 32A

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Power supply: A project utilizing DC Fuse up to 32A in a practical application
12V UPS System with Dual 18650 Li-ion Battery Backup and Voltage Regulation
This circuit is designed to provide an uninterruptible power supply (UPS) system with a 12V DC output. It includes a 12V 5A power supply connected to an AC source through a toggle switch, which charges a pair of 18650 Li-ion batteries via a voltage regulator (XL4016). The UPS module ensures a continuous power supply to the load by switching between the power supply and the battery bank.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Ats SCHEMATIC: A project utilizing DC Fuse up to 32A in a practical application
Solar-Powered Dual Source Automatic Transfer Switch System
This circuit is designed to manage power from two sources: a solar panel and a 12V battery, with a dual power automatic transfer switch to select between them. The solar panel and battery are connected to a charge controller, which regulates the charging process and provides power to a load through a power inverter. Safety is ensured with the use of fuses and circuit breakers, and the power inverter converts DC to AC for use with standard 220V appliances.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of Copy of Solar Circuit 380W: A project utilizing DC Fuse up to 32A in a practical application
Solar-Powered Battery Backup System with Automatic Transfer Switch
This circuit is a solar power system designed to charge a 12V battery using a 380W solar panel, managed by a solar charge controller. The system includes fuses for protection, a power inverter to convert DC to AC, and an automatic transfer switch (ATS) to manage power distribution to an AC circuit breaker and a 5000BTU AC unit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of USB Charging port: A project utilizing DC Fuse up to 32A in a practical application
USB Power Supply with Overcurrent Protection
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Automotive systems (e.g., car batteries, electric vehicles)
  • Solar power systems and inverters
  • Industrial machinery and control panels
  • Battery protection in portable devices
  • DC power distribution systems

Technical Specifications

Below are the key technical details for a DC fuse rated up to 32A:

Parameter Value
Rated Current (In) Up to 32A
Rated Voltage (Vn) Typically 12V, 24V, 48V, or higher
Breaking Capacity Varies (e.g., 1kA, 10kA)
Fuse Type Cartridge, blade, or cylindrical
Response Time Fast-blow or slow-blow
Material Ceramic, glass, or plastic body
Operating Temperature -40°C to +85°C (typical)
Mounting Style Panel-mounted, inline, or PCB

Pin Configuration and Descriptions

DC fuses do not have traditional pins like ICs but instead feature terminals or leads for connection. Below is a table describing the typical terminal configuration:

Terminal Description
Terminal 1 Input terminal (connects to power source)
Terminal 2 Output terminal (connects to load)

Usage Instructions

How to Use the Component in a Circuit

  1. Select the Appropriate Fuse: Choose a DC fuse with a current rating slightly higher than the normal operating current of your circuit but lower than the maximum current the wiring or components can handle.
  2. Determine the Voltage Rating: Ensure the fuse's voltage rating matches or exceeds the circuit's operating voltage.
  3. Install the Fuse:
    • For inline fuses, connect the fuse holder in series with the circuit.
    • For PCB-mounted fuses, solder the fuse into the designated slots on the PCB.
    • For panel-mounted fuses, secure the fuse holder to the panel and connect the terminals.
  4. Test the Circuit: After installation, power on the circuit and verify that the fuse operates correctly under normal conditions.

Important Considerations and Best Practices

  • Avoid Overrating: Using a fuse with a current rating too high for the circuit may fail to protect the components during an overcurrent event.
  • Check the Response Time: Use fast-blow fuses for sensitive electronics and slow-blow fuses for circuits with inrush currents (e.g., motors).
  • Inspect Regularly: Periodically check the fuse for signs of wear, damage, or corrosion.
  • Use Proper Holders: Ensure the fuse holder is compatible with the fuse type and securely holds the fuse in place.

Example: Using a DC Fuse with an Arduino UNO

When powering an Arduino UNO from a DC power source, a DC fuse can protect the board from overcurrent. Below is an example circuit and code:

Circuit Setup

  • Connect the positive terminal of the DC power source to one terminal of the fuse.
  • Connect the other terminal of the fuse to the VIN pin of the Arduino UNO.
  • Connect the negative terminal of the power source to the GND pin of the Arduino UNO.

Sample Code

// Example code for Arduino UNO to demonstrate basic functionality
// This code blinks an LED connected to pin 13

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output for the LED
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Note: The fuse in this setup protects the Arduino UNO from overcurrent caused by external devices or wiring faults.

Troubleshooting and FAQs

Common Issues Users Might Face

  1. Fuse Blows Frequently:

    • Cause: The fuse rating is too low for the circuit's normal operating current.
    • Solution: Replace the fuse with one that has a slightly higher current rating.
  2. Fuse Does Not Blow During Overcurrent:

    • Cause: The fuse rating is too high or the response time is too slow.
    • Solution: Use a fuse with a lower current rating or a faster response time.
  3. Fuse Holder Overheats:

    • Cause: Poor connection or undersized holder.
    • Solution: Ensure the holder is rated for the fuse's current and voltage.
  4. Corrosion on Fuse Terminals:

    • Cause: Exposure to moisture or poor-quality materials.
    • Solution: Use corrosion-resistant fuses and holders, and keep the circuit dry.

FAQs

Q1: Can I use an AC fuse in a DC circuit?
A1: No, AC and DC fuses are designed differently. DC fuses are specifically designed to interrupt the continuous current flow in DC circuits, which is more challenging than in AC circuits.

Q2: How do I know if a fuse is blown?
A2: Visually inspect the fuse for a broken filament (in glass fuses) or use a multimeter to check for continuity.

Q3: What happens if I bypass the fuse?
A3: Bypassing the fuse removes the circuit's overcurrent protection, increasing the risk of damage to components, wiring, or even fire.

Q4: Can I use a higher-rated fuse for safety?
A4: No, using a higher-rated fuse may prevent it from blowing during overcurrent, defeating its purpose as a protective device. Always use the correct rating for your circuit.
