How to Use NEOPIXEL WS2812 45 LED RING : Examples, Pinouts, and Specs

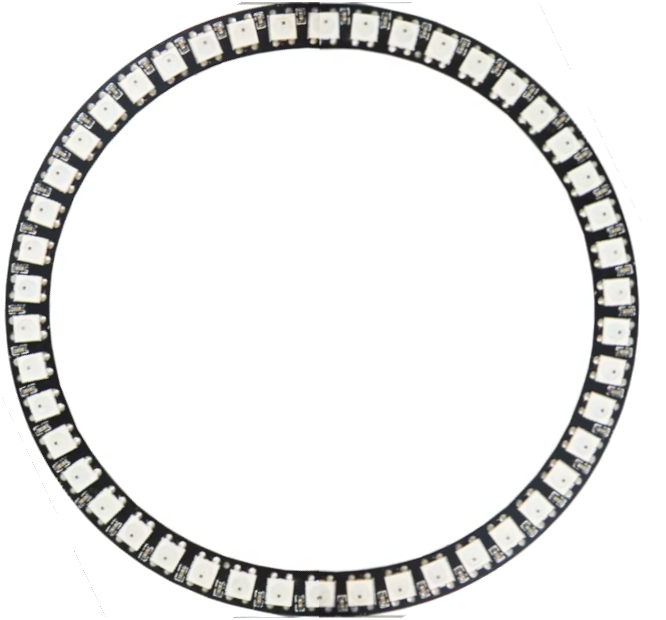

The NEOPIXEL WS2812 45 LED Ring is a circular LED module featuring 45 individually addressable RGB LEDs. Each LED is based on the WS2812 chipset, which integrates a control circuit and RGB LED into a single package. This component allows for vibrant, customizable lighting effects with precise control over color and brightness for each LED.

• Decorative lighting and art installations
• Wearable electronics
• Interactive displays and signage
• Robotics and drones
• Mood lighting and ambient effects
• Prototyping and DIY electronics projects

The NEOPIXEL WS2812 45 LED Ring is designed for ease of use and high performance. Below are its key technical details:

The NEOPIXEL WS2812 45 LED Ring has three main pins for operation. These pins are typically labeled on the PCB.

Note: Some LED rings may also have a DOUT pin for chaining multiple rings together. This pin outputs the data signal to the next ring.

1. Power Supply: Connect the VCC pin to a 5V DC power source and the GND pin to ground. Ensure the power supply can handle the current requirements (up to 2.7A at full brightness for all 45 LEDs).
2. Data Signal: Connect the DIN pin to a microcontroller's digital output pin (e.g., an Arduino UNO). Use a resistor (330–470Ω) in series with the data line to protect the LEDs.
3. Capacitor: Place a 1000µF capacitor across VCC and GND to stabilize the power supply and prevent voltage spikes.
4. Programming: Use a library like Adafruit NeoPixel to control the LEDs.

Below is an example code snippet to control the NEOPIXEL WS2812 45 LED Ring using the Adafruit NeoPixel library.

#include <Adafruit_NeoPixel.h>

// Define the pin connected to the DIN pin of the LED ring
#define LED_PIN 6

// Define the number of LEDs in the ring
#define NUM_LEDS 45

// Create a NeoPixel object
Adafruit_NeoPixel ring = Adafruit_NeoPixel(NUM_LEDS, LED_PIN, NEO_GRB + NEO_KHZ800);

void setup() {
  ring.begin(); // Initialize the NeoPixel library
  ring.show();  // Turn off all LEDs initially
}

void loop() {
  // Example: Cycle through colors on the LED ring
  for (int i = 0; i < NUM_LEDS; i++) {
    ring.setPixelColor(i, ring.Color(255, 0, 0)); // Set LED to red
    ring.show(); // Update the LED ring
    delay(50);   // Wait 50ms before lighting the next LED
  }
  delay(1000); // Pause for 1 second before clearing the ring

  ring.clear(); // Turn off all LEDs
  ring.show();  // Update the LED ring
  delay(1000);  // Pause for 1 second before restarting
}

• Power Supply: Use a regulated 5V power supply capable of providing sufficient current for all LEDs.
• Data Line: Keep the data line as short as possible to avoid signal degradation. For longer distances, use a level shifter to ensure a 5V data signal.
• Heat Management: Avoid running all LEDs at full brightness for extended periods to prevent overheating.
• Chaining: When chaining multiple rings, connect the DOUT pin of one ring to the DIN pin of the next.

1. LEDs Not Lighting Up

   • Cause: Incorrect wiring or insufficient power supply.
   • Solution: Double-check connections, ensure the power supply is 5V, and verify the ground is shared with the microcontroller.

2. Flickering or Erratic Behavior

   • Cause: Signal degradation or noise on the data line.
   • Solution: Add a 330–470Ω resistor in series with the data line and ensure the data line is short. Use a level shifter if the microcontroller operates at 3.3V.

3. Only Some LEDs Work

   • Cause: Faulty LED or incorrect data signal.
   • Solution: Check the data signal and ensure the first LED is functioning properly. If the first LED is damaged, the rest of the chain will not work.

4. Colors Are Incorrect

   • Cause: Incorrect color order in the code.
   • Solution: Verify the color order (e.g., NEO_GRB or NEO_RGB) in the NeoPixel library initialization.

Q: Can I power the LED ring directly from an Arduino UNO?
A: No, the Arduino UNO cannot supply enough current for all 45 LEDs. Use an external 5V power supply.

Q: How do I chain multiple LED rings together?
A: Connect the DOUT pin of the first ring to the DIN pin of the next ring. Ensure all rings share the same VCC and GND.

Q: Can I control the LED ring with a 3.3V microcontroller?
A: Yes, but you may need a level shifter to boost the data signal to 5V for reliable operation.

Q: What is the maximum number of LEDs I can control?
A: Theoretically, you can control thousands of LEDs, but memory and timing constraints of your microcontroller may limit this.

By following this documentation, you can effectively use the NEOPIXEL WS2812 45 LED Ring in your projects for stunning lighting effects and displays.
