How to Use Push button: Examples, Pinouts, and Specs

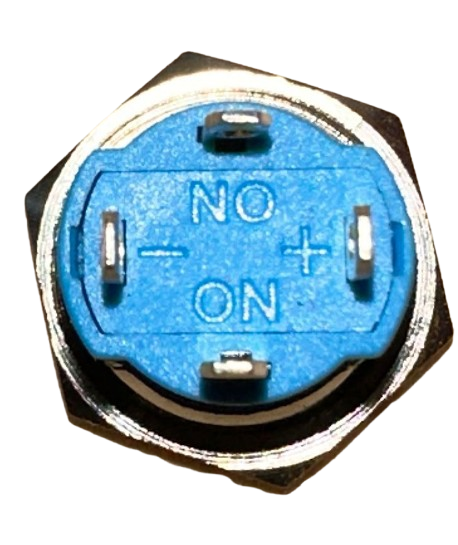

The UTBM PushButton1 is a momentary switch designed to complete an electrical circuit when pressed. This versatile component is widely used for user input in electronic devices, enabling control over various operations. When the button is released, the circuit is broken, making it ideal for applications requiring temporary activation.

• User input for microcontroller-based projects (e.g., Arduino, Raspberry Pi)
• Reset or power buttons in electronic devices
• Control panels for appliances and machinery
• Prototyping and testing circuits
• Interactive projects such as games or toys

The following table outlines the key technical details of the UTBM PushButton1:

The UTBM PushButton1 has four pins, arranged in a square configuration. The following table describes the pin functionality:

Note: Pins 1 and 3 are internally connected, as are pins 2 and 4. You can use either pair for your circuit.

1. Connect the Pins:

   • Connect one terminal (e.g., Pin 1 or Pin 3) to the input voltage or signal source.
   • Connect the other terminal (e.g., Pin 2 or Pin 4) to the load or microcontroller input pin.
   • Optionally, use a pull-down resistor (e.g., 10kΩ) to ensure the circuit remains in a known state when the button is not pressed.

2. Debounce the Button:

   • Mechanical switches like the PushButton1 may produce noise or "bouncing" when pressed or released. Use a capacitor (e.g., 0.1µF) or software debounce techniques to eliminate false signals.

3. Test the Circuit:

   • Verify the button's functionality by pressing it and observing the circuit's response.

• Voltage and Current Limits: Ensure the operating voltage and current do not exceed the specified ratings (12V and 50mA).
• Pull-Down Resistor: Always use a pull-down resistor to prevent floating input states.
• Debouncing: Implement hardware or software debouncing to ensure reliable operation.
• Mounting: Secure the button on a breadboard or PCB for stable connections.

Below is an example of how to use the UTBM PushButton1 with an Arduino UNO to toggle an LED:

// Define pin connections
const int buttonPin = 2;  // Push button connected to digital pin 2
const int ledPin = 13;    // LED connected to digital pin 13

// Variable to store button state
int buttonState = 0;

void setup() {
  pinMode(buttonPin, INPUT);  // Set button pin as input
  pinMode(ledPin, OUTPUT);    // Set LED pin as output
}

void loop() {
  // Read the state of the push button
  buttonState = digitalRead(buttonPin);

  // If the button is pressed, turn on the LED
  if (buttonState == HIGH) {
    digitalWrite(ledPin, HIGH);  // Turn on LED
  } else {
    digitalWrite(ledPin, LOW);   // Turn off LED
  }
}

Note: Use a 10kΩ pull-down resistor on the button pin to ensure stable input readings.

1. Button Not Responding:

   • Cause: Loose connections or incorrect wiring.
   • Solution: Verify all connections and ensure the button is properly seated in the breadboard or PCB.

2. Button Produces Erratic Behavior:

   • Cause: Switch bouncing.
   • Solution: Add a capacitor for hardware debouncing or implement software debounce logic.

3. Microcontroller Reads Incorrect States:

   • Cause: Floating input pin.
   • Solution: Use a pull-down resistor to stabilize the input pin.

4. Button Fails to Complete the Circuit:

   • Cause: Exceeding the current or voltage rating.
   • Solution: Ensure the circuit operates within the specified voltage and current limits.

Q1: Can I use the PushButton1 with a 5V circuit?
A1: Yes, the PushButton1 is compatible with 5V circuits, as it supports an operating voltage range of 3.3V to 12V.

Q2: Do I need to use all four pins?
A2: No, you only need to use one pair of pins (e.g., Pins 1 and 2). The other pair is optional and can be used for mechanical stability.

Q3: How do I debounce the button in software?
A3: You can use a delay or a state-checking algorithm in your code to filter out noise caused by bouncing. For example, wait 10-50ms after detecting a button press before registering the input.

Q4: Can I use the PushButton1 in high-power circuits?
A4: No, the PushButton1 is rated for a maximum current of 50mA. For high-power applications, use a relay or transistor to handle the load.

By following this documentation, you can effectively integrate the UTBM PushButton1 into your projects and troubleshoot any issues that arise.
