How to Use ADAPTO 5 VOLT: Examples, Pinouts, and Specs

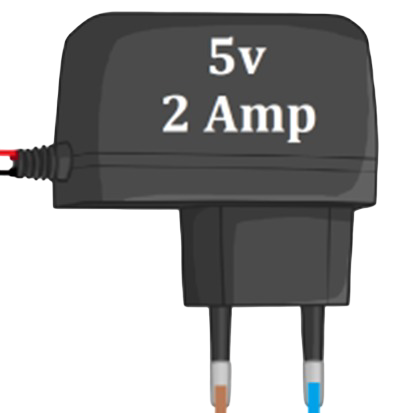

The ADAPTO 5 VOLT is a reliable power adapter designed to convert standard AC voltage (100-240V) into a stable 5V DC output. This component is widely used to power a variety of electronic devices, including microcontrollers, sensors, and small appliances. Its compact design and consistent performance make it an essential tool for hobbyists, engineers, and professionals working on low-power electronic projects.

• Powering microcontroller boards such as Arduino, Raspberry Pi, and ESP32.
• Supplying power to USB-powered devices like LED strips, small fans, and portable speakers.
• Providing a stable 5V DC source for prototyping and testing circuits.
• Charging devices that require a 5V input.

The ADAPTO 5 VOLT is designed to meet the needs of low-power electronic devices. Below are its key technical details:

The ADAPTO 5 VOLT typically has two main connectors:

1. Connect the AC Input: Plug the adapter into a standard AC power outlet (100-240V).
2. Connect the DC Output: Use the appropriate connector (USB Type-A or barrel jack) to connect the adapter to your device or circuit.
3. Verify Polarity: Ensure that the positive (+) and ground (-) terminals of the adapter match the polarity requirements of your device.
4. Power On: Once connected, the adapter will provide a stable 5V DC output to your device.

• Check Current Requirements: Ensure that the total current draw of your device(s) does not exceed the adapter's maximum output current of 2A.
• Avoid Overloading: Overloading the adapter may trigger its protection features or cause it to overheat.
• Use Proper Connectors: If your device uses a barrel jack, ensure the connector size matches the adapter's output jack.
• Ventilation: Avoid using the adapter in enclosed or poorly ventilated spaces to prevent overheating.
• Arduino UNO Example: The ADAPTO 5 VOLT can be used to power an Arduino UNO via its barrel jack or USB port. Below is an example of how to use it with an Arduino UNO:

// Example: Blinking an LED using Arduino UNO powered by ADAPTO 5 VOLT

// Pin 13 is connected to the onboard LED
const int ledPin = 13;

void setup() {
  pinMode(ledPin, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

• When powering the Arduino UNO via the barrel jack, ensure the adapter's output voltage is 5V DC.
• If using the USB port, the adapter should have a USB Type-A connector.

1. No Output Voltage

   • Cause: The adapter is not properly connected to the AC power source.
   • Solution: Check the AC input connection and ensure the power outlet is functional.

2. Device Not Powering On

   • Cause: The device's current requirements exceed the adapter's maximum output current.
   • Solution: Verify the current draw of your device and ensure it is within the 2A limit.

3. Adapter Overheating

   • Cause: Prolonged use at maximum load or poor ventilation.
   • Solution: Reduce the load on the adapter and ensure it is used in a well-ventilated area.

4. Intermittent Power

   • Cause: Loose connections or damaged cables.
   • Solution: Inspect the cables and connectors for damage and ensure all connections are secure.

Q: Can I use the ADAPTO 5 VOLT to charge my smartphone?
A: Yes, if your smartphone supports 5V charging and the adapter has a USB Type-A output, it can be used. However, ensure the current requirements of your smartphone do not exceed 2A.

Q: Is the ADAPTO 5 VOLT suitable for outdoor use?
A: No, the adapter is not designed for outdoor use. It should be used in dry, indoor environments only.

Q: What happens if I connect a device that requires more than 2A?
A: The adapter's overcurrent protection will activate, and it will stop supplying power to prevent damage.

Q: Can I use this adapter with a Raspberry Pi?
A: Yes, the ADAPTO 5 VOLT is compatible with Raspberry Pi models that require a 5V input, provided the current draw does not exceed 2A.
