How to Use Bluetooth SMD Module: Examples, Pinouts, and Specs

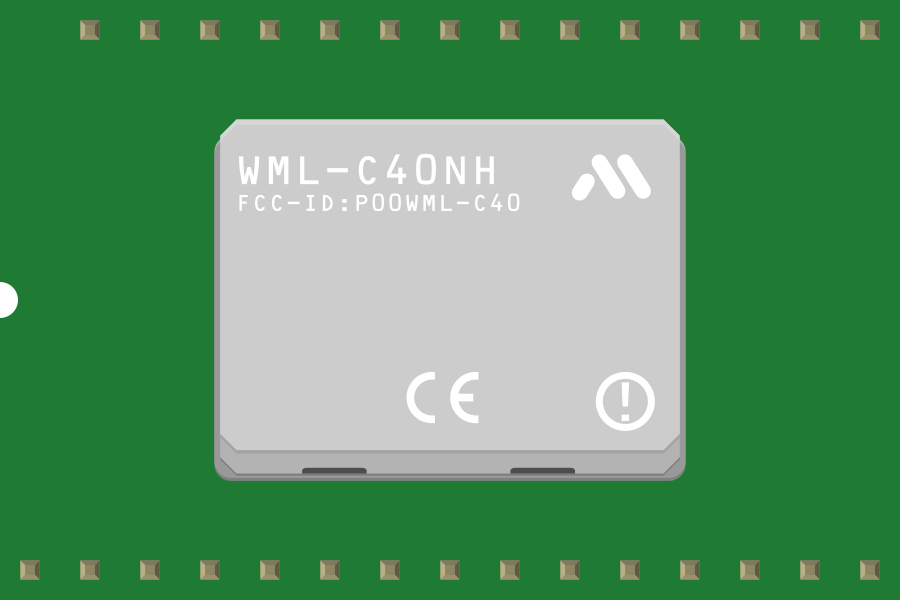

The Bluetooth SMD (Surface-Mount Device) Module is a compact electronic component designed to enable wireless communication over Bluetooth technology. It allows devices to connect and exchange data seamlessly without the need for physical cables. These modules are widely used in applications requiring short-range wireless communication, such as IoT devices, wearable technology, home automation systems, and wireless audio systems.

Common applications and use cases:

• Wireless data transmission between microcontrollers and smartphones
• IoT devices for smart home automation
• Bluetooth-enabled audio systems
• Wearable devices like fitness trackers
• Robotics and remote-controlled systems

Below are the key technical details of the Bluetooth SMD Module:

The Bluetooth SMD Module typically has the following pin configuration:

Note: Pin configurations may vary slightly depending on the specific module. Always refer to the manufacturer's datasheet for exact details.

1. Power the Module: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
2. Connect UART Pins:
   • Connect the TXD pin of the module to the RX pin of your microcontroller.
   • Connect the RXD pin of the module to the TX pin of your microcontroller.
3. Enable the Module: Use the EN/KEY pin to toggle between AT command mode and normal operation mode.
4. Pairing: Once powered, the module will broadcast its Bluetooth signal. Pair it with a Bluetooth-enabled device (e.g., smartphone or PC).
5. Data Transmission: Use UART communication to send and receive data wirelessly.

• Voltage Levels: Ensure the module operates within its specified voltage range (3.3V - 5V). Use a voltage regulator if necessary.
• Signal Interference: Avoid placing the module near high-frequency components or metal enclosures that may interfere with the Bluetooth signal.
• Baud Rate: The default baud rate for most modules is 9600 bps. Configure your microcontroller to match this baud rate.
• AT Commands: Use AT commands to configure the module (e.g., change the name, baud rate, or pairing password).

Below is an example of how to use the Bluetooth SMD Module with an Arduino UNO:

• VCC → 5V on Arduino
• GND → GND on Arduino
• TXD → Pin 10 on Arduino (via voltage divider if needed)
• RXD → Pin 11 on Arduino

#include <SoftwareSerial.h>

// Create a software serial object to communicate with the Bluetooth module
SoftwareSerial bluetooth(10, 11); // RX, TX

void setup() {
  // Initialize serial communication with the Bluetooth module
  bluetooth.begin(9600); // Default baud rate for most Bluetooth modules
  Serial.begin(9600);    // Serial monitor for debugging

  Serial.println("Bluetooth SMD Module Test");
  bluetooth.println("Hello from Arduino!"); // Send a message to the paired device
}

void loop() {
  // Check if data is available from the Bluetooth module
  if (bluetooth.available()) {
    char data = bluetooth.read(); // Read the incoming data
    Serial.print("Received: ");
    Serial.println(data);         // Print the received data to the Serial Monitor
  }

  // Check if data is available from the Serial Monitor
  if (Serial.available()) {
    char data = Serial.read();    // Read the incoming data
    bluetooth.write(data);        // Send the data to the Bluetooth module
  }
}

Note: Use a voltage divider on the TXD pin of the Arduino to step down the 5V signal to 3.3V if the module operates at 3.3V logic levels.

1. Module Not Powering On:

   • Ensure the VCC and GND pins are properly connected.
   • Verify the power supply voltage is within the specified range (3.3V - 5V).

2. Unable to Pair with Device:

   • Check if the module is in pairing mode (usually indicated by a blinking LED).
   • Ensure the Bluetooth device is within range (10 meters or less).
   • Verify the pairing password (default is often 1234 or 0000).

3. No Data Transmission:

   • Confirm the UART connections (TXD and RXD) are correct.
   • Ensure the baud rate of the microcontroller matches the module's baud rate.
   • Check for loose or faulty connections.

4. AT Commands Not Working:

   • Ensure the module is in AT command mode (use the EN/KEY pin if required).
   • Use a serial terminal software to send AT commands and verify responses.

Q: Can the module operate at 5V logic levels?
A: Some modules support 5V logic levels, but others require 3.3V. Check the datasheet for your specific module. Use a voltage divider or level shifter if needed.

Q: What is the maximum range of the module?
A: The typical range is up to 10 meters, but this may vary depending on environmental factors like obstacles and interference.

Q: How do I reset the module to factory settings?
A: Send the AT+ORGL command in AT command mode to reset the module to its default settings.

Q: Can I use this module for audio transmission?
A: Most Bluetooth SMD modules are designed for data transmission. For audio, use a module specifically designed for Bluetooth audio (e.g., A2DP support).

By following this documentation, you can effectively integrate and troubleshoot the Bluetooth SMD Module in your projects.
