How to Use Buck Converter 24/5v: Examples, Pinouts, and Specs

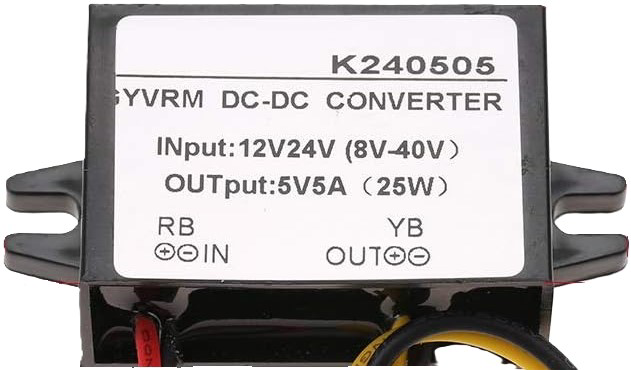

Image of Buck Converter 24/5v
Cirkit Designer LogoDesign with Buck Converter 24/5v in Cirkit Designer

Introduction

A buck converter is a DC-DC power converter designed to step down voltage from a higher input level to a lower output level while maintaining high efficiency. The Buck Converter 24/5V specifically reduces a 24V input to a stable 5V output, making it ideal for powering low-voltage devices from higher-voltage sources. Its compact size and high efficiency make it a popular choice in power supply applications.

Explore Projects Built with Buck Converter 24/5v

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered UPS with Step-Down Buck Converter and BMS
Image of Mini ups: A project utilizing Buck Converter 24/5v in a practical application
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing Buck Converter 24/5v in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered DC Generator with XL4015 Buck Converter
Image of conveyor: A project utilizing Buck Converter 24/5v in a practical application
This circuit consists of a 12V battery connected to a rocker switch, which controls the input to an XL4015 DC Buck Step-down converter. The converter steps down the voltage to power a DC generator, with the generator's output connected back to the converter to form a feedback loop.
Cirkit Designer LogoOpen Project in Cirkit Designer
Dual Motor Control Circuit with Directional Switching and Voltage Regulation
Image of Pencuci Kipas: A project utilizing Buck Converter 24/5v in a practical application
This circuit features a 12V battery connected through a rocker switch to two buck converters, one of which steps down the voltage to power two DC mini metal gear motors, and the other is connected to a directional switch that controls a third DC mini metal gear motor. The XL4015 5A DC Buck Step-down converter's output is connected to two motors, allowing them to run at a reduced voltage, while the other buck converter's output is routed through a directional switch to control the direction of the third motor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Buck Converter 24/5v

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Mini ups: A project utilizing Buck Converter 24/5v in a practical application
Battery-Powered UPS with Step-Down Buck Converter and BMS
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Subramanyak_Power_Circuit: A project utilizing Buck Converter 24/5v in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of conveyor: A project utilizing Buck Converter 24/5v in a practical application
Battery-Powered DC Generator with XL4015 Buck Converter
This circuit consists of a 12V battery connected to a rocker switch, which controls the input to an XL4015 DC Buck Step-down converter. The converter steps down the voltage to power a DC generator, with the generator's output connected back to the converter to form a feedback loop.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Pencuci Kipas: A project utilizing Buck Converter 24/5v in a practical application
Dual Motor Control Circuit with Directional Switching and Voltage Regulation
This circuit features a 12V battery connected through a rocker switch to two buck converters, one of which steps down the voltage to power two DC mini metal gear motors, and the other is connected to a directional switch that controls a third DC mini metal gear motor. The XL4015 5A DC Buck Step-down converter's output is connected to two motors, allowing them to run at a reduced voltage, while the other buck converter's output is routed through a directional switch to control the direction of the third motor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Powering microcontrollers, sensors, and modules in embedded systems
  • Supplying 5V to USB-powered devices from a 24V industrial power source
  • Battery-powered systems requiring efficient voltage regulation
  • Automotive and industrial applications with 24V power rails

Technical Specifications

The Buck Converter 24/5V is designed to provide reliable and efficient voltage regulation. Below are its key technical details:

General Specifications

Parameter Value
Input Voltage Range 7V to 24V
Output Voltage 5V (fixed)
Output Current Up to 3A
Efficiency Up to 95%
Switching Frequency 150 kHz to 300 kHz
Operating Temperature -40°C to +85°C
Dimensions Varies by model (e.g., 22x17mm)

Pin Configuration and Descriptions

Pin Name Description
VIN Input voltage pin. Connect to the 24V power source.
GND Ground pin. Connect to the ground of the circuit.
VOUT Output voltage pin. Provides a regulated 5V output.
EN (optional) Enable pin. Used to turn the converter on/off (active high).

Usage Instructions

How to Use the Buck Converter in a Circuit

  1. Connect the Input Voltage (VIN):
    Attach the 24V power source to the VIN pin. Ensure the input voltage is within the specified range (7V to 24V).

  2. Connect the Ground (GND):
    Connect the GND pin to the ground of your circuit. This is essential for proper operation.

  3. Connect the Output Voltage (VOUT):
    Attach the device or circuit requiring 5V to the VOUT pin. Ensure the load does not exceed the maximum output current (3A).

  4. Optional - Use the Enable Pin (EN):
    If the converter has an EN pin, you can use it to control the converter. Pull the EN pin high (e.g., 3.3V or 5V) to enable the converter, or pull it low to disable it.

Important Considerations and Best Practices

  • Input Voltage Range: Ensure the input voltage is within the specified range (7V to 24V). Exceeding this range may damage the converter.
  • Heat Dissipation: For high-current applications, ensure proper heat dissipation by using a heatsink or providing adequate airflow.
  • Capacitors: Use appropriate input and output capacitors as recommended in the datasheet to ensure stable operation and reduce noise.
  • Polarity: Double-check the polarity of the input and output connections to avoid damage.
  • Load Requirements: Do not exceed the maximum output current (3A) to prevent overheating or failure.

Example: Connecting to an Arduino UNO

The Buck Converter 24/5V can be used to power an Arduino UNO from a 24V power source. Below is an example circuit and code:

Circuit Connections

  1. Connect the 24V power source to the VIN pin of the buck converter.
  2. Connect the GND pin of the buck converter to the ground of the Arduino UNO.
  3. Connect the VOUT pin of the buck converter to the 5V pin of the Arduino UNO.

Example Code

// Example code for Arduino UNO powered by a Buck Converter 24/5V
// This code blinks an LED connected to pin 13

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output for the LED
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Cause: Input voltage is not connected or is outside the specified range.
    • Solution: Verify the input voltage is between 7V and 24V and properly connected.
  2. Overheating:

    • Cause: Excessive load current or insufficient heat dissipation.
    • Solution: Reduce the load current or improve heat dissipation with a heatsink or better airflow.
  3. Output Voltage Fluctuations:

    • Cause: Insufficient input/output capacitors or unstable input voltage.
    • Solution: Add appropriate capacitors as recommended in the datasheet and ensure a stable input voltage.
  4. Converter Not Turning On:

    • Cause: EN pin is not connected or is pulled low.
    • Solution: Pull the EN pin high (e.g., 3.3V or 5V) to enable the converter.

FAQs

Q: Can I use the Buck Converter 24/5V with a 12V input?
A: Yes, the converter supports input voltages from 7V to 24V, so 12V is within the acceptable range.

Q: What happens if I exceed the maximum output current?
A: Exceeding the 3A limit may cause the converter to overheat, shut down, or become damaged. Always ensure the load current is within the specified range.

Q: Can I use this converter to power a Raspberry Pi?
A: Yes, the Buck Converter 24/5V can provide a stable 5V output suitable for powering a Raspberry Pi. Ensure the current requirements of the Raspberry Pi and connected peripherals do not exceed 3A.

Q: Is the output voltage adjustable?
A: No, this specific model provides a fixed 5V output. For adjustable output, consider using a different buck converter model.

By following this documentation, you can effectively use the Buck Converter 24/5V in your projects and troubleshoot common issues.
