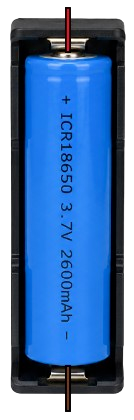

The 18650 in case is a cylindrical lithium-ion rechargeable battery housed in a protective case. This design ensures safe operation and prevents physical damage to the battery, making it ideal for applications requiring durability and reliability. The 18650 battery is widely used in portable electronics, power banks, flashlights, and DIY electronics projects due to its high energy density, long cycle life, and compact size.
Explore Projects Built with 18650 in case
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit consists of two FC-51 IR Obstacle Sensors connected to two KF-301 relays, which likely serve as triggers for switching the relays. Four gearmotors are powered through two XL6009E1 Boost Converters, which are likely used to step up the voltage from a 2-cell 18650 Li-ion battery pack. The relays appear to control the power flow to the boost converters, and thus to the gearmotors, based on the obstacle detection inputs.
This circuit is a simple alarm system powered by a 18650 Li-Ion battery, regulated to 5V by a 7805 voltage regulator. It uses a reed switch to detect magnetic fields, which triggers a BC547 transistor to activate a buzzer when the switch is closed.
This circuit is an emergency alert system that uses a NUCLEO-F072RB microcontroller to send SMS alerts and make calls via a SIM800L GSM module, while obtaining location data from a GPS NEO 6M module. The system is powered by a Li-ion battery and includes a TP4056 module for battery charging and protection, with a rocker switch to control power to the microcontroller.
This circuit is a portable power supply system that uses multiple 18650 Li-ion batteries to provide a stable 5V output through a boost converter. It includes a fast charging module with a USB-C input for recharging the batteries and a battery indicator for monitoring the battery status. The system powers a Lora G2 Node Station, making it suitable for wireless communication applications.
The following table outlines the key technical details of a typical 18650 battery in a case. Note that specifications may vary slightly depending on the manufacturer.
Parameter
Value
Nominal Voltage
3.7V
Fully Charged Voltage
4.2V
Capacity Range
2000mAh to 3500mAh (varies)
Maximum Discharge Current
10A to 30A (depending on model)
Dimensions (with case)
~18.6mm diameter, ~70mm length
Weight (with case)
~45g
Operating Temperature
-20°C to 60°C
Cycle Life
~300-500 cycles
Pin Configuration and Descriptions
The 18650 in case typically has two terminals: positive (+) and negative (-). These terminals are clearly marked on the case for easy identification.
Pin
Description
Positive (+)
Connects to the positive terminal of the circuit.
Negative (-)
Connects to the ground or negative terminal of the circuit.
Usage Instructions
How to Use the 18650 in a Circuit
Identify the Terminals: Ensure you correctly identify the positive (+) and negative (-) terminals on the battery case.
Connect to a Battery Holder: Use a compatible 18650 battery holder to securely connect the battery to your circuit. This prevents accidental short circuits and ensures proper alignment.
Use a Protection Circuit: If the battery does not already include a built-in protection circuit, use an external battery management system (BMS) to prevent overcharging, over-discharging, and short circuits.
Charging the Battery: Use a dedicated lithium-ion battery charger with a constant current/constant voltage (CC/CV) charging profile. Ensure the charger is compatible with the battery's voltage and capacity.
Important Considerations and Best Practices
Avoid Overcharging: Never charge the battery above 4.2V to prevent overheating or damage.
Prevent Over-Discharging: Do not discharge the battery below 2.5V, as this can permanently reduce its capacity.
Monitor Temperature: Avoid using the battery in environments exceeding its operating temperature range.
Storage: Store the battery in a cool, dry place at ~50% charge for long-term storage.
Safety: Never puncture, crush, or expose the battery to fire or water.
Example: Using the 18650 with an Arduino UNO
The 18650 can be used to power an Arduino UNO via its VIN pin. Below is an example circuit and code to read the battery voltage using a voltage divider and the Arduino's analog input.
Circuit Setup:
Connect the positive terminal of the 18650 to the VIN pin of the Arduino.
Use a voltage divider (e.g., 10kΩ and 10kΩ resistors) to step down the battery voltage for safe measurement.
Connect the output of the voltage divider to an analog input pin (e.g., A0).
Arduino Code:
// Define the analog pin connected to the voltage divider
const int voltagePin = A0;
// Define the voltage divider ratio (e.g., 10kΩ and 10kΩ resistors)
const float voltageDividerRatio = 2.0;
// Reference voltage of the Arduino (typically 5V)
const float referenceVoltage = 5.0;
void setup() {
Serial.begin(9600); // Initialize serial communication
}
void loop() {
// Read the raw analog value from the voltage divider
int rawValue = analogRead(voltagePin);
// Convert the raw value to the actual battery voltage
float batteryVoltage = (rawValue / 1023.0) * referenceVoltage * voltageDividerRatio;
// Print the battery voltage to the Serial Monitor
Serial.print("Battery Voltage: ");
Serial.print(batteryVoltage);
Serial.println(" V");
delay(1000); // Wait for 1 second before the next reading
}
Troubleshooting and FAQs
Common Issues and Solutions
Battery Not Charging:
Cause: Faulty charger or damaged battery.
Solution: Verify the charger is functioning correctly and compatible with the battery. Check for physical damage to the battery case.
Battery Drains Quickly:
Cause: Over-discharge or aging battery.
Solution: Avoid discharging below 2.5V. Replace the battery if it has reached the end of its cycle life.
Overheating During Use:
Cause: Excessive current draw or poor ventilation.
Solution: Ensure the load does not exceed the battery's maximum discharge current. Improve ventilation around the battery.
Arduino Not Powering On:
Cause: Insufficient voltage or incorrect wiring.
Solution: Verify the battery voltage is above 6.5V when using the VIN pin. Check all connections.
FAQs
Q: Can I use the 18650 without a case?
A: While it is possible, using a case provides additional safety and prevents accidental short circuits or physical damage.
Q: How do I know when the battery is fully charged?
A: A fully charged 18650 battery will have a voltage of approximately 4.2V. Most chargers include an indicator light to signal when charging is complete.
Q: Can I connect multiple 18650 batteries in series or parallel?
A: Yes, but ensure you use a proper battery management system (BMS) to balance the cells and prevent overcharging or over-discharging.
Q: Is it safe to solder directly to the battery terminals?
A: Direct soldering is not recommended as excessive heat can damage the battery. Use battery holders or spot welding for connections.
