How to Use Rasberry Pi5: Examples, Pinouts, and Specs

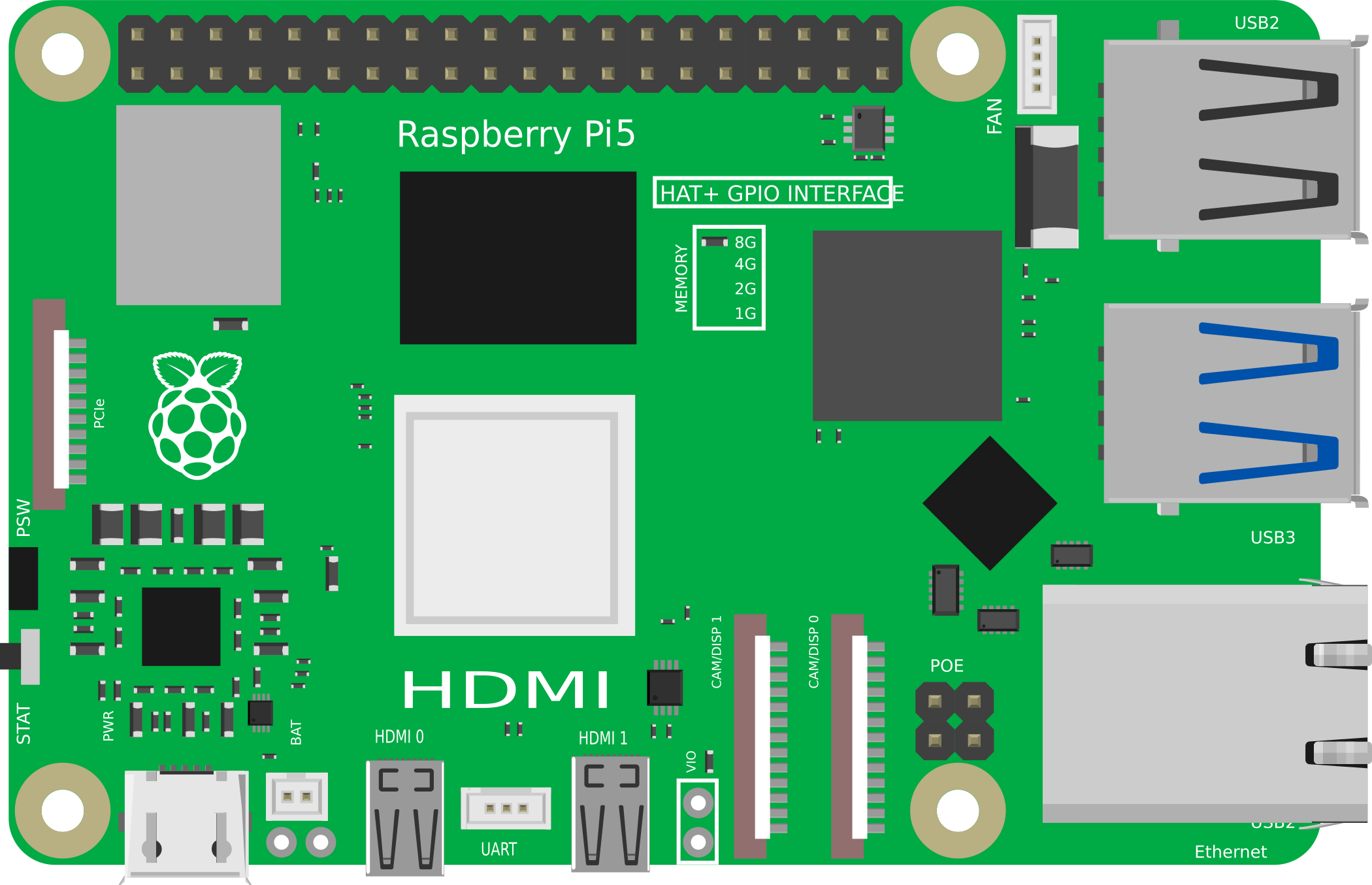

Image of Rasberry Pi5Design with Rasberry Pi5 in Cirkit Designer

Introduction

The Raspberry Pi 5 is a compact, affordable single-board computer designed for a wide range of applications. It features a powerful quad-core processor, enhanced graphics capabilities, and multiple connectivity options, making it an excellent choice for projects ranging from programming and education to IoT (Internet of Things) and home automation. Its versatility and affordability have made it a popular choice among hobbyists, educators, and professionals alike.

Explore Projects Built with Rasberry Pi5

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Raspberry Pi 5 Smart Weather Station with GPS and AI Integration: A project utilizing Rasberry Pi5 in a practical application
Raspberry Pi 5 Smart Weather Station with GPS and AI Integration

This circuit integrates a Raspberry Pi 5 with various peripherals including an 8MP 3D stereo camera, an AI Hat, a BMP388 sensor, a 16x2 I2C LCD, and an Adafruit Ultimate GPS module. The Raspberry Pi serves as the central processing unit, interfacing with the camera for image capture, the AI Hat for AI processing, the BMP388 for environmental sensing, the LCD for display, and the GPS module for location tracking, with a USB Serial TTL for serial communication.

Open Project in Cirkit Designer

Common Applications and Use Cases

Technical Specifications

The Raspberry Pi 5 offers significant improvements over its predecessors, with enhanced performance and connectivity options.

Key Technical Details

Specification Details
Processor Quad-core ARM Cortex-A76, 2.4 GHz
GPU VideoCore VII, supports 4K video at 60 fps
RAM Options 4GB, 8GB, or 16GB LPDDR4X
Storage MicroSD card slot, support for external SSD via USB 3.0
Connectivity Dual-band Wi-Fi 6, Bluetooth 5.2, Gigabit Ethernet
USB Ports 2 × USB 3.0, 2 × USB 2.0
GPIO Pins 40-pin header, backward-compatible with previous Raspberry Pi models
Display Output 2 × micro-HDMI ports, supports dual 4K displays
Power Supply USB-C, 5V/5A
Dimensions 85.6 mm × 56.5 mm
Operating System Raspberry Pi OS (Linux-based), supports other OS options

Pin Configuration and Descriptions

The Raspberry Pi 5 features a 40-pin GPIO header, which is backward-compatible with earlier models. Below is the pinout configuration:

Pin Number Pin Name Description
1 3.3V Power Provides 3.3V power
2 5V Power Provides 5V power
3 GPIO2 (SDA1) I2C Data
4 5V Power Provides 5V power
5 GPIO3 (SCL1) I2C Clock
6 Ground Ground pin
7 GPIO4 General-purpose I/O
8 GPIO14 (TXD) UART Transmit
9 Ground Ground pin
10 GPIO15 (RXD) UART Receive
... ... ... (Refer to official documentation for full pinout)

Usage Instructions

How to Use the Raspberry Pi 5 in a Circuit

  1. Powering the Raspberry Pi 5:

    • Use a USB-C power adapter capable of delivering 5V/5A.
    • Ensure the power supply is stable to avoid performance issues.
  2. Connecting Peripherals:

    • Attach a keyboard, mouse, and monitor via USB and micro-HDMI ports.
    • Insert a microSD card with the Raspberry Pi OS installed.
  3. Using GPIO Pins:

    • Connect sensors, LEDs, or other components to the GPIO pins.
    • Use Python libraries like RPi.GPIO or gpiozero to control the pins.
  4. Networking:

    • Connect to the internet via Wi-Fi 6 or Gigabit Ethernet for faster data transfer.

Important Considerations and Best Practices

Example: Blinking an LED with GPIO and Python

Below is an example of how to blink an LED connected to GPIO pin 17 using Python:

# Import necessary libraries
import RPi.GPIO as GPIO
import time

# Set up GPIO mode
GPIO.setmode(GPIO.BCM)  # Use Broadcom pin numbering
GPIO.setup(17, GPIO.OUT)  # Set GPIO pin 17 as an output

try:
    while True:
        GPIO.output(17, GPIO.HIGH)  # Turn LED on
        time.sleep(1)  # Wait for 1 second
        GPIO.output(17, GPIO.LOW)   # Turn LED off
        time.sleep(1)  # Wait for 1 second
except KeyboardInterrupt:
    # Clean up GPIO settings on exit
    GPIO.cleanup()

Troubleshooting and FAQs

Common Issues Users Might Face

  1. No Display Output:

    • Solution: Ensure the micro-HDMI cable is securely connected. Verify the monitor is powered on and set to the correct input source.
  2. Wi-Fi Connectivity Problems:

    • Solution: Check the Wi-Fi credentials and ensure the router is within range. Update the Raspberry Pi OS to fix potential driver issues.
  3. Overheating:

    • Solution: Install a heatsink or fan. Avoid placing the Raspberry Pi in enclosed spaces without ventilation.
  4. GPIO Pins Not Working:

    • Solution: Verify the pin configuration in your code. Ensure no short circuits or incorrect connections.
  5. Power Issues:

    • Solution: Use a reliable 5V/5A USB-C power adapter. Avoid using low-quality power supplies.

FAQs

By following this documentation, users can effectively utilize the Raspberry Pi 5 for a variety of projects and applications.
