How to Use Modul Relay 12v 6ch: Examples, Pinouts, and Specs

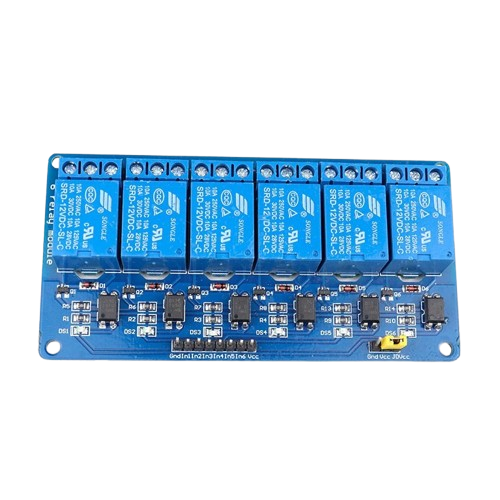

The Modul Relay 12V 6CH is a versatile electronic component designed to control high-voltage devices using low-voltage signals. This module features six independent relay channels, allowing users to switch multiple circuits simultaneously. It is widely used in automation, home appliances, industrial control systems, and IoT projects. The module is compatible with microcontrollers like Arduino, Raspberry Pi, and other logic-level control systems, making it an essential tool for hobbyists and professionals alike.

• Home automation (e.g., controlling lights, fans, or appliances)
• Industrial control systems
• IoT projects for remote device control
• Robotics and mechatronics
• Security systems (e.g., activating alarms or locks)

The Modul Relay 12V 6CH is designed to handle a variety of control and switching tasks. Below are its key technical details:

• Operating Voltage: 12V DC
• Trigger Voltage: 3.3V to 5V (logic-level compatible)
• Relay Type: Electromechanical
• Number of Channels: 6
• Maximum Load (per channel):
  • AC: 250V at 10A
  • DC: 30V at 10A
• Isolation: Optocoupler isolation for signal protection
• Dimensions: Approximately 140mm x 50mm x 20mm
• Weight: ~120g

The module has two main interfaces: the control signal pins and the relay output terminals.

Each relay channel has three terminals:

1. Power the Module: Connect the VCC pin to a 12V DC power source and the GND pin to the ground.
2. Connect the Control Signals: Use a microcontroller (e.g., Arduino) to send control signals to the IN1–IN6 pins. Each pin corresponds to one relay channel.
3. Connect the Load: Wire the high-voltage device to the relay output terminals (NO, COM, NC) based on your switching requirements:
   • Use NO and COM for devices that should remain off by default.
   • Use NC and COM for devices that should remain on by default.
4. Trigger the Relays: Send a LOW signal (0V) to the desired IN pin to activate the corresponding relay. A HIGH signal (3.3V or 5V) will deactivate the relay.

• Ensure the load does not exceed the relay's maximum current and voltage ratings.
• Use proper insulation and safety precautions when working with high-voltage circuits.
• Avoid powering the module directly from the microcontroller's 5V pin, as the relays require a 12V power supply.
• Use optocoupler isolation to protect the control circuit from high-voltage spikes.

Below is an example of how to control the Modul Relay 12V 6CH using an Arduino UNO:

• Connect the module's VCC to an external 12V power supply.
• Connect the module's GND to the Arduino's GND.
• Connect the module's IN1–IN6 pins to Arduino digital pins (e.g., D2–D7).

// Define the relay control pins
#define RELAY1 2
#define RELAY2 3
#define RELAY3 4
#define RELAY4 5
#define RELAY5 6
#define RELAY6 7

void setup() {
  // Set relay pins as outputs
  pinMode(RELAY1, OUTPUT);
  pinMode(RELAY2, OUTPUT);
  pinMode(RELAY3, OUTPUT);
  pinMode(RELAY4, OUTPUT);
  pinMode(RELAY5, OUTPUT);
  pinMode(RELAY6, OUTPUT);

  // Initialize all relays to OFF (HIGH state)
  digitalWrite(RELAY1, HIGH);
  digitalWrite(RELAY2, HIGH);
  digitalWrite(RELAY3, HIGH);
  digitalWrite(RELAY4, HIGH);
  digitalWrite(RELAY5, HIGH);
  digitalWrite(RELAY6, HIGH);
}

void loop() {
  // Example: Turn on Relay 1 for 2 seconds, then turn it off
  digitalWrite(RELAY1, LOW); // Activate Relay 1
  delay(2000);               // Wait for 2 seconds
  digitalWrite(RELAY1, HIGH); // Deactivate Relay 1
  delay(2000);               // Wait for 2 seconds
}

1. Relays Not Activating

   • Cause: Insufficient power supply.
   • Solution: Ensure the module is powered with a stable 12V DC source.

2. Microcontroller Not Triggering Relays

   • Cause: Incorrect wiring or signal levels.
   • Solution: Verify the control signal connections and ensure the microcontroller outputs a LOW signal to activate the relays.

3. High-Voltage Device Not Switching

   • Cause: Incorrect wiring of the relay output terminals.
   • Solution: Double-check the connections to the NO, NC, and COM terminals.

4. Module Overheating

   • Cause: Exceeding the relay's current or voltage ratings.
   • Solution: Ensure the load is within the specified limits (10A for AC, 10A for DC).

• Can I use this module with a 5V power supply? No, the module requires a 12V DC power supply for proper operation.

• Is the module compatible with 3.3V logic? Yes, the module can be triggered with 3.3V or 5V logic signals.

• Can I control all six relays simultaneously? Yes, as long as the power supply can handle the combined current draw of all active relays.

• What precautions should I take when working with high voltage? Always ensure proper insulation, avoid touching live wires, and follow safety guidelines to prevent electric shock or damage.
