How to Use Arcade Button (blue): Examples, Pinouts, and Specs

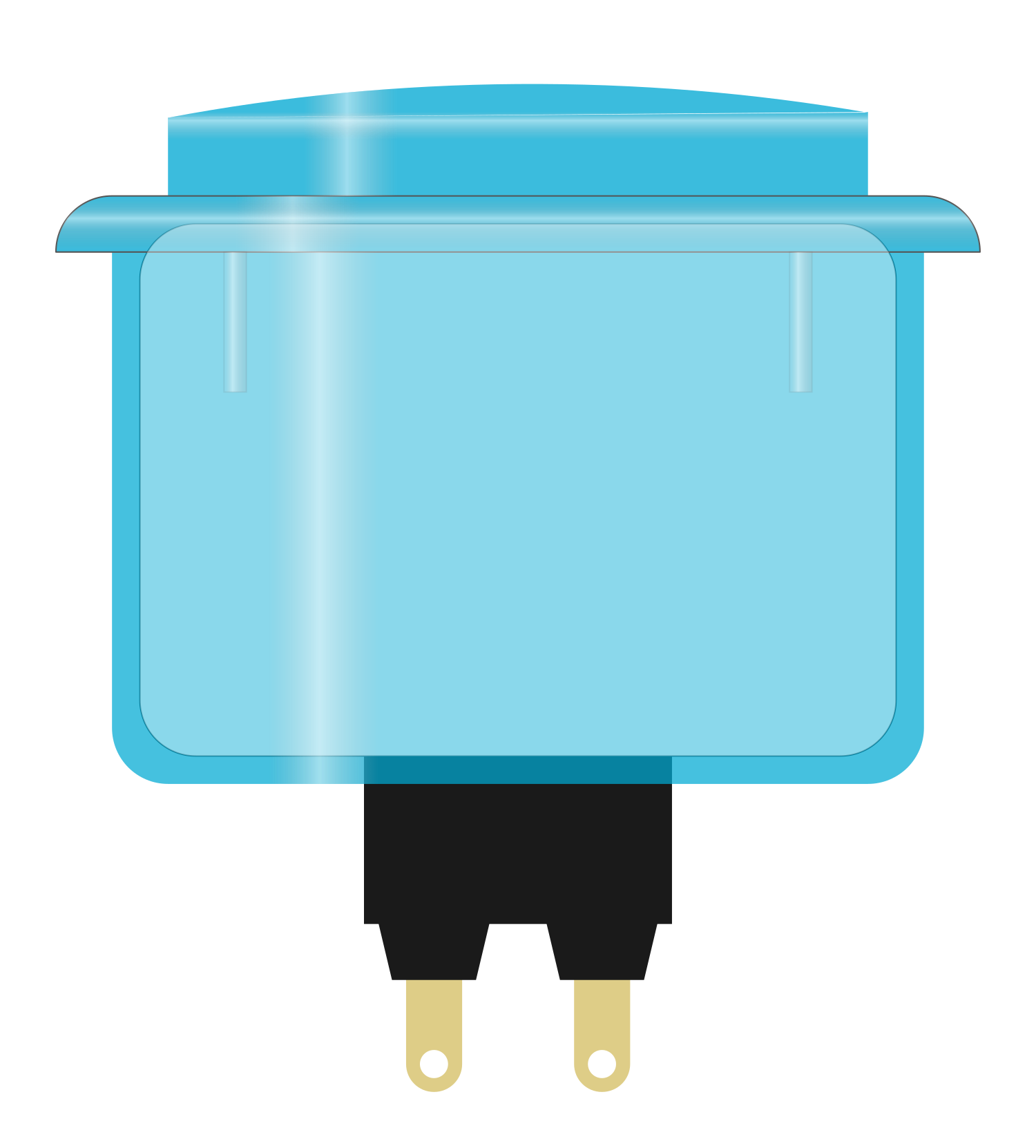

The Arcade Button (Blue) is a push-button switch designed for user interaction in various electronic projects. It is commonly used in arcade machines, gaming consoles, and DIY electronics due to its durable construction, tactile feedback, and vibrant blue color for easy identification. This button is ideal for applications requiring frequent pressing and reliable performance.

• Arcade gaming machines
• DIY gaming controllers
• Interactive kiosks
• Custom electronics projects
• Educational prototyping

The Arcade Button (Blue) is a simple, momentary push-button switch. Below are its key technical details:

The Arcade Button (Blue) typically has two terminals for connection:

When the button is pressed, the circuit between the NO and COM terminals is closed, allowing current to flow.

1. Wiring the Button:

   • Connect the COM terminal to the ground (GND) of your circuit.
   • Connect the NO terminal to the input pin of your microcontroller or circuit.

2. Pull-Down Resistor:

   • Use a pull-down resistor (e.g., 10kΩ) between the input pin and ground to ensure a stable LOW signal when the button is not pressed.

3. Power Supply:

   • Ensure the button operates within its voltage and current ratings to avoid damage.

Below is an example of how to connect and use the Arcade Button (Blue) with an Arduino UNO:

• COM terminal → GND on Arduino
• NO terminal → Digital Pin 2 on Arduino (with a 10kΩ pull-down resistor)

// Arcade Button Example with Arduino UNO
// This code reads the button state and turns on an LED when the button is pressed.

const int buttonPin = 2;  // Pin connected to the NO terminal of the button
const int ledPin = 13;    // Built-in LED on Arduino UNO

void setup() {
  pinMode(buttonPin, INPUT);  // Set button pin as input
  pinMode(ledPin, OUTPUT);   // Set LED pin as output
}

void loop() {
  int buttonState = digitalRead(buttonPin);  // Read the button state

  if (buttonState == HIGH) {
    // If button is pressed, turn on the LED
    digitalWrite(ledPin, HIGH);
  } else {
    // If button is not pressed, turn off the LED
    digitalWrite(ledPin, LOW);
  }
}

• Use quick-connect terminals for easy installation and replacement.
• Avoid excessive force when pressing the button to prolong its lifespan.
• Ensure proper mounting in a 28mm hole for secure placement.

1. Button Not Responding:

   • Cause: Loose or incorrect wiring.
   • Solution: Check the connections to the NO and COM terminals. Ensure the pull-down resistor is properly connected.

2. Button Stuck or Hard to Press:

   • Cause: Dirt or debris inside the button mechanism.
   • Solution: Clean the button with compressed air or a soft cloth. Avoid using liquids.

3. Unstable Signal:

   • Cause: Lack of a pull-down resistor or electrical noise.
   • Solution: Add a 10kΩ pull-down resistor between the input pin and ground.

4. Button Works Intermittently:

   • Cause: Worn-out contacts or improper soldering.
   • Solution: Inspect the solder joints and re-solder if necessary. Replace the button if contacts are worn.

Q: Can I use this button with a Raspberry Pi?
A: Yes, the Arcade Button (Blue) can be used with a Raspberry Pi. Connect the NO terminal to a GPIO pin and the COM terminal to ground. Use a pull-down resistor for stable input.

Q: Is the button waterproof?
A: No, the Arcade Button (Blue) is not waterproof. Avoid using it in environments with high moisture or water exposure.

Q: Can I use this button for high-power applications?
A: No, this button is designed for low-power logic-level circuits. For high-power applications, use a relay or transistor to handle the load.

Q: How do I mount the button securely?
A: Drill a 28mm hole in your panel or enclosure, insert the button, and secure it using the included mounting nut.

By following this documentation, you can effectively integrate the Arcade Button (Blue) into your projects for reliable and responsive user interaction.
