How to Use Relay 3 Channel Optocoupler: Examples, Pinouts, and Specs

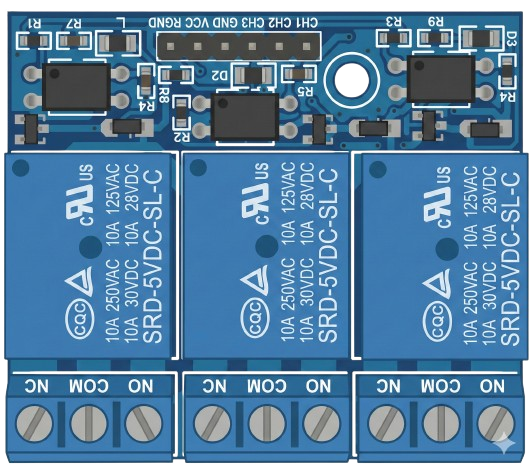

The Relay 3 Channel Optocoupler module, manufactured by Arduino (Part ID: Relay), is a versatile electronic component designed to control high-voltage devices using low-voltage signals. This module features three independent relays, each capable of switching AC or DC loads, and is equipped with optocouplers for electrical isolation. The optocouplers ensure safe operation by isolating the control circuit from the high-voltage load.

• Home automation systems (e.g., controlling lights, fans, or appliances)
• Industrial automation and motor control
• IoT projects requiring high-voltage device control
• Robotics and mechatronics applications
• Signal isolation in sensitive circuits

• Operating Voltage: 5V DC
• Trigger Voltage: 3.3V to 5V (compatible with Arduino and other microcontrollers)
• Relay Output: Supports AC (250V/10A) or DC (30V/10A) loads
• Isolation: Optocoupler-based electrical isolation
• Channels: 3 independent relays
• Indicator LEDs: One LED per channel to indicate relay status
• Dimensions: 50mm x 70mm (approx.)

1. Power the Module: Connect the VCC pin to a 5V power supply and the GND pin to ground.
2. Connect Control Signals: Use digital output pins from a microcontroller (e.g., Arduino UNO) to control the IN1, IN2, and IN3 pins. A LOW signal activates the corresponding relay.
3. Connect the Load: Attach the high-voltage device to the relay's output terminals (COM, NO, and NC). Use the NO terminal for devices that should be off by default and the NC terminal for devices that should be on by default.
4. Test the Circuit: Upload the control code to the microcontroller and verify the relay operation.

• Ensure the load does not exceed the relay's maximum current and voltage ratings.
• Use proper insulation and safety precautions when working with high-voltage circuits.
• Avoid switching inductive loads (e.g., motors) without a flyback diode or snubber circuit to prevent voltage spikes.
• Keep the control and load circuits physically separated to minimize interference.

// Example code to control a 3-channel relay module with Arduino UNO
// Ensure the relay module is connected to pins 7, 8, and 9 on the Arduino

#define RELAY1 7  // Define pin for Relay 1
#define RELAY2 8  // Define pin for Relay 2
#define RELAY3 9  // Define pin for Relay 3

void setup() {
  // Set relay pins as outputs
  pinMode(RELAY1, OUTPUT);
  pinMode(RELAY2, OUTPUT);
  pinMode(RELAY3, OUTPUT);

  // Initialize all relays to OFF state (HIGH signal)
  digitalWrite(RELAY1, HIGH);
  digitalWrite(RELAY2, HIGH);
  digitalWrite(RELAY3, HIGH);
}

void loop() {
  // Example sequence to toggle relays
  digitalWrite(RELAY1, LOW);  // Turn ON Relay 1
  delay(1000);                // Wait for 1 second
  digitalWrite(RELAY1, HIGH); // Turn OFF Relay 1

  digitalWrite(RELAY2, LOW);  // Turn ON Relay 2
  delay(1000);                // Wait for 1 second
  digitalWrite(RELAY2, HIGH); // Turn OFF Relay 2

  digitalWrite(RELAY3, LOW);  // Turn ON Relay 3
  delay(1000);                // Wait for 1 second
  digitalWrite(RELAY3, HIGH); // Turn OFF Relay 3
}

1. Relays Not Activating:

   • Ensure the VCC and GND pins are properly connected to a 5V power supply.
   • Verify that the control signals (IN1, IN2, IN3) are set to LOW to activate the relays.
   • Check for loose or incorrect wiring.

2. Load Not Switching:

   • Confirm that the load is connected to the correct output terminals (COM, NO, or NC).
   • Ensure the load does not exceed the relay's voltage and current ratings.

3. Interference or Noise in the Circuit:

   • Use decoupling capacitors near the power supply pins to reduce noise.
   • Keep high-voltage and low-voltage wiring separated.

• Use a multimeter to check the continuity of the relay's output terminals when activated.
• Test the relays individually by connecting their control pins directly to GND.
• If the relays still do not work, inspect the module for physical damage or faulty components.

By following this documentation, users can safely and effectively integrate the Relay 3 Channel Optocoupler module into their projects.
