How to Use ESP 32: Examples, Pinouts, and Specs

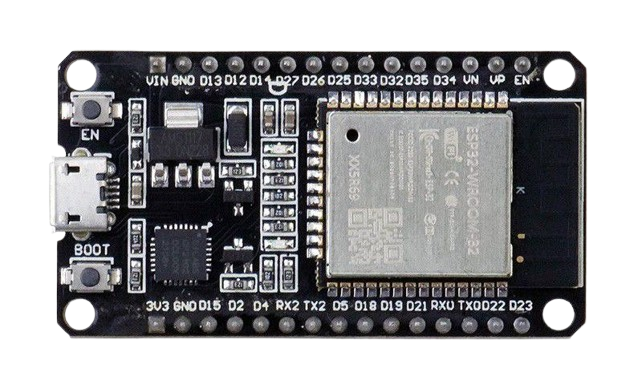

The ESP32, manufactured by NodeMCU (Part ID: ESP32), is a low-cost, low-power system on a chip (SoC) designed for a wide range of applications. It integrates Wi-Fi and Bluetooth capabilities, making it an ideal choice for Internet of Things (IoT) projects, smart devices, and embedded systems. The ESP32 is highly versatile, offering dual-core processing, multiple GPIO pins, and support for various communication protocols.

• IoT devices (e.g., smart home systems, sensors, and actuators)
• Wireless communication hubs
• Wearable devices
• Robotics and automation
• Data logging and remote monitoring
• Prototyping and educational projects

The ESP32 is packed with features that make it a powerful and flexible component for a variety of applications. Below are its key technical specifications:

The ESP32 has multiple GPIO pins that can be configured for various functions. Below is a table summarizing the pin configuration:

Note: Some GPIO pins have specific restrictions or are used during boot. Refer to the ESP32 datasheet for detailed pin behavior.

The ESP32 can be used in a variety of circuits and applications. Below are the steps and best practices for using the ESP32:

1. Power Supply: Connect the VIN pin to a 5V power source and GND to ground. The onboard voltage regulator will step down the voltage to 3.3V for the ESP32.
2. Programming: Use a USB-to-serial adapter or a development board with a built-in USB interface to program the ESP32. The Arduino IDE or ESP-IDF (Espressif IoT Development Framework) can be used for programming.
3. Boot Mode: Ensure GPIO0 is pulled low during boot to enter programming mode.

Below is an example of how to blink an LED connected to GPIO2 using the Arduino IDE:

// Include the Arduino framework for ESP32
void setup() {
  pinMode(2, OUTPUT); // Set GPIO2 as an output pin
}

void loop() {
  digitalWrite(2, HIGH); // Turn the LED on
  delay(1000);           // Wait for 1 second
  digitalWrite(2, LOW);  // Turn the LED off
  delay(1000);           // Wait for 1 second
}

• Voltage Levels: The ESP32 operates at 3.3V logic levels. Avoid connecting 5V signals directly to its GPIO pins.
• Power Consumption: Use deep sleep mode to minimize power consumption in battery-powered applications.
• Antenna Placement: Ensure the onboard antenna has sufficient clearance from metal objects to avoid signal interference.

1. ESP32 Not Detected by Computer

   • Ensure the correct USB driver is installed for your development board.
   • Check the USB cable for damage or try a different cable.

2. Upload Fails with "Failed to Connect" Error

   • Ensure GPIO0 is pulled low during programming.
   • Press and hold the "BOOT" button (if available) while uploading the code.

3. Wi-Fi Connection Issues

   • Verify the SSID and password in your code.
   • Check for interference or weak signal strength.

4. Random Resets or Instability

   • Ensure the power supply provides sufficient current (at least 500mA).
   • Add decoupling capacitors near the power pins to stabilize the voltage.

Q: Can the ESP32 be powered directly with a 5V source?
A: Yes, the VIN pin can accept 5V, which is regulated down to 3.3V internally. However, the GPIO pins operate at 3.3V logic levels.

Q: How do I use Bluetooth on the ESP32?
A: The ESP32 supports both Bluetooth Classic and BLE. Use the BluetoothSerial library for Bluetooth Classic or the BLE library for BLE in the Arduino IDE.

Q: Can I use the ESP32 with sensors that output 5V signals?
A: No, you will need a level shifter to step down the 5V signals to 3.3V to avoid damaging the ESP32.

Q: What is the maximum Wi-Fi range of the ESP32?
A: The range depends on the environment but is typically around 50 meters indoors and up to 200 meters outdoors with a clear line of sight.

By following this documentation, you can effectively integrate the ESP32 into your projects and troubleshoot common issues.
