How to Use relay: Examples, Pinouts, and Specs

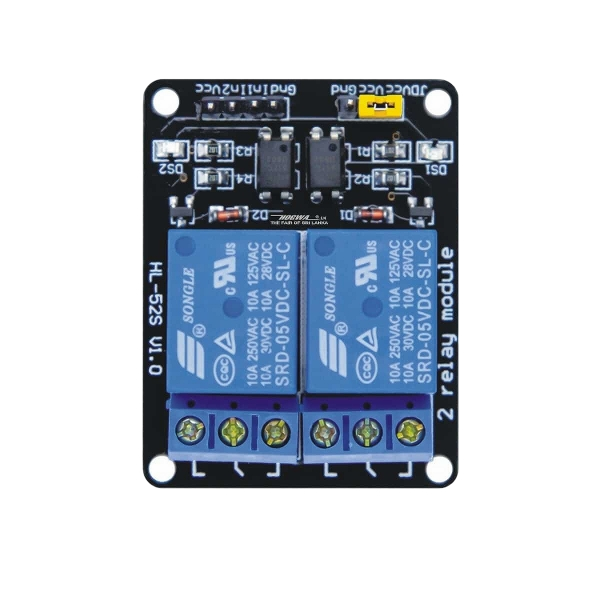

A relay is an electromechanical switch that uses an electromagnetic coil to open or close a circuit. It allows a low-power signal to control a higher power circuit, providing isolation and control in various applications. Relays are widely used in automation, home appliances, automotive systems, and industrial equipment to control high-current devices such as motors, lights, and heaters.

• Home Automation: Controlling lights, fans, and other appliances.
• Automotive Systems: Switching headlights, horns, and other high-current loads.
• Industrial Equipment: Managing motors, pumps, and solenoids.
• Microcontroller Projects: Interfacing low-power microcontrollers with high-power devices.

Below are the general technical specifications for a standard 5V single-channel relay module:

• Operating Voltage: 5V DC
• Trigger Voltage: 3.3V to 5V (logic level compatible)
• Maximum Switching Voltage: 250V AC or 30V DC
• Maximum Switching Current: 10A
• Coil Resistance: ~70Ω (varies by model)
• Isolation: Optocoupler isolation (for relay modules)
• Relay Type: SPDT (Single Pole Double Throw)

The relay module typically has the following pins:

1. Power the Relay: Connect the VCC and GND pins of the relay module to a 5V DC power supply.
2. Control Signal: Connect the IN pin to a microcontroller's GPIO pin or another control signal source.
3. Load Connection:
   • Connect the device you want to control (e.g., a light bulb) to the NO terminal.
   • Connect the other end of the device to the power source.
   • Connect the COM terminal to the power source's ground or live wire, depending on the circuit design.
4. Trigger the Relay: Send a HIGH signal (3.3V or 5V) to the IN pin to activate the relay and close the circuit between COM and NO.

• Isolation: Ensure proper isolation between the low-power control circuit and the high-power load.
• Flyback Diode: If you're using a bare relay (not a module), add a flyback diode across the coil to protect the circuit from voltage spikes.
• Current Rating: Do not exceed the relay's maximum current and voltage ratings.
• Safety: When working with high voltages, ensure proper insulation and follow safety guidelines.

Below is an example of how to control a relay using an Arduino UNO:

// Define the relay control pin
const int relayPin = 7;

void setup() {
  pinMode(relayPin, OUTPUT); // Set the relay pin as an output
  digitalWrite(relayPin, LOW); // Ensure the relay is off initially
}

void loop() {
  digitalWrite(relayPin, HIGH); // Turn the relay on
  delay(1000); // Keep it on for 1 second
  digitalWrite(relayPin, LOW); // Turn the relay off
  delay(1000); // Keep it off for 1 second
}

Explanation:

• The relay is connected to pin 7 of the Arduino.
• The digitalWrite function is used to send HIGH or LOW signals to the relay.
• The relay alternates between ON and OFF states every second.

1. Relay Not Activating:

   • Check if the VCC and GND connections are secure.
   • Ensure the control signal voltage is within the relay's trigger range.
   • Verify that the power supply provides sufficient current for the relay.

2. Load Not Switching:

   • Confirm that the load is properly connected to the NO or NC terminal.
   • Check if the load's voltage and current are within the relay's specifications.

3. Relay Buzzing or Clicking Rapidly:

   • This may occur if the control signal is unstable. Use a pull-down resistor on the IN pin to stabilize the signal.

4. Microcontroller Resetting:

   • High-current loads can cause voltage dips. Use a separate power supply for the relay module or add a capacitor to stabilize the power.

Q: Can I use a 3.3V microcontroller to control a 5V relay?
A: Yes, most 5V relay modules can be triggered by a 3.3V control signal. However, check the module's datasheet to confirm compatibility.

Q: What is the difference between NO and NC terminals?
A: The NO (Normally Open) terminal is disconnected from COM when the relay is off and connected when the relay is on. The NC (Normally Closed) terminal is the opposite—it is connected to COM when the relay is off and disconnected when the relay is on.

Q: Can I use a relay to switch DC and AC loads?
A: Yes, relays can switch both DC and AC loads, but ensure the load voltage and current are within the relay's rated specifications.

Q: Do I need an external transistor to drive the relay?
A: If you're using a relay module, it typically includes a transistor for driving the relay. For bare relays, you will need an external transistor or driver circuit.
