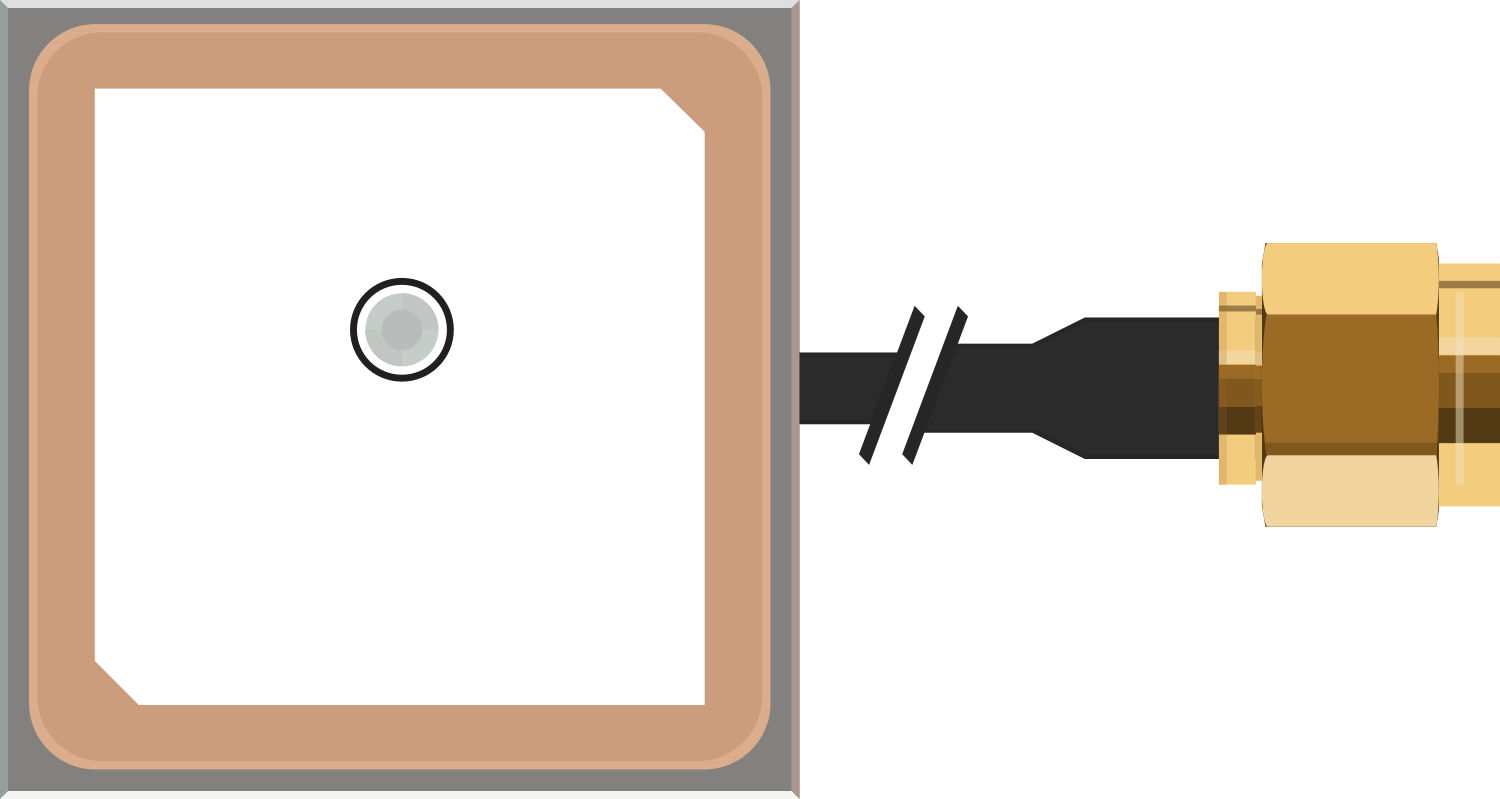

Image of Antenna GPS Embedded SMA
Cirkit Designer LogoDesign with Antenna GPS Embedded SMA in Cirkit Designer

Introduction

The Antenna GPS Embedded SMA is a compact and efficient GPS antenna designed for embedded applications. It features an SMA connector, which ensures easy integration into a wide range of devices. This antenna is optimized for GPS signal reception, making it ideal for applications requiring precise location tracking and navigation.

Explore Projects Built with Antenna GPS Embedded SMA

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Mega 2560 and UHF RFID-Based Animal Tag Detection System with GPS
Image of  Game Play Design: A project utilizing Antenna GPS Embedded SMA in a practical application
This circuit integrates an Arduino Mega 2560 with a UHF RFID module and a GPS antenna. The Arduino reads RFID tag data from the UHF RFID module and processes it to detect specific tags, while the GPS antenna is powered but not actively used in the provided code.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP8266 and GPS-RTK2 Based Real-Time GPS Tracker with Bluetooth and APC220 Communication
Image of PANDURTKU0001_1: A project utilizing Antenna GPS Embedded SMA in a practical application
This circuit integrates a GPS module, an ESP8266 microcontroller, a Bluetooth module, and an APC220 RF module to collect and transmit GPS data. The ESP8266 reads GPS data from the SparkFun Qwiic GPS-RTK2 module and can communicate this data via Bluetooth and RF transmission. The system is powered by a 5V battery and includes an embedded GPS antenna for signal reception.
Cirkit Designer LogoOpen Project in Cirkit Designer
Satellite Compass and Network-Integrated GPS Data Processing System
Image of GPS 시스템 측정 구성도_241016: A project utilizing Antenna GPS Embedded SMA in a practical application
This circuit comprises a satellite compass, a mini PC, two GPS antennas, power supplies, a network switch, media converters, and an atomic rubidium clock. The satellite compass is powered by a triple output DC power supply and interfaces with an RS232 splitter for 1PPS signals. The mini PCs are connected to the USRP B200 devices via USB for data and power, and to media converters via Ethernet, which in turn connect to a network switch using fiber optic links. The antennas are connected to the USRP B200s through RF directional couplers, and the atomic clock provides a 1PPS input to the RS232 splitter.
Cirkit Designer LogoOpen Project in Cirkit Designer
Satellite-Based Timing and Navigation System with SDR and Atomic Clock Synchronization
Image of GPS 시스템 측정 구성도_Confirm: A project utilizing Antenna GPS Embedded SMA in a practical application
This circuit appears to be a complex system involving power supply management, GPS and timing synchronization, and data communication. It includes a SI-TEX G1 Satellite Compass for GPS data, an XHTF1021 Atomic Rubidium Clock for precise timing, and Ettus USRP B200 units for software-defined radio communication. Power is supplied through various SMPS units and distributed via terminal blocks and DC jacks. Data communication is facilitated by Beelink MINI S12 N95 computers, RS232 splitters, and a 1000BASE-T Media Converter for network connectivity. RF Directional Couplers are used to interface antennas with the USRP units, and the entire system is likely contained within cases for protection and organization.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Antenna GPS Embedded SMA

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of  Game Play Design: A project utilizing Antenna GPS Embedded SMA in a practical application
Arduino Mega 2560 and UHF RFID-Based Animal Tag Detection System with GPS
This circuit integrates an Arduino Mega 2560 with a UHF RFID module and a GPS antenna. The Arduino reads RFID tag data from the UHF RFID module and processes it to detect specific tags, while the GPS antenna is powered but not actively used in the provided code.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of PANDURTKU0001_1: A project utilizing Antenna GPS Embedded SMA in a practical application
ESP8266 and GPS-RTK2 Based Real-Time GPS Tracker with Bluetooth and APC220 Communication
This circuit integrates a GPS module, an ESP8266 microcontroller, a Bluetooth module, and an APC220 RF module to collect and transmit GPS data. The ESP8266 reads GPS data from the SparkFun Qwiic GPS-RTK2 module and can communicate this data via Bluetooth and RF transmission. The system is powered by a 5V battery and includes an embedded GPS antenna for signal reception.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of GPS 시스템 측정 구성도_241016: A project utilizing Antenna GPS Embedded SMA in a practical application
Satellite Compass and Network-Integrated GPS Data Processing System
This circuit comprises a satellite compass, a mini PC, two GPS antennas, power supplies, a network switch, media converters, and an atomic rubidium clock. The satellite compass is powered by a triple output DC power supply and interfaces with an RS232 splitter for 1PPS signals. The mini PCs are connected to the USRP B200 devices via USB for data and power, and to media converters via Ethernet, which in turn connect to a network switch using fiber optic links. The antennas are connected to the USRP B200s through RF directional couplers, and the atomic clock provides a 1PPS input to the RS232 splitter.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of GPS 시스템 측정 구성도_Confirm: A project utilizing Antenna GPS Embedded SMA in a practical application
Satellite-Based Timing and Navigation System with SDR and Atomic Clock Synchronization
This circuit appears to be a complex system involving power supply management, GPS and timing synchronization, and data communication. It includes a SI-TEX G1 Satellite Compass for GPS data, an XHTF1021 Atomic Rubidium Clock for precise timing, and Ettus USRP B200 units for software-defined radio communication. Power is supplied through various SMPS units and distributed via terminal blocks and DC jacks. Data communication is facilitated by Beelink MINI S12 N95 computers, RS232 splitters, and a 1000BASE-T Media Converter for network connectivity. RF Directional Couplers are used to interface antennas with the USRP units, and the entire system is likely contained within cases for protection and organization.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • GPS tracking devices
  • IoT applications requiring geolocation
  • Automotive navigation systems
  • Drones and UAVs
  • Wearable GPS-enabled devices
  • Industrial equipment with GPS functionality

Technical Specifications

Below are the key technical details of the Antenna GPS Embedded SMA:

Parameter Specification
Frequency Range 1575.42 MHz (L1 GPS Band)
Polarization Right-Hand Circular Polarization (RHCP)
Gain 28 dB (active)
Voltage Supply (Vcc) 3.0 V to 5.0 V
Current Consumption ≤ 15 mA
Impedance 50 Ω
Connector Type SMA (Standard Male)
Operating Temperature -40°C to +85°C
Dimensions 25 mm x 25 mm x 8 mm
Cable Length 3 meters (customizable)

Pin Configuration and Descriptions

The Antenna GPS Embedded SMA does not have traditional pins but connects via an SMA connector. Below is a description of the SMA interface:

Connector Pin Description
Center Pin GPS signal output
Outer Shield Ground (GND)

Usage Instructions

How to Use the Component in a Circuit

  1. Connect the Antenna to a GPS Module:

    • Attach the SMA connector of the antenna to the SMA port of your GPS module or receiver. Ensure the connection is secure to avoid signal loss.
  2. Power the GPS Module:

    • Supply the GPS module with the appropriate voltage (typically 3.3V or 5V, depending on the module specifications). The antenna will draw power from the GPS module for its active amplification.
  3. Position the Antenna:

    • Place the antenna in a location with a clear view of the sky for optimal GPS signal reception. Avoid obstructions such as metal enclosures or thick walls.
  4. Integrate with a Microcontroller (Optional):

    • If using a microcontroller like an Arduino UNO, connect the GPS module's TX (transmit) and RX (receive) pins to the Arduino's RX and TX pins, respectively.

Important Considerations and Best Practices

  • Avoid Signal Interference: Keep the antenna away from sources of electromagnetic interference (EMI), such as power supplies or high-frequency circuits.
  • Use a Ground Plane: For improved performance, consider mounting the antenna on a metallic ground plane.
  • Cable Management: Ensure the antenna cable is not excessively bent or twisted, as this can degrade signal quality.
  • Weatherproofing: If used outdoors, ensure the antenna is protected from environmental factors like rain or dust.

Example Code for Arduino UNO

Below is an example of how to interface a GPS module (connected to the antenna) with an Arduino UNO to read GPS data:

#include <SoftwareSerial.h>

// Define RX and TX pins for the GPS module
SoftwareSerial gpsSerial(4, 3); // RX = Pin 4, TX = Pin 3

void setup() {
  Serial.begin(9600);          // Initialize Serial Monitor
  gpsSerial.begin(9600);       // Initialize GPS module communication
  Serial.println("GPS Module Initialized");
}

void loop() {
  // Check if data is available from the GPS module
  while (gpsSerial.available()) {
    char gpsData = gpsSerial.read(); // Read one character at a time
    Serial.print(gpsData);           // Print GPS data to Serial Monitor
  }
}

Notes:

  • Replace 4 and 3 in SoftwareSerial with the actual pins connected to your GPS module.
  • Ensure the GPS module is compatible with the Antenna GPS Embedded SMA.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Weak or No GPS Signal:

    • Cause: The antenna is not positioned correctly or is obstructed.
    • Solution: Place the antenna in an open area with a clear view of the sky.
  2. Intermittent Signal Loss:

    • Cause: Electromagnetic interference or loose SMA connection.
    • Solution: Ensure the SMA connector is tightly secured and move the antenna away from EMI sources.
  3. High Current Draw:

    • Cause: Faulty GPS module or incorrect voltage supply.
    • Solution: Verify the voltage supply to the GPS module and ensure it matches the specifications.
  4. No Data from GPS Module:

    • Cause: Incorrect wiring or baud rate mismatch.
    • Solution: Double-check the wiring and ensure the baud rate in the code matches the GPS module's default baud rate.

FAQs

Q1: Can this antenna be used indoors?
A1: While it can function indoors, GPS signal reception may be weak or unreliable due to obstructions like walls and ceilings.

Q2: Is the antenna compatible with all GPS modules?
A2: The antenna is compatible with most GPS modules that operate at 1575.42 MHz and have an SMA connector.

Q3: Can the cable length be extended?
A3: Yes, but using a longer cable may result in signal loss. Use high-quality, low-loss cables for extensions.

Q4: Does the antenna require additional power?
A4: No, the antenna draws power directly from the GPS module's SMA port.

By following this documentation, users can effectively integrate and troubleshoot the Antenna GPS Embedded SMA in their projects.
