How to Use Inductors: Examples, Pinouts, and Specs

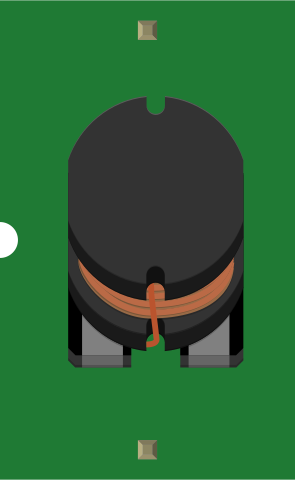

Inductors are passive electrical components that store energy in a magnetic field when electric current flows through them. They are typically made of a coil of wire wound around a core, which can be air, ferrite, or another magnetic material. Inductors are widely used in electronic circuits for their ability to resist changes in current, making them essential in filtering, energy storage, and tuning applications.

• Power Supplies: Used in DC-DC converters and voltage regulators for energy storage and filtering.
• Signal Filtering: Employed in low-pass, high-pass, and band-pass filters to block or pass specific frequency ranges.
• RF Circuits: Used in tuning circuits for radios, oscillators, and antennas.
• Transformers: Inductors are a key component in transformer design for voltage step-up or step-down.
• Energy Storage: Found in applications like inductive charging and flyback converters.

• Inductance (L): Measured in henries (H), typically in microhenries (µH) or millihenries (mH) for most applications.
• Current Rating: Maximum current the inductor can handle without overheating or saturating.
• DC Resistance (DCR): The resistance of the wire used in the inductor, measured in ohms (Ω).
• Saturation Current: The current at which the core material saturates, reducing inductance.
• Self-Resonant Frequency (SRF): The frequency at which the inductor's parasitic capacitance resonates with its inductance.
• Core Material: Air, ferrite, powdered iron, or other materials, which affect performance and efficiency.

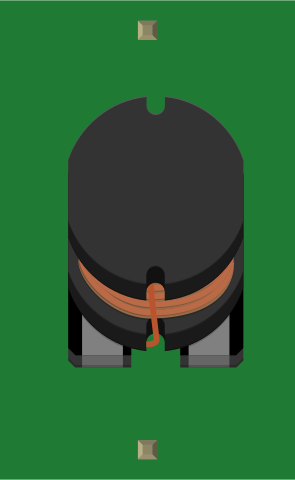

Inductors are typically two-terminal components. Below is a general description of the terminals:

For surface-mount inductors, the pins are often labeled as A and B, or they may not have explicit markings since polarity does not matter for inductors.

1. Determine the Required Inductance: Calculate the inductance value needed for your application using formulas or circuit design tools.
2. Select the Right Inductor: Choose an inductor with appropriate inductance, current rating, and core material for your circuit.
3. Connect in Series or Parallel: Inductors can be connected in series to increase total inductance or in parallel to decrease it.
4. Place in the Circuit: For filtering applications, place the inductor in series with the load or in parallel with a capacitor to form an LC filter.
5. Avoid Saturation: Ensure the current through the inductor does not exceed its saturation current rating.

• Core Selection: Use ferrite cores for high-frequency applications and powdered iron cores for low-frequency, high-current applications.
• Parasitic Effects: Be aware of parasitic capacitance and resistance, which can affect performance at high frequencies.
• Thermal Management: Ensure adequate cooling to prevent overheating, especially in high-current applications.
• Placement: Keep inductors away from sensitive components to avoid electromagnetic interference (EMI).

Below is an example of using an inductor in a simple LC filter circuit to smooth a PWM signal from an Arduino UNO:

/*
  Example: Using an LC filter with an Arduino UNO
  This code generates a PWM signal on pin 9, which is smoothed using an LC filter.
  The LC filter consists of an inductor (e.g., 100 µH) and a capacitor (e.g., 10 µF).
*/

const int pwmPin = 9; // PWM output pin

void setup() {
  pinMode(pwmPin, OUTPUT); // Set pin 9 as an output
}

void loop() {
  analogWrite(pwmPin, 128); // Generate a 50% duty cycle PWM signal
  delay(1000);              // Wait for 1 second
  analogWrite(pwmPin, 255); // Generate a 100% duty cycle PWM signal
  delay(1000);              // Wait for 1 second
}

Circuit Notes:

• Connect the inductor in series with the output of pin 9.
• Place the capacitor in parallel with the load to form the LC filter.
• Adjust the inductor and capacitor values based on the desired cutoff frequency.

1. Inductor Overheating:

   • Cause: Exceeding the current rating or poor thermal management.
   • Solution: Use an inductor with a higher current rating or improve cooling.

2. Unexpected Noise or EMI:

   • Cause: Poor placement or insufficient shielding.
   • Solution: Place the inductor away from sensitive components and use shielding if necessary.

3. Low Efficiency in High-Frequency Circuits:

   • Cause: Parasitic capacitance or core losses.
   • Solution: Use an inductor with a higher self-resonant frequency and a suitable core material.

4. Inductance Value Drift:

   • Cause: Core saturation or temperature changes.
   • Solution: Ensure the current stays below the saturation current and use temperature-stable inductors.

• Q: Can I use any inductor for high-frequency applications?

  • A: No, you need an inductor with a high self-resonant frequency and low core losses for high-frequency circuits.

• Q: How do I calculate the cutoff frequency of an LC filter?

  • A: Use the formula ( f_c = \frac{1}{2\pi\sqrt{L \cdot C}} ), where ( L ) is the inductance in henries and ( C ) is the capacitance in farads.

• Q: Does the orientation of an inductor matter?

  • A: No, inductors are non-polarized components, so orientation does not affect their operation.

• Q: What happens if I exceed the saturation current?

  • A: The inductance will decrease significantly, and the inductor may overheat or fail.

By following these guidelines and best practices, you can effectively use inductors in your electronic projects.
