How to Use NRF24L01: Examples, Pinouts, and Specs

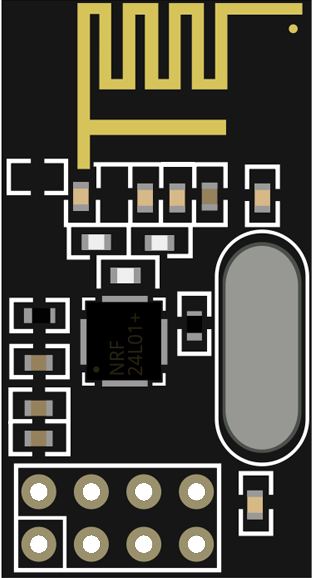

Image of NRF24L01
Cirkit Designer LogoDesign with NRF24L01 in Cirkit Designer

Introduction

The NRF24L01, manufactured by Nordic Semiconductor ASA (Part ID: NRF24L01-ND), is a low-power, 2.4 GHz wireless transceiver module designed for short-range communication. It is widely used in applications such as remote controls, wireless sensors, and IoT devices. The module supports multiple data rates (250 kbps, 1 Mbps, and 2 Mbps) and features a built-in packet handling system, making it a versatile and efficient solution for wireless communication.

Explore Projects Built with NRF24L01

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino 101 with NRF24L01 Wireless Communication Module
Image of RC Transmitter: A project utilizing NRF24L01 in a practical application
This circuit connects an Arduino 101 microcontroller to an NRF24L01 wireless transceiver module. The Arduino provides power, ground, and SPI communication lines to the NRF24L01, enabling wireless data transmission capabilities. The connections suggest that the Arduino can control the NRF24L01 to send and receive data wirelessly, likely for remote sensing or control applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano and NRF24L01 Based Wireless Remote Control
Image of P.T.S CAR , REMOTE , ADVANCE , FINAL V1: A project utilizing NRF24L01 in a practical application
This circuit features an Arduino Nano microcontroller interfaced with an NRF24L01 wireless transceiver module, powered by a 4 x AAA battery mount. Four pushbuttons are connected to the Arduino's digital inputs with pull-up resistors, and they are used to send different wireless commands via the NRF24L01 module when pressed. The Arduino's SPI interface (D11/MOSI, D12/MISO, D13/SCK) is used for communication with the NRF24L01, and digital pins D9 and D10 are used for the module's CE and CSN pins, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Wireless Communication System with nRF24L01 Module
Image of drone reciever: A project utilizing NRF24L01 in a practical application
This circuit connects an nRF24L01 wireless transceiver module to an Arduino Nano microcontroller through an adapter board. The Arduino Nano is configured to communicate with the nRF24L01 via SPI (Serial Peripheral Interface), using pins D9 and D10 for chip enable (CE) and chip select (CSN), and pins D11 to D13 for the SPI bus (MOSI, MISO, SCK). An electrolytic capacitor is connected across the power supply lines likely for power stabilization.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO with NRF24L01 Wireless Communication Module
Image of Nrf checker: A project utilizing NRF24L01 in a practical application
This circuit connects an Arduino UNO with an NRF24L01 wireless transceiver module. The Arduino provides power and SPI communication lines to the NRF24L01, enabling wireless data transmission. The code for the Arduino is currently a template with empty setup and loop functions, indicating that the specific functionality for the wireless communication has yet to be implemented.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with NRF24L01

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of RC Transmitter: A project utilizing NRF24L01 in a practical application
Arduino 101 with NRF24L01 Wireless Communication Module
This circuit connects an Arduino 101 microcontroller to an NRF24L01 wireless transceiver module. The Arduino provides power, ground, and SPI communication lines to the NRF24L01, enabling wireless data transmission capabilities. The connections suggest that the Arduino can control the NRF24L01 to send and receive data wirelessly, likely for remote sensing or control applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of P.T.S CAR , REMOTE , ADVANCE , FINAL V1: A project utilizing NRF24L01 in a practical application
Arduino Nano and NRF24L01 Based Wireless Remote Control
This circuit features an Arduino Nano microcontroller interfaced with an NRF24L01 wireless transceiver module, powered by a 4 x AAA battery mount. Four pushbuttons are connected to the Arduino's digital inputs with pull-up resistors, and they are used to send different wireless commands via the NRF24L01 module when pressed. The Arduino's SPI interface (D11/MOSI, D12/MISO, D13/SCK) is used for communication with the NRF24L01, and digital pins D9 and D10 are used for the module's CE and CSN pins, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of drone reciever: A project utilizing NRF24L01 in a practical application
Arduino Nano Wireless Communication System with nRF24L01 Module
This circuit connects an nRF24L01 wireless transceiver module to an Arduino Nano microcontroller through an adapter board. The Arduino Nano is configured to communicate with the nRF24L01 via SPI (Serial Peripheral Interface), using pins D9 and D10 for chip enable (CE) and chip select (CSN), and pins D11 to D13 for the SPI bus (MOSI, MISO, SCK). An electrolytic capacitor is connected across the power supply lines likely for power stabilization.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Nrf checker: A project utilizing NRF24L01 in a practical application
Arduino UNO with NRF24L01 Wireless Communication Module
This circuit connects an Arduino UNO with an NRF24L01 wireless transceiver module. The Arduino provides power and SPI communication lines to the NRF24L01, enabling wireless data transmission. The code for the Arduino is currently a template with empty setup and loop functions, indicating that the specific functionality for the wireless communication has yet to be implemented.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Wireless sensor networks
  • Remote controls for consumer electronics
  • Internet of Things (IoT) devices
  • Home automation systems
  • Wireless data logging
  • Robotics and drones

Technical Specifications

The NRF24L01 module is designed to operate efficiently in the 2.4 GHz ISM band. Below are its key technical details:

Parameter Value
Operating Voltage 1.9V to 3.6V
Communication Protocol SPI (Serial Peripheral Interface)
Frequency Range 2.4 GHz ISM band
Data Rates 250 kbps, 1 Mbps, 2 Mbps
Maximum Output Power 0 dBm
Sensitivity -94 dBm at 250 kbps
Operating Current 11.3 mA (transmit at 0 dBm)
Standby Current 22 µA
Sleep Mode Current 900 nA
Maximum Payload Size 32 bytes
Number of Data Pipes 6 (multi-receiver capability)
Range (Line of Sight) Up to 100 meters

Pin Configuration

The NRF24L01 module has 8 pins, as described in the table below:

Pin Name Description
1 GND Ground connection
2 VCC Power supply (1.9V to 3.6V)
3 CE Chip Enable: Activates RX or TX mode
4 CSN Chip Select Not: SPI chip select (active low)
5 SCK Serial Clock: SPI clock input
6 MOSI Master Out Slave In: SPI data input
7 MISO Master In Slave Out: SPI data output
8 IRQ Interrupt Request: Active low, indicates data received or transmission complete

Usage Instructions

Connecting the NRF24L01 to an Arduino UNO

To use the NRF24L01 module with an Arduino UNO, connect the pins as follows:

NRF24L01 Pin Arduino UNO Pin
GND GND
VCC 3.3V
CE Digital Pin 9
CSN Digital Pin 10
SCK Digital Pin 13
MOSI Digital Pin 11
MISO Digital Pin 12
IRQ Not connected (optional)

Important: The NRF24L01 module operates at 3.3V. Connecting it directly to a 5V power source may damage the module. Use the 3.3V pin on the Arduino UNO or a voltage regulator.

Example Code for Arduino UNO

Below is an example of how to use the NRF24L01 module to send and receive data using the popular RF24 library:

#include <SPI.h>
#include <nRF24L01.h>
#include <RF24.h>

// Define CE and CSN pins
#define CE_PIN 9
#define CSN_PIN 10

// Create an RF24 object
RF24 radio(CE_PIN, CSN_PIN);

// Define the address for communication
const byte address[6] = "00001";

void setup() {
  Serial.begin(9600); // Initialize serial communication
  radio.begin();      // Initialize the NRF24L01 module
  radio.openWritingPipe(address); // Set the address for transmission
  radio.setPALevel(RF24_PA_LOW);  // Set power level to low
  radio.stopListening();          // Set module to transmit mode
}

void loop() {
  const char text[] = "Hello, World!"; // Data to send
  bool success = radio.write(&text, sizeof(text)); // Send data

  if (success) {
    Serial.println("Data sent successfully!");
  } else {
    Serial.println("Data transmission failed.");
  }

  delay(1000); // Wait 1 second before sending again
}

Best Practices

  1. Use a decoupling capacitor (e.g., 10 µF) between the VCC and GND pins to stabilize the power supply.
  2. Avoid long wires for SPI connections to minimize signal degradation.
  3. Use a dedicated 3.3V power source if the Arduino's 3.3V pin cannot supply sufficient current.
  4. Place the module away from sources of interference, such as motors or high-frequency circuits.

Troubleshooting and FAQs

Common Issues

  1. No communication between modules:

    • Ensure both modules are using the same address and data rate.
    • Verify the wiring and connections.
    • Check that the power supply is stable and within the specified range.
  2. Data transmission fails intermittently:

    • Reduce the data rate to improve reliability in noisy environments.
    • Ensure the modules are within the specified range and have a clear line of sight.
  3. Module not responding:

    • Confirm that the CE and CSN pins are correctly connected to the Arduino.
    • Check for loose or faulty connections.

FAQs

  1. Can the NRF24L01 module communicate with Bluetooth devices?

    • No, the NRF24L01 uses a proprietary 2.4 GHz protocol and is not compatible with Bluetooth.
  2. What is the maximum range of the NRF24L01?

    • The range is up to 100 meters in line-of-sight conditions. Obstacles and interference can reduce the range.
  3. Can I use multiple NRF24L01 modules in the same network?

    • Yes, the module supports up to 6 data pipes, allowing multiple devices to communicate simultaneously.
  4. Why is the module not working with a 5V power supply?

    • The NRF24L01 operates at 3.3V. Using a 5V power supply can damage the module. Always use a 3.3V source.

By following this documentation, you can effectively integrate the NRF24L01 module into your projects for reliable wireless communication.
