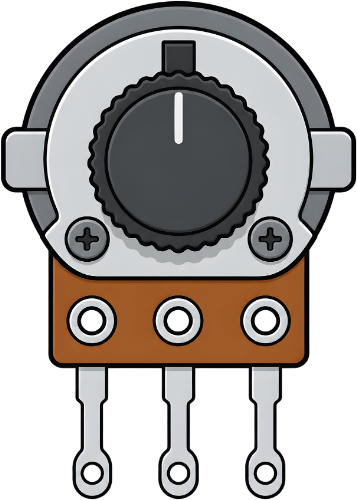

Image of Potentiometer
Cirkit Designer LogoDesign with Potentiometer in Cirkit Designer

Introduction

The Potentiometer by LI Blocks is a variable resistor designed to adjust voltage levels in a circuit. By varying its resistance, it allows for precise control of current flow and signal levels. This component is widely used in applications such as volume control, brightness adjustment, and sensor calibration. Its versatility makes it an essential component in both analog and digital electronics.

Explore Projects Built with Potentiometer

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino 101 Analog Input Control with Trimmer Potentiometer
Image of Analog read potentiometer: A project utilizing Potentiometer in a practical application
This circuit features an Arduino 101 connected to a trimmer potentiometer. The potentiometer is used as a voltage divider, with one end connected to the Arduino's VIN for power, the wiper connected to analog input A0 for variable voltage reading, and the other end connected to GND. This setup allows the Arduino to read the position of the potentiometer's wiper as an analog value.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Potentiometer Analog Input Project
Image of lesson 7: A project utilizing Potentiometer in a practical application
This circuit consists of an Arduino UNO microcontroller connected to a potentiometer. The potentiometer's VCC and GND pins are connected to the 5V and GND pins of the Arduino, respectively, and its output is connected to the A1 analog input pin of the Arduino, allowing the Arduino to read varying voltage levels from the potentiometer.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO R4 WiFi Analog Input with Potentiometer
Image of potentiometer: A project utilizing Potentiometer in a practical application
This circuit consists of a potentiometer connected to an Arduino UNO R4 WiFi. The potentiometer's ground and VCC are connected to the Arduino's ground and 5V pins, respectively, and its output is connected to the Arduino's analog input A0. The purpose of this circuit is likely to read the variable resistance from the potentiometer as an analog voltage, which can be used by the Arduino for various control applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Analog Input with Trimmer Potentiometer
Image of Potenciometer: A project utilizing Potentiometer in a practical application
This circuit features an Arduino UNO connected to a trimmer potentiometer. The potentiometer's adjustable output is fed into the Arduino's analog input A0 for voltage measurement, enabling the microcontroller to monitor or control an analog parameter.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Potentiometer

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Analog read potentiometer: A project utilizing Potentiometer in a practical application
Arduino 101 Analog Input Control with Trimmer Potentiometer
This circuit features an Arduino 101 connected to a trimmer potentiometer. The potentiometer is used as a voltage divider, with one end connected to the Arduino's VIN for power, the wiper connected to analog input A0 for variable voltage reading, and the other end connected to GND. This setup allows the Arduino to read the position of the potentiometer's wiper as an analog value.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of lesson 7: A project utilizing Potentiometer in a practical application
Arduino UNO Potentiometer Analog Input Project
This circuit consists of an Arduino UNO microcontroller connected to a potentiometer. The potentiometer's VCC and GND pins are connected to the 5V and GND pins of the Arduino, respectively, and its output is connected to the A1 analog input pin of the Arduino, allowing the Arduino to read varying voltage levels from the potentiometer.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of potentiometer: A project utilizing Potentiometer in a practical application
Arduino UNO R4 WiFi Analog Input with Potentiometer
This circuit consists of a potentiometer connected to an Arduino UNO R4 WiFi. The potentiometer's ground and VCC are connected to the Arduino's ground and 5V pins, respectively, and its output is connected to the Arduino's analog input A0. The purpose of this circuit is likely to read the variable resistance from the potentiometer as an analog voltage, which can be used by the Arduino for various control applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Potenciometer: A project utilizing Potentiometer in a practical application
Arduino UNO Analog Input with Trimmer Potentiometer
This circuit features an Arduino UNO connected to a trimmer potentiometer. The potentiometer's adjustable output is fed into the Arduino's analog input A0 for voltage measurement, enabling the microcontroller to monitor or control an analog parameter.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Audio volume control in amplifiers
  • Brightness adjustment in LED circuits
  • Calibration of sensors in microcontroller projects
  • Voltage divider circuits
  • Tuning and trimming in analog circuits

Technical Specifications

Below are the key technical details of the LI Blocks Potentiometer:

Parameter Value
Resistance Range 1 kΩ to 1 MΩ (varies by model)
Tolerance ±10%
Power Rating 0.25 W (typical)
Maximum Voltage 250 V DC
Operating Temperature -40°C to +85°C
Adjustment Type Rotary or Linear
Shaft Length 15 mm
Mounting Type Through-hole or Panel Mount

Pin Configuration and Descriptions

The potentiometer typically has three pins:

Pin Name Description
1 Terminal 1 One end of the resistive track. Connect to the voltage source or ground.
2 Wiper The adjustable middle pin. Outputs the variable voltage based on the knob's position.
3 Terminal 2 The other end of the resistive track. Connect to ground or the voltage source.

Usage Instructions

How to Use the Potentiometer in a Circuit

  1. Basic Voltage Divider Setup:

    • Connect Terminal 1 to the positive voltage source.
    • Connect Terminal 2 to ground.
    • The Wiper (Pin 2) will output a variable voltage depending on the knob's position.
  2. Adjusting Resistance:

    • Rotate the potentiometer's knob to change the resistance between the wiper and the terminals.
    • This adjustment can control current flow or signal levels in the circuit.
  3. Connecting to an Arduino UNO:

    • Use the potentiometer as an analog input to control parameters like LED brightness or motor speed.
    • Connect Terminal 1 to 5V, Terminal 2 to GND, and the Wiper to an analog input pin (e.g., A0).

Example Arduino Code

The following code demonstrates how to read the potentiometer's value and control an LED's brightness:

// Define pin connections
const int potPin = A0;  // Potentiometer wiper connected to analog pin A0
const int ledPin = 9;   // LED connected to digital pin 9 (PWM-enabled)

void setup() {
  pinMode(ledPin, OUTPUT);  // Set LED pin as output
  Serial.begin(9600);       // Initialize serial communication for debugging
}

void loop() {
  int potValue = analogRead(potPin);  // Read potentiometer value (0-1023)
  int ledBrightness = map(potValue, 0, 1023, 0, 255);
  // Map pot value to PWM range (0-255)

  analogWrite(ledPin, ledBrightness);  // Set LED brightness
  Serial.print("Potentiometer Value: ");
  Serial.println(potValue);  // Print pot value to Serial Monitor

  delay(10);  // Small delay for stability
}

Important Considerations and Best Practices

  • Power Rating: Ensure the potentiometer's power rating is not exceeded to avoid damage.
  • Debouncing: For precise applications, consider software or hardware debouncing to handle noise.
  • Mounting: Secure the potentiometer properly to prevent mechanical stress on the pins.
  • Linear vs. Logarithmic: Choose the appropriate type based on your application (e.g., logarithmic for audio).

Troubleshooting and FAQs

Common Issues

  1. No Output Voltage:

    • Ensure the potentiometer is connected correctly (check pin configuration).
    • Verify that the voltage source is functioning.
  2. Inconsistent or Noisy Output:

    • Dust or wear on the resistive track can cause noise. Clean the potentiometer or replace it if necessary.
    • Use a capacitor across the wiper and ground to filter noise.
  3. Overheating:

    • Check if the power rating is exceeded. Reduce the current or use a higher-rated potentiometer.
  4. Wiper Not Moving Smoothly:

    • Inspect for mechanical damage or debris. Lubricate the shaft if needed.

FAQs

Q: Can I use the potentiometer to directly control a motor?
A: No, the potentiometer cannot handle high currents required by motors. Use it to control a motor driver or PWM signal instead.

Q: What is the difference between linear and logarithmic potentiometers?
A: Linear potentiometers change resistance uniformly, while logarithmic ones change resistance exponentially, making them suitable for audio applications.

Q: How do I know the resistance value of my potentiometer?
A: The resistance value is usually printed on the body of the potentiometer (e.g., "10k" for 10 kΩ).

By following this documentation, you can effectively integrate the LI Blocks Potentiometer into your projects and troubleshoot common issues with ease.
