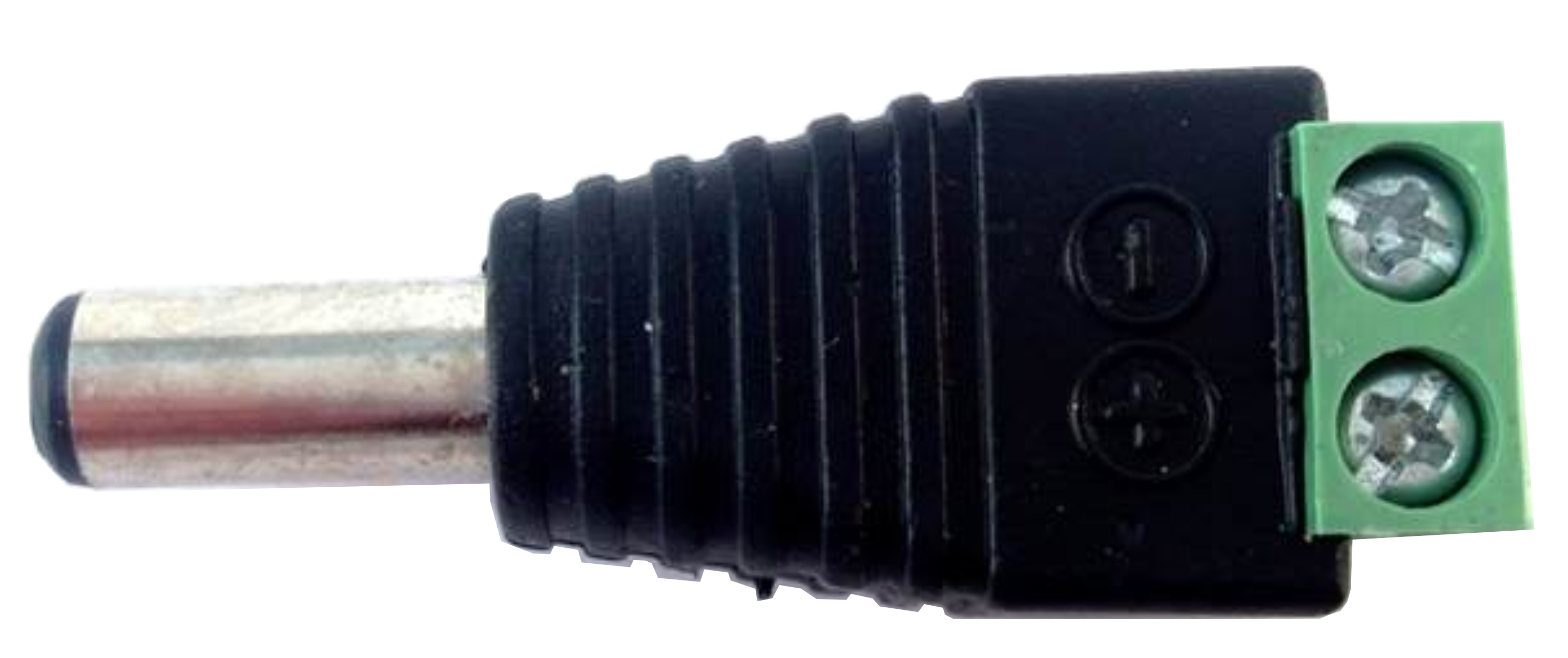

The Barrel Jack Male connector is a widely used component for supplying power to electronic devices from an external power adapter. It is commonly found in various consumer electronics, development boards, and DIY projects. The connector is designed to provide a secure and reliable connection, ensuring stable power delivery to the device.
Explore Projects Built with Barrel Jack Male
Open Project in Cirkit Designer
Open Project in Cirkit Designer
Open Project in Cirkit Designer
Open Project in Cirkit DesignerExplore Projects Built with Barrel Jack Male
Open Project in Cirkit DesignerOpen Project in Cirkit DesignerOpen Project in Cirkit DesignerOpen Project in Cirkit DesignerCommon Applications and Use Cases
- Powering development boards like Arduino, Raspberry Pi, and other microcontrollers
- Supplying power to consumer electronics such as routers, modems, and portable speakers
- DIY electronics projects requiring a stable power source
- Robotics and automation systems
Technical Specifications
Key Technical Details
| Parameter | Specification |
|---|---|
| Voltage Rating | 12V DC (typical), up to 24V DC |
| Current Rating | 2A (typical), up to 5A |
| Connector Type | Male Barrel Jack |
| Outer Diameter | 5.5mm |
| Inner Diameter | 2.1mm |
| Length | 14mm |
| Polarity | Center positive |
Pin Configuration and Descriptions
| Pin Number | Description | Function |
|---|---|---|
| 1 | Outer Sleeve (GND) | Ground connection |
| 2 | Inner Pin (VCC) | Positive voltage connection |
Usage Instructions
How to Use the Component in a Circuit
Identify the Polarity: Ensure that the power adapter you are using has the correct polarity. The center pin is typically positive (VCC), and the outer sleeve is ground (GND).
Connect to the Circuit:
- Solder the outer sleeve pin to the ground (GND) of your circuit.
- Solder the inner pin to the positive voltage (VCC) of your circuit.
Secure the Connection: Use heat shrink tubing or electrical tape to insulate the connections and prevent short circuits.
Important Considerations and Best Practices
- Voltage and Current Ratings: Ensure that the power adapter's voltage and current ratings match the requirements of your device.
- Polarity Check: Double-check the polarity before connecting the power adapter to avoid damaging your device.
- Secure Mounting: If the barrel jack is mounted on a PCB, ensure it is securely fastened to prevent mechanical stress on the solder joints.
Example: Connecting to an Arduino UNO
To power an Arduino UNO using a Barrel Jack Male connector, follow these steps:
- Identify the Power Input: Locate the power input jack on the Arduino UNO board.
- Connect the Power Adapter: Plug the Barrel Jack Male connector into the power input jack.
- Verify the Connection: Ensure the power LED on the Arduino UNO lights up, indicating a successful power connection.
Troubleshooting and FAQs
Common Issues Users Might Face
No Power to the Device:
- Solution: Check the power adapter's voltage and current ratings. Ensure the barrel jack is securely connected and the polarity is correct.
Device Overheating:
- Solution: Verify that the power adapter's voltage does not exceed the device's maximum voltage rating. Ensure proper ventilation and cooling for the device.
Intermittent Power Loss:
- Solution: Inspect the barrel jack and power adapter for loose connections or damaged wires. Secure the connections and replace any damaged components.
FAQs
Q1: Can I use a Barrel Jack Male connector with any power adapter? A1: Yes, as long as the voltage and current ratings of the power adapter match the requirements of your device and the polarity is correct.
Q2: What should I do if my device does not power on? A2: Check the power adapter's voltage and current ratings, ensure the barrel jack is securely connected, and verify the polarity.
Q3: Can I use a Barrel Jack Male connector for both AC and DC power? A3: No, Barrel Jack Male connectors are typically designed for DC power. Using them with AC power can damage your device.
Q4: How do I know if the polarity is correct? A4: Most power adapters have a polarity symbol indicating the center pin is positive (VCC) and the outer sleeve is ground (GND). Verify this before connecting.
By following this documentation, users can effectively utilize the Barrel Jack Male connector in their electronic projects, ensuring a stable and reliable power supply.
