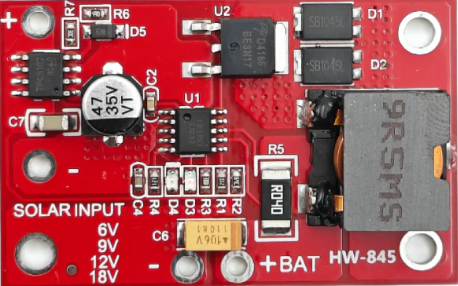

Image of cn3722
Cirkit Designer LogoDesign with cn3722 in Cirkit Designer

Introduction

The CN3722 is a high-efficiency, step-down (buck) voltage regulator designed for low-power applications. It supports a wide input voltage range and provides an adjustable output voltage, making it versatile for various electronic designs. The CN3722 is equipped with built-in protection features, including overcurrent protection and thermal shutdown, ensuring reliable operation in demanding environments. Its compact design and high efficiency make it ideal for battery-powered devices, portable electronics, and other compact systems requiring efficient power regulation.

Explore Projects Built with cn3722

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered Emergency Alert System with NUCLEO-F072RB, SIM800L, and GPS NEO 6M
Image of women safety: A project utilizing cn3722 in a practical application
This circuit is an emergency alert system that uses a NUCLEO-F072RB microcontroller to send SMS alerts and make calls via a SIM800L GSM module, while obtaining location data from a GPS NEO 6M module. The system is powered by a Li-ion battery and includes a TP4056 module for battery charging and protection, with a rocker switch to control power to the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based GPS Tracker with Bluetooth Connectivity and Camera Interface
Image of ESp32_gps: A project utilizing cn3722 in a practical application
This circuit features an ESP32 microcontroller interfaced with a Neo 6M GPS Module, an OV7725 camera module, an HC-05 Bluetooth Module, and a BT139 600 triac. The ESP32 is programmed to read GPS data from the Neo 6M module and likely transmit it via Bluetooth using the HC-05 module. The OV7725 camera module is connected to the ESP32 for image capture, and the BT139 600 triac is interfaced for controlling power to an unspecified load.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Controlled Bluetooth Robotic Vehicle with Ultrasonic Navigation
Image of BOAT 2: A project utilizing cn3722 in a practical application
This circuit is designed to remotely control two DC gearmotors using an Arduino UNO and an L298N motor driver, with an HC-05 Bluetooth module for wireless communication. It includes a JSN-SR04T ultrasonic sensor for distance measurement and a TM1637 display for output. Power management is handled by an 18650 Li-Ion battery and rocker switches.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Based GPS Tracker with GSM Communication and IR Obstacle Detection
Image of circuit1: A project utilizing cn3722 in a practical application
This circuit features an Arduino Nano interfaced with a SIM800L EVB GSM module for cellular communication, a GPS NEO 6M module for location tracking, and three TCRT 5000 IR sensors for object detection or line tracking. The Arduino facilitates data exchange between the GPS and GSM modules and processes signals from the IR sensors. The provided code skeleton suggests that the Arduino is programmed to perform tasks in a loop, but specific functionality is not detailed in the code.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with cn3722

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of women safety: A project utilizing cn3722 in a practical application
Battery-Powered Emergency Alert System with NUCLEO-F072RB, SIM800L, and GPS NEO 6M
This circuit is an emergency alert system that uses a NUCLEO-F072RB microcontroller to send SMS alerts and make calls via a SIM800L GSM module, while obtaining location data from a GPS NEO 6M module. The system is powered by a Li-ion battery and includes a TP4056 module for battery charging and protection, with a rocker switch to control power to the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ESp32_gps: A project utilizing cn3722 in a practical application
ESP32-Based GPS Tracker with Bluetooth Connectivity and Camera Interface
This circuit features an ESP32 microcontroller interfaced with a Neo 6M GPS Module, an OV7725 camera module, an HC-05 Bluetooth Module, and a BT139 600 triac. The ESP32 is programmed to read GPS data from the Neo 6M module and likely transmit it via Bluetooth using the HC-05 module. The OV7725 camera module is connected to the ESP32 for image capture, and the BT139 600 triac is interfaced for controlling power to an unspecified load.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of BOAT 2: A project utilizing cn3722 in a practical application
Arduino-Controlled Bluetooth Robotic Vehicle with Ultrasonic Navigation
This circuit is designed to remotely control two DC gearmotors using an Arduino UNO and an L298N motor driver, with an HC-05 Bluetooth module for wireless communication. It includes a JSN-SR04T ultrasonic sensor for distance measurement and a TM1637 display for output. Power management is handled by an 18650 Li-Ion battery and rocker switches.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of circuit1: A project utilizing cn3722 in a practical application
Arduino Nano-Based GPS Tracker with GSM Communication and IR Obstacle Detection
This circuit features an Arduino Nano interfaced with a SIM800L EVB GSM module for cellular communication, a GPS NEO 6M module for location tracking, and three TCRT 5000 IR sensors for object detection or line tracking. The Arduino facilitates data exchange between the GPS and GSM modules and processes signals from the IR sensors. The provided code skeleton suggests that the Arduino is programmed to perform tasks in a loop, but specific functionality is not detailed in the code.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Battery-powered devices
  • Portable electronics
  • IoT devices
  • Low-power embedded systems
  • LED drivers

Technical Specifications

Key Specifications

Parameter Value
Input Voltage Range 4.5V to 28V
Output Voltage Range Adjustable (0.8V to 20V)
Output Current Up to 2A
Efficiency Up to 95%
Switching Frequency 340 kHz
Operating Temperature -40°C to +85°C
Protection Features Overcurrent, Thermal Shutdown

Pin Configuration and Descriptions

The CN3722 is typically available in an 8-pin SOP package. Below is the pinout and description:

Pin Number Pin Name Description
1 VIN Input voltage supply (4.5V to 28V).
2 SW Switching node connected to the inductor.
3 GND Ground pin.
4 FB Feedback pin for output voltage adjustment.
5 EN Enable pin. High to enable, low to disable.
6 COMP Compensation pin for stability adjustment.
7 NC No connection (leave floating or grounded).
8 VCC Internal power supply for the IC.

Usage Instructions

How to Use the CN3722 in a Circuit

  1. Input Voltage: Connect a DC voltage source (4.5V to 28V) to the VIN pin. Ensure the input voltage is within the specified range.
  2. Output Voltage Adjustment: Use a resistor divider network connected to the FB pin to set the desired output voltage. The formula for the output voltage is: [ V_{OUT} = V_{REF} \times \left(1 + \frac{R1}{R2}\right) ] where ( V_{REF} ) is typically 0.8V.
  3. Inductor Selection: Choose an inductor with a suitable current rating (greater than the output current) and low DC resistance for optimal efficiency.
  4. Capacitor Selection: Use low ESR capacitors for input and output filtering to minimize voltage ripple.
  5. Enable Pin: Pull the EN pin high to enable the regulator. Pull it low to disable the output.
  6. Compensation: Connect a capacitor and resistor to the COMP pin to stabilize the feedback loop.

Important Considerations

  • Ensure proper heat dissipation by using a PCB with adequate thermal management (e.g., thermal vias, copper planes).
  • Avoid exceeding the maximum input voltage or output current ratings to prevent damage.
  • Use proper decoupling capacitors close to the VIN and VCC pins to reduce noise.

Example: Using CN3722 with Arduino UNO

The CN3722 can be used to power an Arduino UNO by stepping down a higher voltage (e.g., 12V) to 5V. Below is an example circuit and Arduino code:

Circuit Setup

  • Connect a 12V DC power supply to the VIN pin of the CN3722.
  • Set the output voltage to 5V using a resistor divider on the FB pin.
  • Connect the 5V output to the Arduino UNO's 5V pin.

Arduino Code

// Example code to blink an LED using Arduino UNO powered by CN3722
// Ensure the CN3722 output is set to 5V before connecting to the Arduino.

const int ledPin = 13; // Built-in LED pin on Arduino UNO

void setup() {
  pinMode(ledPin, OUTPUT); // Set LED pin as output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage

    • Cause: EN pin is not pulled high.
    • Solution: Ensure the EN pin is connected to a high logic level (e.g., VIN).
  2. Excessive Heat

    • Cause: Overloading the regulator or insufficient heat dissipation.
    • Solution: Reduce the load current or improve PCB thermal design.
  3. Output Voltage Instability

    • Cause: Incorrect compensation network or poor capacitor selection.
    • Solution: Verify the compensation network and use low ESR capacitors.
  4. High Output Ripple

    • Cause: Insufficient input/output filtering.
    • Solution: Add or replace capacitors with higher capacitance and lower ESR.

FAQs

Q: Can the CN3722 be used for 3.3V output?
A: Yes, the CN3722 can be configured for 3.3V output by selecting appropriate resistor values for the feedback network.

Q: What is the maximum load current?
A: The CN3722 supports a maximum load current of 2A.

Q: Is the CN3722 suitable for battery charging applications?
A: While the CN3722 is primarily a step-down regulator, it can be used in battery charging circuits with proper design considerations.

Q: How do I calculate the inductor value?
A: The inductor value depends on the input voltage, output voltage, switching frequency, and load current. Refer to the CN3722 datasheet for detailed calculations.

This concludes the CN3722 documentation. For further details, consult the official datasheet or application notes.
