How to Use 1N5819: Examples, Pinouts, and Specs

The 1N5819 is a Schottky diode manufactured by SCHOTTKY, designed for applications requiring low forward voltage drop and high-speed switching. Its unique characteristics make it an excellent choice for power rectification, voltage clamping, and reverse polarity protection in electronic circuits. The 1N5819 is widely used in power supplies, DC-DC converters, and solar panel systems due to its efficiency and reliability.

• Power rectification in AC-DC converters
• Voltage clamping to protect sensitive components
• Reverse polarity protection in circuits
• Freewheeling diodes in motor control systems
• Solar panel bypass diodes

Below are the key technical details of the 1N5819 Schottky diode:

The 1N5819 is a two-terminal device with the following pinout:

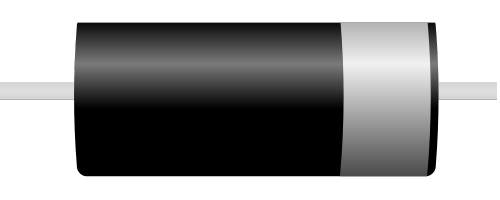

The cathode is typically marked with a silver or white band on the diode body.

1. Identify the Anode and Cathode: The cathode is marked with a silver or white band. Connect the anode to the positive side of the circuit and the cathode to the negative side.
2. Insert in the Correct Orientation: Ensure the diode is oriented correctly to allow current flow in the desired direction and block reverse current.
3. Use in Power Rectification: For AC-DC conversion, connect the 1N5819 in a bridge rectifier configuration or as a single rectifier diode.
4. Voltage Clamping: Place the diode across sensitive components to protect them from voltage spikes.
5. Reverse Polarity Protection: Connect the diode in series with the power supply to prevent damage from reversed connections.

• Heat Dissipation: Ensure adequate heat dissipation when operating near the maximum current rating. Use a heatsink or proper ventilation if necessary.
• Voltage Ratings: Do not exceed the maximum reverse voltage (40V) to avoid breakdown.
• Current Ratings: Operate within the specified forward current (1A) to prevent overheating or damage.

The 1N5819 can be used to protect an Arduino UNO from reverse polarity. Below is an example circuit and code:

• Connect the anode of the 1N5819 to the positive terminal of the power supply.
• Connect the cathode to the VIN pin of the Arduino UNO.
• Connect the negative terminal of the power supply to the GND pin of the Arduino.

// Example code to blink an LED connected to Arduino UNO
// This assumes the 1N5819 is used for reverse polarity protection.

const int ledPin = 13; // Built-in LED pin on Arduino UNO

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

1. Diode Overheating:

   • Cause: Exceeding the maximum forward current or insufficient heat dissipation.
   • Solution: Reduce the current load or add a heatsink.

2. No Current Flow:

   • Cause: Incorrect orientation of the diode.
   • Solution: Verify the anode and cathode connections.

3. High Reverse Leakage Current:

   • Cause: Operating near the maximum reverse voltage or at high temperatures.
   • Solution: Ensure the reverse voltage is well below 40V and operate within the recommended temperature range.

4. Circuit Not Working as Expected:

   • Cause: Faulty or damaged diode.
   • Solution: Test the diode with a multimeter and replace if necessary.

Q1: Can the 1N5819 handle AC signals?
A1: Yes, the 1N5819 can rectify AC signals when used in a rectifier circuit. However, ensure the peak AC voltage does not exceed the diode's reverse voltage rating (40V).

Q2: What makes the 1N5819 different from a standard diode?
A2: The 1N5819 has a lower forward voltage drop (0.45V) and faster switching speed, making it more efficient for power applications compared to standard diodes.

Q3: Can I use the 1N5819 for high-frequency applications?
A3: Yes, the 1N5819 is suitable for high-frequency applications due to its fast switching characteristics.

Q4: Is the 1N5819 suitable for automotive applications?
A4: Yes, the 1N5819 can be used in automotive circuits, provided the voltage and current ratings are within the diode's specifications.
