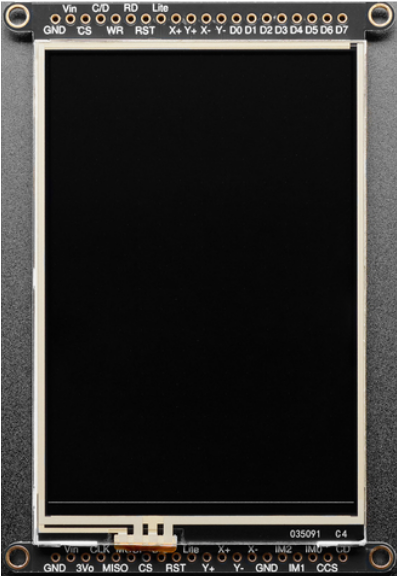

The 3.5" TFT 320x480 + Touchscreen Breakout Board w/MicroSD Socket - HX8357D (Adafruit Part ID: 2050) is a versatile display module designed for embedded systems and graphical user interface (GUI) applications. It features a 3.5-inch TFT display with a resolution of 320x480 pixels, a resistive touchscreen for user interaction, and an integrated MicroSD card socket for external storage. This component is ideal for projects requiring vibrant graphics, touch input, and data storage, such as IoT devices, handheld controllers, and portable displays.

• Embedded systems with graphical user interfaces
• IoT dashboards and control panels
• Portable gaming devices
• Data visualization and monitoring systems
• Educational and prototyping projects

The breakout board has multiple pins for power, data, and control. Below is the pinout:

To use the 3.5" TFT 320x480 + Touchscreen Breakout Board with an Arduino UNO, follow these steps:

1. Wiring the Display: Connect the pins of the breakout board to the Arduino UNO as shown below:

   Breakout Pin	Arduino Pin
   VIN	5V
   GND	GND
   CS	D10
   DC	D9
   MOSI	D11
   SCK	D13
   RESET	D8
   T_CS	D4
   T_IRQ	D3
   SD_CS	D5

2. Install Required Libraries:

   • Install the Adafruit_GFX and Adafruit_HX8357 libraries from the Arduino Library Manager.
   • For touchscreen functionality, install the Adafruit_STMPE610 library.
   • For MicroSD card functionality, install the SD library.

3. Example Code: Below is an example sketch to initialize the display and draw basic graphics:

   #include <Adafruit_GFX.h>       // Core graphics library
   #include <Adafruit_HX8357.h>   // HX8357 driver
   #include <Adafruit_STMPE610.h> // Touchscreen driver
   #include <SPI.h>               // SPI library

   // Define pins
   #define TFT_CS   10  // Chip select for the display
   #define TFT_DC   9   // Data/Command pin
   #define TFT_RST  8   // Reset pin
   #define TOUCH_CS 4   // Chip select for touchscreen

   // Initialize display and touchscreen
   Adafruit_HX8357 tft = Adafruit_HX8357(TFT_CS, TFT_DC, TFT_RST);
   Adafruit_STMPE610 touch = Adafruit_STMPE610(TOUCH_CS);

   void setup() {
     // Initialize serial communication
     Serial.begin(9600);
     Serial.println("Initializing...");

     // Initialize the display
     tft.begin();
     tft.fillScreen(HX8357_BLACK);
     tft.setCursor(0, 0);
     tft.setTextColor(HX8357_WHITE);
     tft.setTextSize(2);
     tft.println("Hello, HX8357!");

     // Initialize the touchscreen
     if (!touch.begin()) {
       Serial.println("Touchscreen not found!");
       while (1);
     }
     Serial.println("Touchscreen initialized.");
   }

   void loop() {
     // Check for touch input
     if (touch.touched()) {
       TS_Point p = touch.getPoint();
       Serial.print("Touch at: ");
       Serial.print(p.x);
       Serial.print(", ");
       Serial.println(p.y);
     }
   }


• Ensure the display is powered with a stable voltage (3.3V or 5V).
• Use level shifters if interfacing with 5V logic systems to avoid damaging the display.
• Avoid touching the screen with sharp objects to prevent damage to the resistive layer.
• Format the MicroSD card as FAT16 or FAT32 for compatibility.

1. The display does not turn on:

   • Verify all connections are secure and correct.
   • Ensure the VIN pin is receiving 3.3V or 5V.
   • Check if the RESET pin is properly connected.

2. Touchscreen is unresponsive:

   • Confirm the T_CS and T_IRQ pins are correctly connected.
   • Ensure the Adafruit_STMPE610 library is installed and initialized.

3. MicroSD card is not detected:

   • Verify the SD_CS pin connection.
   • Ensure the MicroSD card is formatted as FAT16 or FAT32.

4. Graphics appear distorted or incorrect:

   • Check the SPI connections (MOSI, SCK, CS, DC).
   • Ensure the correct driver (Adafruit_HX8357) is being used.

• Use a multimeter to check for continuity and proper voltage levels.
• Test the display with example sketches from the Adafruit_HX8357 library.
• Refer to the Adafruit forums for additional support and community advice.
