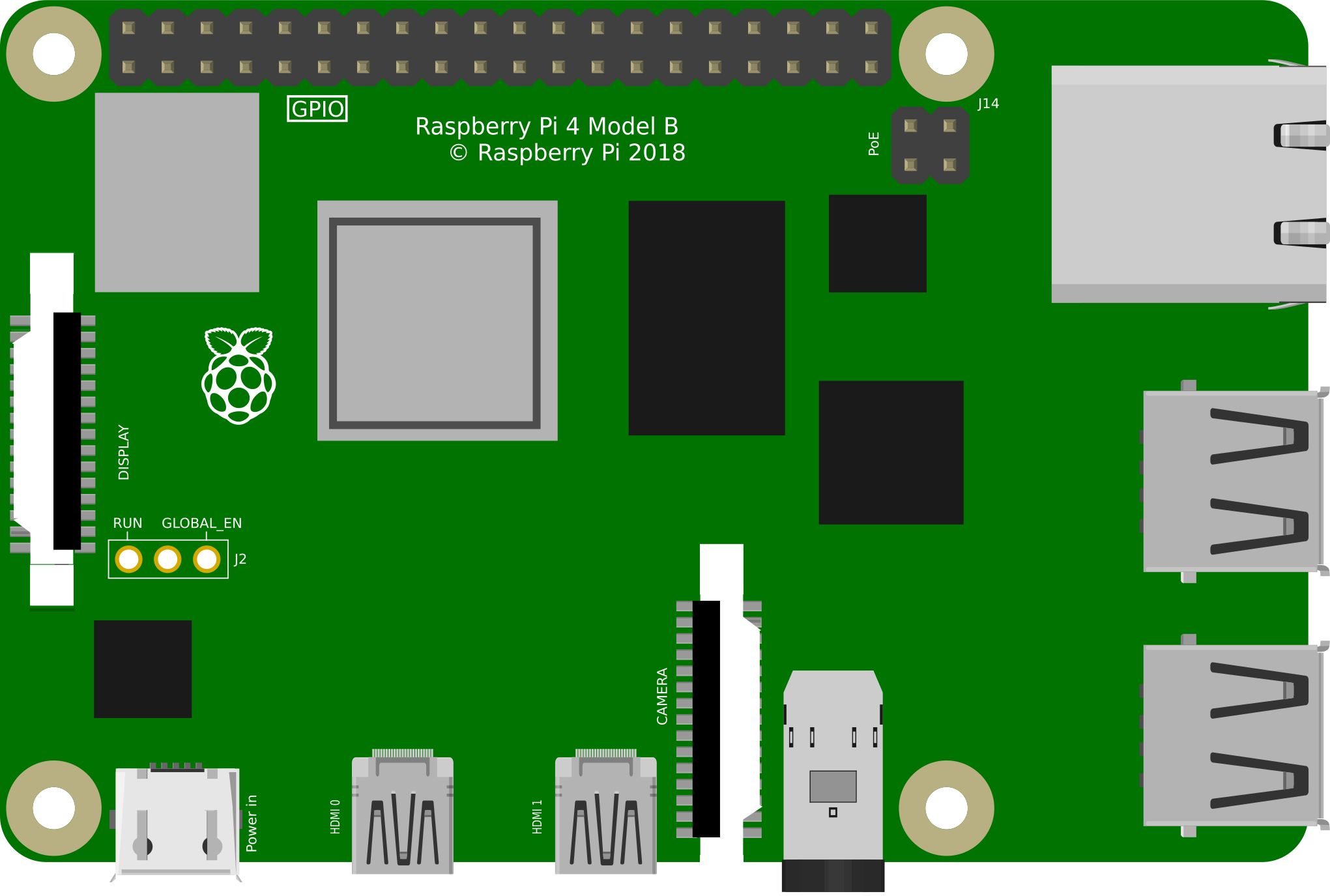

Image of Raspberry Pi
Cirkit Designer LogoDesign with Raspberry Pi in Cirkit Designer

Introduction

  • The Raspberry Pi is a small, affordable single-board computer designed for a wide range of applications. It is widely used in education, prototyping, and hobbyist projects due to its versatility and low cost.
  • Common applications include programming education, IoT (Internet of Things) projects, robotics, media streaming, home automation, and more. Its compact size and powerful processing capabilities make it suitable for both beginners and advanced users.

Explore Projects Built with Raspberry Pi

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Raspberry Pi 5 Smart Weather Station with GPS and AI Integration
Image of Senior Design: A project utilizing Raspberry Pi in a practical application
This circuit integrates a Raspberry Pi 5 with various peripherals including an 8MP 3D stereo camera, an AI Hat, a BMP388 sensor, a 16x2 I2C LCD, and an Adafruit Ultimate GPS module. The Raspberry Pi serves as the central processing unit, interfacing with the camera for image capture, the AI Hat for AI processing, the BMP388 for environmental sensing, the LCD for display, and the GPS module for location tracking, with a USB Serial TTL for serial communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 4B-Based Smart Surveillance System with GPS and Ultrasonic Sensing
Image of VisionTool: A project utilizing Raspberry Pi in a practical application
This circuit features a Raspberry Pi 4B as the central processing unit, interfacing with an Arducam camera module, an HC-SR04 ultrasonic sensor, a GPS NEO 6M module, and a speaker. The Raspberry Pi manages image capture, distance measurement, GPS data reception, and audio output. Power is supplied to the components from a 2000mAh battery, and the Raspberry Pi facilitates communication and control over the I2C, GPIO, and serial interfaces.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 5 RFID Access Control System with LCD Feedback and Dual Motor Control
Image of SpeedyPiMVP: A project utilizing Raspberry Pi in a practical application
This circuit features a Raspberry Pi 5 as the central controller, interfaced with an RFID-RC522 module for RFID reading capabilities and a 16x2 LCD display for output visualization. The Raspberry Pi controls two DC motors via an L293D motor driver, with speed or direction potentially adjusted by a trimmer potentiometer. Power regulation is managed by an XL6009 voltage regulator, and multiple 9V batteries are used to supply power to the system.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi & Arduino Mega Controlled Robotic Automation System
Image of Corridorus: A project utilizing Raspberry Pi in a practical application
This circuit features a Raspberry Pi 4B and two Arduino Mega 2560 microcontrollers as central processing units, interfacing with a variety of sensors and actuators. The Raspberry Pi is connected to an Arducam module and controls a servo motor, while the Arduinos interface with a BMP280 sensor, ultrasonic sensor, IR sensor, DC motors via an L298N driver, stepper motor, water level sensor, voltage sensor, and multiple servos. The system likely serves as a complex control unit for an automated process involving image capture, distance measurement, motor control, and environmental monitoring.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Raspberry Pi

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Senior Design: A project utilizing Raspberry Pi in a practical application
Raspberry Pi 5 Smart Weather Station with GPS and AI Integration
This circuit integrates a Raspberry Pi 5 with various peripherals including an 8MP 3D stereo camera, an AI Hat, a BMP388 sensor, a 16x2 I2C LCD, and an Adafruit Ultimate GPS module. The Raspberry Pi serves as the central processing unit, interfacing with the camera for image capture, the AI Hat for AI processing, the BMP388 for environmental sensing, the LCD for display, and the GPS module for location tracking, with a USB Serial TTL for serial communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of VisionTool: A project utilizing Raspberry Pi in a practical application
Raspberry Pi 4B-Based Smart Surveillance System with GPS and Ultrasonic Sensing
This circuit features a Raspberry Pi 4B as the central processing unit, interfacing with an Arducam camera module, an HC-SR04 ultrasonic sensor, a GPS NEO 6M module, and a speaker. The Raspberry Pi manages image capture, distance measurement, GPS data reception, and audio output. Power is supplied to the components from a 2000mAh battery, and the Raspberry Pi facilitates communication and control over the I2C, GPIO, and serial interfaces.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of SpeedyPiMVP: A project utilizing Raspberry Pi in a practical application
Raspberry Pi 5 RFID Access Control System with LCD Feedback and Dual Motor Control
This circuit features a Raspberry Pi 5 as the central controller, interfaced with an RFID-RC522 module for RFID reading capabilities and a 16x2 LCD display for output visualization. The Raspberry Pi controls two DC motors via an L293D motor driver, with speed or direction potentially adjusted by a trimmer potentiometer. Power regulation is managed by an XL6009 voltage regulator, and multiple 9V batteries are used to supply power to the system.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Corridorus: A project utilizing Raspberry Pi in a practical application
Raspberry Pi & Arduino Mega Controlled Robotic Automation System
This circuit features a Raspberry Pi 4B and two Arduino Mega 2560 microcontrollers as central processing units, interfacing with a variety of sensors and actuators. The Raspberry Pi is connected to an Arducam module and controls a servo motor, while the Arduinos interface with a BMP280 sensor, ultrasonic sensor, IR sensor, DC motors via an L298N driver, stepper motor, water level sensor, voltage sensor, and multiple servos. The system likely serves as a complex control unit for an automated process involving image capture, distance measurement, motor control, and environmental monitoring.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

  • Below are the general technical specifications for the Raspberry Pi 4 Model B (one of the most popular models). Specifications may vary slightly for other Raspberry Pi models.
Specification Details
Processor Quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
RAM Options 2GB, 4GB, or 8GB LPDDR4
Storage MicroSD card slot (supports booting and storage)
USB Ports 2 × USB 3.0, 2 × USB 2.0
HDMI Ports 2 × Micro HDMI (supports up to 4K resolution)
Networking Gigabit Ethernet, 802.11ac Wi-Fi, Bluetooth 5.0
GPIO Pins 40-pin header (3.3V logic, supports I2C, SPI, UART, and more)
Power Supply 5V/3A via USB-C or GPIO header
Dimensions 85.6mm × 56.5mm × 17mm
Operating System Raspberry Pi OS (Linux-based), supports other OS like Ubuntu and Windows IoT

GPIO Pin Configuration

The Raspberry Pi features a 40-pin GPIO (General Purpose Input/Output) header. Below is a simplified pinout table:

Pin Number Pin Name Description
1 3.3V Power 3.3V power supply
2 5V Power 5V power supply
3 GPIO2 (SDA1) I2C Data
4 5V Power 5V power supply
5 GPIO3 (SCL1) I2C Clock
6 Ground Ground
7 GPIO4 General-purpose I/O
8 GPIO14 (TXD) UART Transmit
9 Ground Ground
10 GPIO15 (RXD) UART Receive
... ... ...
39 Ground Ground
40 GPIO21 General-purpose I/O

For a complete GPIO pinout, refer to the official Raspberry Pi documentation.

Usage Instructions

  • Setting Up the Raspberry Pi:

    1. Insert a microSD card with a pre-installed operating system (e.g., Raspberry Pi OS).
    2. Connect peripherals such as a keyboard, mouse, and monitor via USB and HDMI ports.
    3. Power the Raspberry Pi using a 5V/3A USB-C power supply.
    4. Once powered on, follow the on-screen instructions to complete the setup.
  • Using GPIO Pins: The GPIO pins can be used to interface with sensors, LEDs, motors, and other electronic components. Below is an example of controlling an LED using Python:


Import the necessary library for GPIO control

import RPi.GPIO as GPIO import time

Set the GPIO mode to BCM (Broadcom pin numbering)

GPIO.setmode(GPIO.BCM)

Define the GPIO pin connected to the LED

LED_PIN = 18

Set the LED pin as an output

GPIO.setup(LED_PIN, GPIO.OUT)

Blink the LED in a loop

try: while True: GPIO.output(LED_PIN, GPIO.HIGH) # Turn the LED on time.sleep(1) # Wait for 1 second GPIO.output(LED_PIN, GPIO.LOW) # Turn the LED off time.sleep(1) # Wait for 1 second except KeyboardInterrupt: # Clean up GPIO settings when the program is interrupted GPIO.cleanup()


- **Important Considerations:**
  - Always ensure the Raspberry Pi is powered off before connecting or disconnecting hardware to avoid damage.
  - Use resistors when connecting LEDs or other components to GPIO pins to limit current and prevent damage.
  - Avoid exceeding the voltage and current ratings of the GPIO pins (3.3V logic, max 16mA per pin).

Troubleshooting and FAQs

  • Problem: Raspberry Pi does not boot.

    • Solution: Ensure the microSD card is properly inserted and contains a valid operating system image. Check the power supply for sufficient voltage and current.
  • Problem: GPIO pins are not working as expected.

    • Solution: Verify the GPIO pin numbering mode (BCM vs. BOARD) in your code. Check for loose connections or incorrect wiring.
  • Problem: Overheating during operation.

    • Solution: Use a heatsink or fan for cooling, especially during intensive tasks. Ensure proper ventilation around the Raspberry Pi.
  • Problem: Cannot connect to Wi-Fi.

    • Solution: Double-check the Wi-Fi credentials. Ensure the Raspberry Pi is within range of the router. Update the operating system to fix potential driver issues.
  • FAQ: Can I power the Raspberry Pi through the GPIO header?

    • Answer: Yes, you can supply 5V to the 5V and GND pins on the GPIO header, but ensure the power source is stable and regulated.
  • FAQ: What is the maximum resolution supported by the Raspberry Pi?

    • Answer: The Raspberry Pi 4 Model B supports dual 4K displays via its micro HDMI ports.

By following this documentation, users can effectively set up and utilize the Raspberry Pi for a variety of projects.
