How to Use Arduino UNO R3: Examples, Pinouts, and Specs

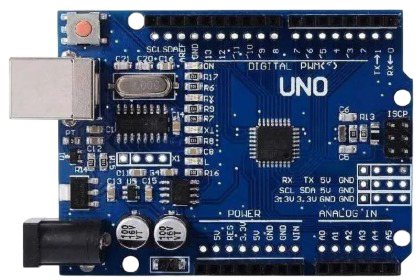

Image of Arduino UNO R3
Cirkit Designer LogoDesign with Arduino UNO R3 in Cirkit Designer

Introduction

The Arduino UNO R3, manufactured by Arduino (Part ID: UNO), is a microcontroller board based on the ATmega328P. It is one of the most popular and versatile development boards in the Arduino ecosystem, designed for both beginners and experienced developers. The board features 14 digital input/output pins (6 of which can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection for programming, a power jack, and a reset button.

The Arduino UNO R3 is widely used for prototyping and building interactive electronic projects, including robotics, IoT devices, and sensor-based systems. Its simplicity, open-source nature, and extensive community support make it an ideal choice for learning and implementing embedded systems.

Explore Projects Built with Arduino UNO R3

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino-Based Smart Water Level Monitoring and Control System
Image of Circuit: A project utilizing Arduino UNO R3 in a practical application
This circuit features multiple Arduino Uno R3 boards interfaced with various sensors, actuators, and modules. It includes ultrasonic sensors (HC-SR04) for distance measurement, a servo motor (MG996R) for actuation, a real-time clock (RTC DS3231), a GSM module (SIM 800L V2.0) for cellular communication, and an I2C LCD display for user interface. Additionally, the circuit controls a bilge pump via a 12V relay, powered by a 12V power supply, with AC mains integration for the pump.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Uno R3-Based Voice-Controlled Robot with Servo Actuation and SD Logging
Image of wheel: A project utilizing Arduino UNO R3 in a practical application
This circuit features an Arduino Uno R3 as the central microcontroller, interfaced with a variety of components. It includes a voice recognition module for audio input commands, an analog thumbstick for manual control, and multiple servos for actuation. Additionally, the circuit integrates an I2C LCD screen for display purposes, an infrared proximity sensor for distance measurement, and a micro SD card module for data storage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO R4 WiFi and Motor Shield Robotic System with LIDAR and Thermal Imaging
Image of Arduino Set up: A project utilizing Arduino UNO R3 in a practical application
This circuit is a robotic control system featuring an Arduino UNO R4 WiFi connected to a motor shield, two 775 motors, a Li-Ion battery, a TF LUNA LIDAR sensor, and an Adafruit AMG8833 thermal camera. The Arduino UNO R4 WiFi serves as the main controller, managing motor operations and sensor data acquisition for navigation and environmental sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based Access Control System with Data Logging
Image of Research Internal Design (2): A project utilizing Arduino UNO R3 in a practical application
This circuit features an Arduino UNO microcontroller as the central processing unit, interfacing with a variety of peripherals. It includes a red LED, a buzzer, an I2C LCD screen, a fingerprint scanner, a thermal printer, a real-time clock (RTC) module, and a micro SD card module. The Arduino controls these components to create a multifunctional system capable of user interaction, data logging, timekeeping, and biometric input processing.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino UNO R3

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Circuit: A project utilizing Arduino UNO R3 in a practical application
Arduino-Based Smart Water Level Monitoring and Control System
This circuit features multiple Arduino Uno R3 boards interfaced with various sensors, actuators, and modules. It includes ultrasonic sensors (HC-SR04) for distance measurement, a servo motor (MG996R) for actuation, a real-time clock (RTC DS3231), a GSM module (SIM 800L V2.0) for cellular communication, and an I2C LCD display for user interface. Additionally, the circuit controls a bilge pump via a 12V relay, powered by a 12V power supply, with AC mains integration for the pump.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of wheel: A project utilizing Arduino UNO R3 in a practical application
Arduino Uno R3-Based Voice-Controlled Robot with Servo Actuation and SD Logging
This circuit features an Arduino Uno R3 as the central microcontroller, interfaced with a variety of components. It includes a voice recognition module for audio input commands, an analog thumbstick for manual control, and multiple servos for actuation. Additionally, the circuit integrates an I2C LCD screen for display purposes, an infrared proximity sensor for distance measurement, and a micro SD card module for data storage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Arduino Set up: A project utilizing Arduino UNO R3 in a practical application
Arduino UNO R4 WiFi and Motor Shield Robotic System with LIDAR and Thermal Imaging
This circuit is a robotic control system featuring an Arduino UNO R4 WiFi connected to a motor shield, two 775 motors, a Li-Ion battery, a TF LUNA LIDAR sensor, and an Adafruit AMG8833 thermal camera. The Arduino UNO R4 WiFi serves as the main controller, managing motor operations and sensor data acquisition for navigation and environmental sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Research Internal Design (2): A project utilizing Arduino UNO R3 in a practical application
Arduino UNO-Based Access Control System with Data Logging
This circuit features an Arduino UNO microcontroller as the central processing unit, interfacing with a variety of peripherals. It includes a red LED, a buzzer, an I2C LCD screen, a fingerprint scanner, a thermal printer, a real-time clock (RTC) module, and a micro SD card module. The Arduino controls these components to create a multifunctional system capable of user interaction, data logging, timekeeping, and biometric input processing.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

Below are the key technical details of the Arduino UNO R3:

Specification Details
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (6 PWM outputs)
PWM Digital I/O Pins 6
Analog Input Pins 6
DC Current per I/O Pin 20 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 32 KB (0.5 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connector Type-B
Dimensions 68.6 mm x 53.4 mm
Weight 25 g

Pin Configuration and Descriptions

The Arduino UNO R3 has a total of 28 pins, including digital, analog, power, and communication pins. Below is a detailed description of the pin configuration:

Digital Pins

Pin Number Function Description
0 (RX) Digital I/O, Serial Receive Used for UART serial communication (RXD).
1 (TX) Digital I/O, Serial Transmit Used for UART serial communication (TXD).
2-13 Digital I/O General-purpose digital input/output pins.
3, 5, 6, 9, 10, 11 PWM Output Can output PWM signals for motor control, LEDs, etc.

Analog Pins

Pin Number Function Description
A0-A5 Analog Input Used to read analog signals (0-5V).

Power Pins

Pin Name Function Description
VIN Input Voltage External power input (7-12V recommended).
5V Regulated 5V Output Powers external components.
3.3V Regulated 3.3V Output Powers low-voltage components.
GND Ground Common ground for the circuit.
RESET Reset Resets the microcontroller.

Communication Pins

Pin Name Function Description
SDA I2C Data Used for I2C communication.
SCL I2C Clock Used for I2C communication.
SPI (10, 11, 12, 13) SPI Communication Used for SPI communication.

Usage Instructions

How to Use the Arduino UNO R3 in a Circuit

  1. Powering the Board:

    • Connect the Arduino UNO R3 to your computer using a USB Type-B cable for programming and power.
    • Alternatively, use an external power supply (7-12V) via the VIN pin or the DC power jack.
  2. Programming the Board:

    • Install the Arduino IDE from the official Arduino website.
    • Connect the board to your computer via USB.
    • Select the correct board type (Arduino UNO) and port in the Arduino IDE.
    • Write or load your program (sketch) and click the "Upload" button to transfer it to the board.
  3. Connecting Components:

    • Use the digital and analog pins to connect sensors, actuators, and other components.
    • Ensure that the total current drawn by the connected components does not exceed the board's limits.
  4. Using Communication Protocols:

    • Use the UART (pins 0 and 1), I2C (SDA and SCL), or SPI (pins 10, 11, 12, 13) pins to communicate with other devices.

Example: Blinking an LED

The following example demonstrates how to blink an LED connected to pin 13 of the Arduino UNO R3.

// This program blinks an LED connected to pin 13 of the Arduino UNO R3.
// The LED will turn on for 1 second and off for 1 second in a loop.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Important Considerations and Best Practices

  • Avoid drawing more than 20 mA from any single I/O pin to prevent damage.
  • Use external pull-up or pull-down resistors for stable digital input signals.
  • When using motors or high-power devices, use external power supplies and appropriate driver circuits.
  • Always double-check connections to avoid short circuits or incorrect wiring.

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is properly connected and functional.
    • Install the correct USB drivers for the Arduino UNO R3.
    • Check if the correct port is selected in the Arduino IDE.
  2. Program upload fails:

    • Verify that the correct board type (Arduino UNO) is selected in the Arduino IDE.
    • Ensure no other program is using the serial port.
    • Press the reset button on the board before uploading.
  3. The board is not powering on:

    • Check the power source and ensure it meets the voltage requirements.
    • Inspect the board for physical damage or loose connections.
  4. Components connected to the board are not working:

    • Verify the wiring and connections.
    • Check if the components are compatible with the Arduino UNO R3.
    • Use a multimeter to test for continuity and proper voltage levels.

FAQs

  • Can I power the Arduino UNO R3 with a battery? Yes, you can use a 9V battery connected to the DC power jack or the VIN pin.

  • What is the maximum current the board can supply? The 5V pin can supply up to 500 mA when powered via USB, and the 3.3V pin can supply up to 50 mA.

  • Can I use the Arduino UNO R3 for wireless communication? Yes, you can use external modules like the HC-05 Bluetooth module or ESP8266 Wi-Fi module for wireless communication.

  • Is the Arduino UNO R3 compatible with shields? Yes, the Arduino UNO R3 is compatible with most Arduino shields designed for the UNO form factor.

By following this documentation, you can effectively use the Arduino UNO R3 for a wide range of projects and applications.
