The Adafruit MPR121 (Part ID: 1982) is a capacitive touch sensor controller capable of detecting up to 12 touch inputs. This versatile component is ideal for creating touch-sensitive interfaces in a wide range of projects, from interactive art installations to custom control panels. It communicates via the I2C protocol, making it easy to integrate with microcontrollers like Arduino and Raspberry Pi.

• Touch-sensitive buttons and sliders
• Interactive art and installations
• Custom user interfaces
• Proximity sensing
• Wearable electronics

The Adafruit MPR121 is based on the MPR121 IC from NXP Semiconductors and comes on a breakout board for easy integration. Below are the key technical details:

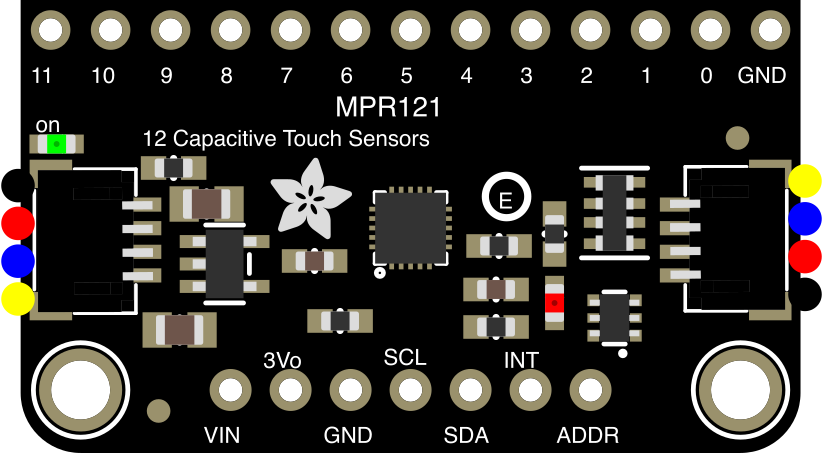

The Adafruit MPR121 breakout board has the following pin layout:

1. Power the MPR121: Connect the VIN pin to a 3.3V or 5V power source and the GND pin to ground.
2. Connect I2C Lines: Connect the SDA and SCL pins to the corresponding I2C pins on your microcontroller.
3. Optional Connections:
   • Connect the IRQ pin to a digital input pin on your microcontroller if you want to use interrupts.
   • Use the ADDR pin to change the I2C address if multiple MPR121 devices are used on the same bus.
4. Attach Electrodes: Connect conductive materials (e.g., copper tape, wires) to the touch input pins (labeled 0–11) to act as touch sensors.

• Pull-Up Resistors: Ensure that the I2C lines (SDA and SCL) have pull-up resistors (typically 4.7kΩ). Many microcontroller boards, like the Arduino UNO, already include these.
• Electrode Design: For optimal performance, use conductive materials with sufficient surface area for touch detection.
• Noise Reduction: Keep the sensor and electrodes away from high-frequency noise sources to avoid false triggers.
• Resetting the MPR121: If the sensor becomes unresponsive, toggle the RST pin or power cycle the device.

Below is an example of how to use the Adafruit MPR121 with an Arduino UNO. This code requires the Adafruit_MPR121 library, which can be installed via the Arduino Library Manager.

#include <Wire.h>
#include <Adafruit_MPR121.h>

// Create an instance of the MPR121 class
Adafruit_MPR121 cap = Adafruit_MPR121();

void setup() {
  Serial.begin(9600);
  while (!Serial) {
    // Wait for the serial monitor to open (for boards like Leonardo)
    delay(10);
  }

  Serial.println("Adafruit MPR121 Capacitive Touch Sensor Test");

  // Initialize the MPR121
  if (!cap.begin(0x5A)) {
    Serial.println("MPR121 not found. Check wiring or I2C address!");
    while (1);
  }
  Serial.println("MPR121 found!");
}

void loop() {
  // Read touch status
  uint16_t touched = cap.touched();

  // Print which electrodes are being touched
  for (uint8_t i = 0; i < 12; i++) {
    if (touched & (1 << i)) {
      Serial.print("Electrode ");
      Serial.print(i);
      Serial.println(" is being touched.");
    }
  }

  delay(100); // Small delay to avoid flooding the serial monitor
}

1. MPR121 Not Detected:

   • Ensure the I2C address is correct (default is 0x5A).
   • Check the wiring, especially the SDA and SCL connections.
   • Verify that pull-up resistors are present on the I2C lines.

2. False Touch Events:

   • Reduce electrical noise by keeping the sensor away from high-frequency sources.
   • Ensure proper grounding of the circuit.
   • Use shielded cables for long electrode connections.

3. No Touch Events Detected:

   • Verify that the electrodes are properly connected to the touch input pins.
   • Check the power supply voltage (3.3V to 5V).
   • Reset the MPR121 by toggling the RST pin.

Q: Can I use more than one MPR121 on the same I2C bus?
A: Yes, you can use up to four MPR121 devices by configuring the ADDR pin to set unique I2C addresses (0x5A, 0x5B, 0x5C, 0x5D).

Q: What materials can I use for the touch electrodes?
A: You can use any conductive material, such as copper tape, aluminum foil, or conductive fabric.

Q: Can the MPR121 detect proximity without physical touch?
A: Yes, the MPR121 can detect proximity if the electrode is large enough and the sensitivity settings are adjusted.

Q: Is the MPR121 compatible with 3.3V microcontrollers?
A: Yes, the MPR121 works with both 3.3V and 5V logic levels, making it compatible with a wide range of microcontrollers.
