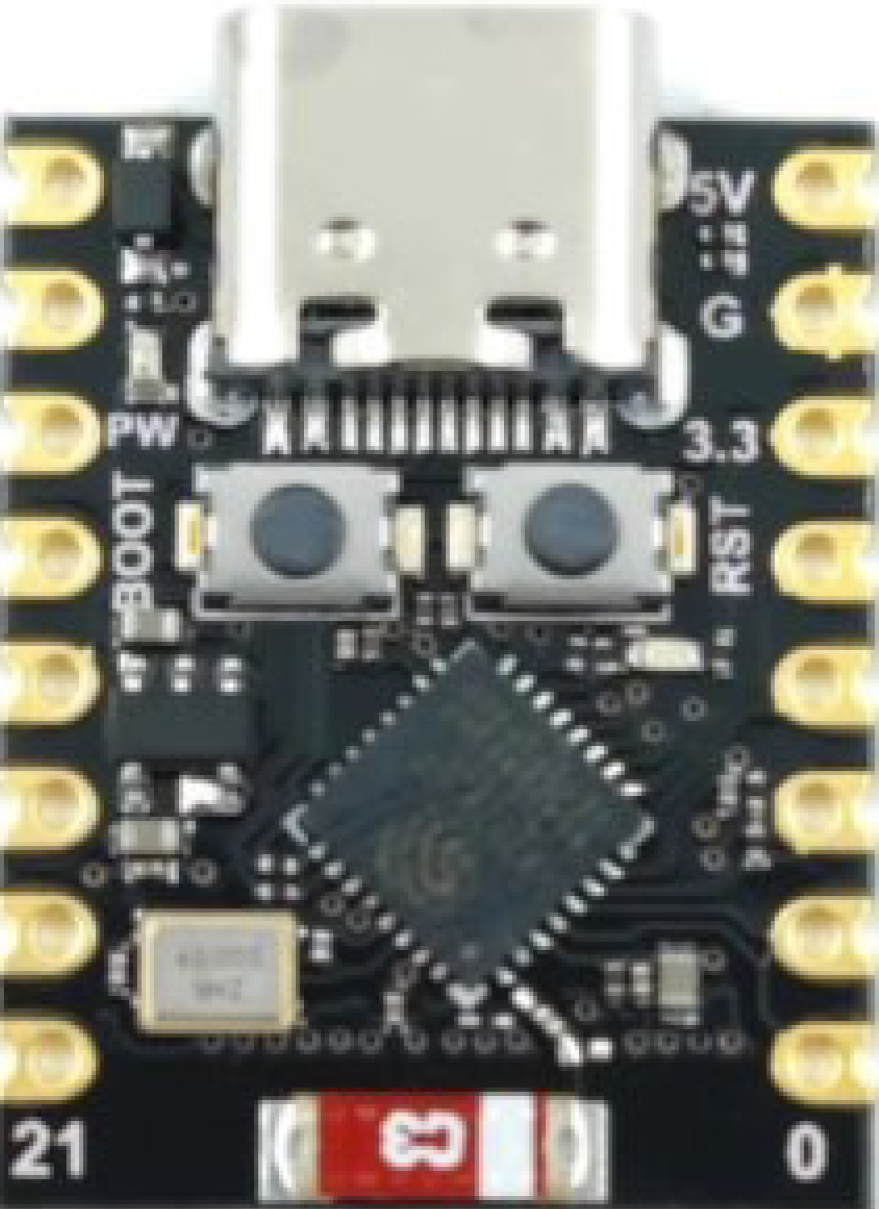

How to Use ESP32 C3 SuperMini: Examples, Pinouts, and Specs

The ESP32 C3 SuperMini is a compact and powerful microcontroller designed for IoT applications and embedded systems. It features integrated Wi-Fi and Bluetooth Low Energy (BLE) capabilities, making it an excellent choice for wireless communication projects. With its RISC-V architecture, low power consumption, and robust performance, the ESP32 C3 SuperMini is ideal for smart home devices, wearables, industrial automation, and more.

• IoT devices and smart home automation
• Wireless sensor networks
• Wearable technology
• Industrial control systems
• Prototyping and development of embedded systems

The following table outlines the key technical details of the ESP32 C3 SuperMini:

The ESP32 C3 SuperMini has a total of 22 GPIO pins, which can be configured for various functions. Below is the pinout description:

Note: Some GPIO pins have multiple functions. Refer to the ESP32 C3 datasheet for advanced configurations.

1. Powering the Module:

   • Connect the 5V pin to a USB power source or a regulated 5V supply.
   • Ensure the GND pin is connected to the ground of your circuit.

2. Programming the Module:

   • Use a USB-to-UART adapter to connect the ESP32 C3 SuperMini to your computer.
   • Install the necessary drivers and the ESP32 board package in the Arduino IDE or ESP-IDF.

3. Connecting Peripherals:

   • Use the GPIO pins to connect sensors, actuators, or other peripherals.
   • Configure the pins in your code according to the desired functionality (e.g., input, output, ADC).

4. Uploading Code:

   • Write your program in the Arduino IDE or ESP-IDF.
   • Select the correct board and port, then upload the code to the ESP32 C3 SuperMini.

The following example demonstrates how to blink an LED connected to GPIO2:

// Define the GPIO pin for the LED
#define LED_PIN 2

void setup() {
  // Set the LED pin as an output
  pinMode(LED_PIN, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(LED_PIN, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(LED_PIN, LOW);
  delay(1000); // Wait for 1 second
}

• Voltage Levels: Ensure all connected peripherals operate at 3.3V logic levels to avoid damaging the module.
• Deep Sleep Mode: Use deep sleep mode to minimize power consumption in battery-powered applications.
• Antenna Placement: Avoid placing metal objects near the onboard antenna to maintain optimal Wi-Fi and Bluetooth performance.

1. The ESP32 C3 SuperMini is not detected by the computer:

   • Ensure the USB cable is functional and supports data transfer.
   • Install the correct USB-to-UART driver for your operating system.

2. Code upload fails:

   • Check that the correct board and port are selected in the Arduino IDE.
   • Hold the BOOT button while pressing the RESET button to enter bootloader mode.

3. Wi-Fi connection issues:

   • Verify the SSID and password in your code.
   • Ensure the Wi-Fi network operates on the 2.4 GHz band (not 5 GHz).

Q: Can I power the ESP32 C3 SuperMini with a battery?
A: Yes, you can use a 3.7V LiPo battery with a suitable voltage regulator to provide 3.3V to the module.

Q: How do I reset the ESP32 C3 SuperMini?
A: Press the RESET button on the module to restart it.

Q: Can I use the ESP32 C3 SuperMini with MicroPython?
A: Yes, the ESP32 C3 SuperMini supports MicroPython. Flash the MicroPython firmware to the module and use a compatible IDE like Thonny.

Q: What is the maximum range of the Wi-Fi and Bluetooth?
A: The Wi-Fi range is approximately 30 meters indoors and 100 meters outdoors. Bluetooth range depends on environmental factors but typically reaches up to 10 meters.

By following this documentation, you can effectively integrate the ESP32 C3 SuperMini into your projects and troubleshoot common issues.
