How to Use Carte BMS 3S: Examples, Pinouts, and Specs

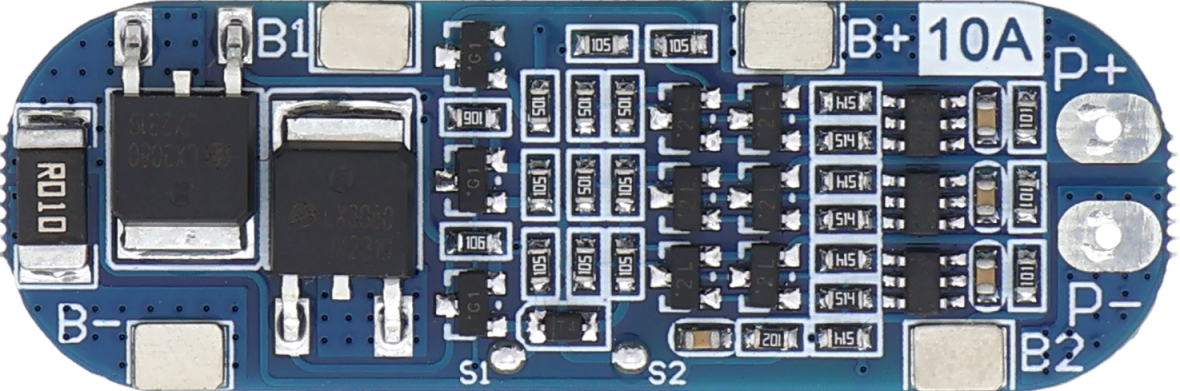

Image of Carte BMS 3SDesign with Carte BMS 3S in Cirkit Designer

Introduction

The Carte BMS 3S is a Battery Management System (BMS) designed specifically for 3-cell lithium-ion battery packs. It ensures the safe operation of the battery pack by managing charging, discharging, and monitoring the health and performance of the cells. This component is essential for protecting lithium-ion batteries from overcharging, over-discharging, and short circuits, thereby extending their lifespan and ensuring reliable operation.

Explore Projects Built with Carte BMS 3S

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Common Applications and Use Cases

Technical Specifications

The following table outlines the key technical specifications of the Carte BMS 3S:

Parameter Value
Manufacturer BMS
Manufacturer Part ID BMS
Supported Battery Type Lithium-Ion (Li-Ion)
Number of Cells Supported 3 (3S configuration)
Input Voltage Range 12.6V (max)
Overcharge Protection Voltage 4.25V ± 0.05V per cell
Over-discharge Protection Voltage 2.5V ± 0.05V per cell
Maximum Continuous Discharge Current 20A
Overcurrent Protection 25A ± 3A
Short Circuit Protection Yes
Balancing Current 50mA ± 10mA
Operating Temperature Range -40°C to +85°C
Dimensions 60mm x 20mm x 3mm

Pin Configuration and Descriptions

The Carte BMS 3S typically has the following pin configuration:

Pin Name Description
B+ Battery pack positive terminal
B- Battery pack negative terminal
P+ Output positive terminal (to load/charger)
P- Output negative terminal (to load/charger)
B1 Connection to the positive terminal of Cell 1
B2 Connection to the positive terminal of Cell 2
B3 Connection to the positive terminal of Cell 3

Usage Instructions

How to Use the Carte BMS 3S in a Circuit

  1. Connect the Battery Pack:

    • Connect the B+ pin to the positive terminal of the battery pack.
    • Connect the B- pin to the negative terminal of the battery pack.
    • Connect B1, B2, and B3 to the positive terminals of Cell 1, Cell 2, and Cell 3, respectively.

  2. Connect the Load and Charger:

    • Connect the P+ pin to the positive terminal of the load or charger.
    • Connect the P- pin to the negative terminal of the load or charger.

  3. Verify Connections:

    • Double-check all connections to ensure they are secure and correctly aligned with the pin configuration.

  4. Power On:

    • Once all connections are verified, power on the system. The BMS will automatically manage the charging and discharging processes.

Important Considerations and Best Practices

Example: Using the Carte BMS 3S with an Arduino UNO

The Carte BMS 3S can be monitored using an Arduino UNO to track battery voltage and status. Below is an example code snippet to read the voltage of the battery pack using an analog input pin:

// Arduino code to monitor battery voltage using Carte BMS 3S
const int voltagePin = A0; // Analog pin connected to the battery voltage divider
const float voltageDividerRatio = 5.7; // Adjust based on your resistor divider

void setup() {
  Serial.begin(9600); // Initialize serial communication
  pinMode(voltagePin, INPUT); // Set the voltage pin as input
}

void loop() {
  int analogValue = analogRead(voltagePin); // Read the analog value
  float batteryVoltage = (analogValue * 5.0 / 1023.0) * voltageDividerRatio;

  // Print the battery voltage to the Serial Monitor
  Serial.print("Battery Voltage: ");
  Serial.print(batteryVoltage);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

Note: Use a voltage divider circuit to step down the battery voltage to a safe range (0-5V) for the Arduino analog input pin. Adjust the voltageDividerRatio variable based on the resistor values used in your voltage divider.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Issue: The BMS does not power on.

    • Solution: Check all connections to ensure they are secure and correctly aligned. Verify that the battery pack is charged and properly connected.

  2. Issue: The battery pack is not charging.

    • Solution: Ensure the charger is functioning correctly and connected to the P+ and P- terminals. Verify that the input voltage does not exceed 12.6V.

  3. Issue: The BMS shuts down during operation.

    • Solution: Check if the load is exceeding the maximum continuous discharge current (20A). Reduce the load if necessary.

  4. Issue: Uneven cell voltages.

    • Solution: Allow the BMS to balance the cells over time. If the issue persists, manually balance the cells before reconnecting the BMS.

FAQs
