How to Use PM02: Examples, Pinouts, and Specs

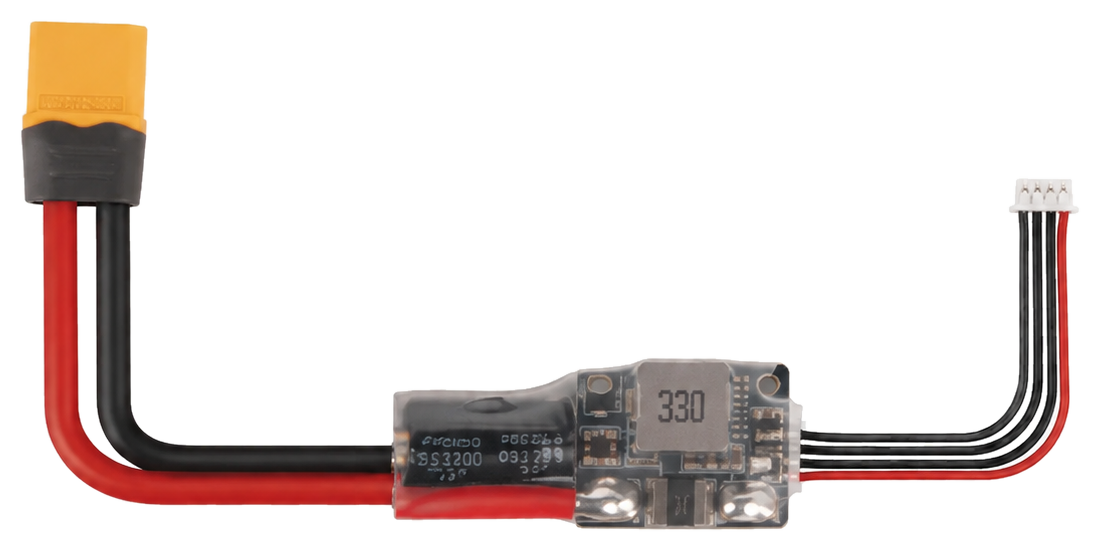

The PM02 is a power management module designed to regulate and distribute power efficiently in electronic circuits. It is commonly used in applications requiring stable voltage regulation, current limiting, and protection against overvoltage, overcurrent, and short circuits. The PM02 is ideal for powering microcontrollers, sensors, and other low-power devices in embedded systems, robotics, and IoT applications.

• Powering microcontrollers (e.g., Arduino, Raspberry Pi)
• Voltage regulation for sensors and actuators
• Battery-powered devices
• Protection circuits for sensitive electronics
• Robotics and automation systems

The PM02 module is designed to provide reliable power management with the following key specifications:

The PM02 module typically has the following pin layout:

1. Connect the Input Voltage (VIN):
   Supply a DC voltage between 6V and 24V to the VIN pin. Ensure the input voltage is within the specified range to avoid damaging the module.

2. Connect the Ground (GND):
   Connect the GND pin to the ground of your circuit.

3. Connect the Output Voltage (VOUT):
   Use the VOUT pin to power your load. The module will provide a stable 5V output.

4. Optional Enable Pin (EN):
   If the EN pin is available, connect it to a HIGH signal (e.g., 3.3V or 5V) to enable the module. Leave it unconnected or LOW to disable the output.

• Input Voltage Range: Ensure the input voltage is within the specified range (6V to 24V). Exceeding this range may damage the module.
• Heat Dissipation: For high current loads (close to 2A), ensure proper ventilation or heat sinking to prevent overheating.
• Load Requirements: Do not exceed the maximum output current of 2A to avoid triggering the overcurrent protection.
• Decoupling Capacitors: Add decoupling capacitors (e.g., 10µF and 0.1µF) near the VOUT pin for improved stability in sensitive circuits.

The PM02 can be used to power an Arduino UNO by providing a stable 5V supply. Below is an example circuit and Arduino code:

• Connect the PM02's VIN pin to a 9V battery or DC adapter.
• Connect the PM02's GND pin to the Arduino's GND pin.
• Connect the PM02's VOUT pin to the Arduino's 5V pin.

// Example code to blink an LED using Arduino UNO powered by PM02 module

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

1. No Output Voltage:

   • Cause: The input voltage is below 6V or the EN pin is not connected to HIGH.
   • Solution: Check the input voltage and ensure it is within the 6V to 24V range. If the EN pin is available, connect it to a HIGH signal.

2. Overheating:

   • Cause: The module is supplying a high current load without proper ventilation.
   • Solution: Reduce the load current or add a heat sink to the module.

3. Output Voltage Fluctuations:

   • Cause: Insufficient decoupling capacitors or unstable input voltage.
   • Solution: Add decoupling capacitors (e.g., 10µF and 0.1µF) near the VOUT pin and ensure the input voltage is stable.

4. Module Not Working:

   • Cause: Incorrect wiring or damaged module.
   • Solution: Double-check all connections and verify the module is not physically damaged.

Q: Can the PM02 output voltage be adjusted?
A: No, the PM02 provides a fixed 5V output and does not support adjustable voltage.

Q: Is the PM02 suitable for battery-powered applications?
A: Yes, the PM02 is ideal for battery-powered devices as it provides efficient voltage regulation and protection features.

Q: Can I use the PM02 to power a Raspberry Pi?
A: The PM02 can power a Raspberry Pi if the current requirement does not exceed 2A. However, ensure the input voltage is sufficient to meet the Raspberry Pi's power needs.

Q: What happens if the load exceeds 2A?
A: The PM02's overcurrent protection will activate, shutting down the output to protect the module and the connected devices.

This concludes the PM02 documentation. For further assistance, refer to the module's datasheet or contact the manufacturer.
