How to Use Type C USB Port: Examples, Pinouts, and Specs

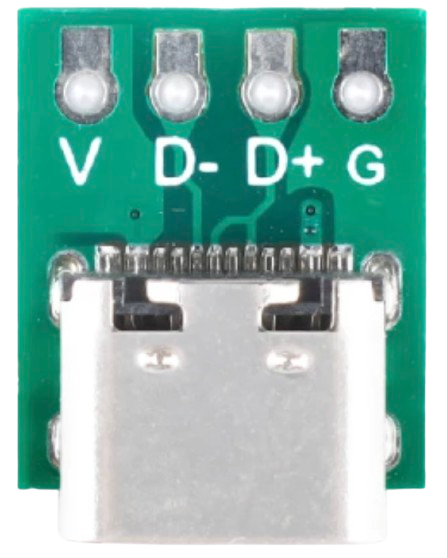

The Type C USB Port is a versatile and reversible connector designed for modern electronic devices. It supports high-speed data transfer, efficient power delivery, and is compatible with a wide range of devices, including smartphones, laptops, and peripherals. Unlike its predecessors, the Type C USB Port features a symmetrical design, allowing users to plug it in either way, eliminating frustration and improving usability.

• Charging and powering devices (e.g., smartphones, laptops, tablets)
• High-speed data transfer between devices
• Audio and video output (e.g., HDMI over USB-C)
• Peripheral connectivity (e.g., external hard drives, keyboards, and monitors)
• Universal connector for modern electronics

• Connector Type: USB Type-C
• Data Transfer Speeds: Up to 40 Gbps (with USB4 or Thunderbolt 4)
• Power Delivery: Up to 100W (20V, 5A) with USB Power Delivery (USB-PD)
• Reversible Design: Symmetrical connector for easy insertion
• Compatibility: Backward compatible with USB 2.0, 3.0, 3.1, and 3.2 (with adapters)
• Durability: Rated for 10,000+ insertion/removal cycles

The Type C USB Port has 24 pins, which are symmetrically arranged to support its reversible design. Below is a simplified pinout:

1. Power Delivery: Ensure your circuit design supports the required voltage and current levels. Use a USB-PD controller IC if advanced power delivery features are needed.
2. Data Transfer: Connect the appropriate TX/RX pins for high-speed data transfer. For USB 2.0 compatibility, connect the D+ and D- pins.
3. Alternate Modes: If using the port for video output (e.g., HDMI or DisplayPort), configure the SBU pins and ensure the device supports the required alternate mode.
4. Reversible Design: Use the CC pins to detect the orientation of the connector and adjust the circuit accordingly.

• Voltage Regulation: Use proper voltage regulators to ensure the VBUS line does not exceed the device's rated voltage.
• Overcurrent Protection: Include overcurrent protection circuits to prevent damage to the port and connected devices.
• Signal Integrity: Use high-quality PCB traces and minimize noise for high-speed data lines.
• Heat Management: For high-power applications, ensure adequate heat dissipation to prevent overheating.

While the Arduino UNO does not natively support USB-C, you can use a USB-C breakout board to interface with it. Below is an example of reading data from a USB-C device using the Arduino UNO:

// Example: Reading data from a USB-C device using Arduino UNO
#include <SoftwareSerial.h>

// Define RX and TX pins for SoftwareSerial
SoftwareSerial usbSerial(10, 11); // RX = pin 10, TX = pin 11

void setup() {
  Serial.begin(9600); // Initialize Serial Monitor
  usbSerial.begin(9600); // Initialize USB-C communication

  Serial.println("USB-C Communication Initialized");
}

void loop() {
  // Check if data is available from the USB-C device
  if (usbSerial.available()) {
    char data = usbSerial.read(); // Read a byte of data
    Serial.print("Received: ");
    Serial.println(data); // Print the received data to Serial Monitor
  }

  delay(100); // Small delay to avoid overwhelming the loop
}

Note: This example assumes the USB-C device communicates over UART. For advanced USB-C features, additional hardware and libraries may be required.

1. Device Not Recognized:

   • Cause: Incorrect pin connections or unsupported device.
   • Solution: Verify the pin connections and ensure the device supports USB-C.

2. Overheating:

   • Cause: Excessive current draw or poor heat dissipation.
   • Solution: Check the power delivery configuration and add heat sinks if necessary.

3. No Data Transfer:

   • Cause: Misconfigured data lines or incompatible devices.
   • Solution: Verify the TX/RX and D+/D- connections. Use appropriate adapters if needed.

• Q: Can I use a Type C USB Port for both power and data simultaneously?
  A: Yes, the Type C USB Port supports simultaneous power delivery and data transfer.

• Q: Is the Type C USB Port backward compatible with older USB standards?
  A: Yes, with the use of appropriate adapters or cables, it is compatible with USB 2.0, 3.0, and 3.1.

• Q: How do I implement USB Power Delivery (USB-PD)?
  A: Use a USB-PD controller IC to negotiate power levels and ensure safe power delivery.

By following this documentation, you can effectively integrate and troubleshoot the Type C USB Port in your projects.
