Introduction

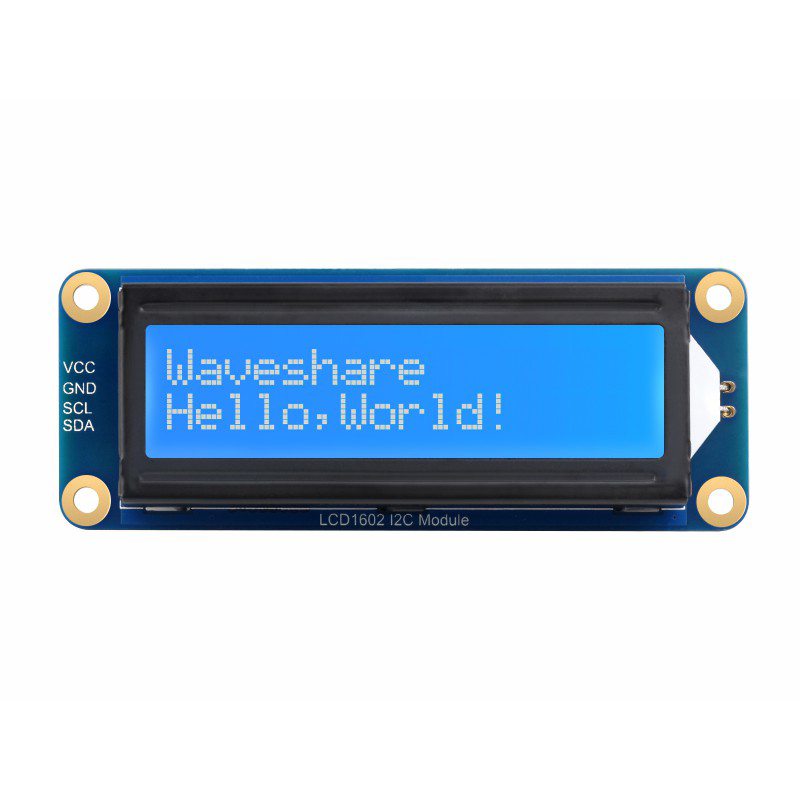

The LCD 16x2 I2C Display is a liquid crystal display module capable of showing 16 characters per line across 2 lines. It uses an I2C (Inter-Integrated Circuit) interface, which significantly reduces the number of pins required for connection compared to traditional parallel LCDs. This makes it an excellent choice for microcontroller projects where pin availability is limited.
Common Applications and Use Cases
- Displaying sensor readings in real-time
- User interfaces for embedded systems
- Menu systems for microcontroller-based projects
- Educational and prototyping purposes
Technical Specifications
Key Technical Details
- Display Type: 16x2 character LCD
- Interface: I2C (requires only 2 data pins: SDA and SCL)
- Operating Voltage: 5V DC
- Backlight: LED backlight with adjustable brightness
- I2C Address: Typically
0x27 or 0x3F (configurable via solder jumpers)
- Character Size: 5x8 dot matrix per character
- Dimensions: 80mm x 36mm x 12mm (approx.)
Pin Configuration and Descriptions
The LCD 16x2 I2C Display has a 4-pin header for connection:
Usage Instructions
How to Use the Component in a Circuit
Wiring: Connect the LCD 16x2 I2C Display to your microcontroller as follows:
- GND to the ground pin of the microcontroller.
- VCC to the 5V power pin of the microcontroller.
- SDA to the I2C data pin (e.g., A4 on Arduino UNO).
- SCL to the I2C clock pin (e.g., A5 on Arduino UNO).
Install Required Library:
- Use the Arduino IDE Library Manager to install the
LiquidCrystal_I2C library.
- Go to Sketch > Include Library > Manage Libraries.
- Search for
LiquidCrystal_I2C and install it.
Write and Upload Code:
- Use the example code below to display text on the LCD.
Example Code for Arduino UNO
#include <Wire.h>
#include <LiquidCrystal_I2C.h>
// Initialize the LCD with I2C address 0x27 and 16x2 dimensions
LiquidCrystal_I2C lcd(0x27, 16, 2);
void setup() {
lcd.begin(); // Initialize the LCD
lcd.backlight(); // Turn on the backlight
// Display a message on the LCD
lcd.setCursor(0, 0); // Set cursor to the first row, first column
lcd.print("Hello, World!"); // Print text on the first row
lcd.setCursor(0, 1); // Set cursor to the second row, first column
lcd.print("I2C LCD Display"); // Print text on the second row
}
void loop() {
// No actions in the loop for this example
}
Important Considerations and Best Practices
- I2C Address: Ensure the I2C address of your display matches the one in your code. If unsure, use an I2C scanner sketch to detect the address.
- Power Supply: Use a stable 5V power source to avoid flickering or malfunction.
- Contrast Adjustment: Some modules have a potentiometer to adjust the contrast. Turn it to achieve optimal text visibility.
- Backlight Control: Use the
lcd.backlight() and lcd.noBacklight() functions to control the backlight programmatically.
Troubleshooting and FAQs
Common Issues and Solutions
No Text Displayed:
- Verify the wiring connections (GND, VCC, SDA, SCL).
- Check the I2C address in your code. Use an I2C scanner sketch if needed.
- Adjust the contrast potentiometer on the module.
Flickering or Unstable Display:
- Ensure a stable 5V power supply.
- Avoid long or thin wires for power and I2C connections.
Backlight Not Working:
- Confirm that the backlight is enabled in the code using
lcd.backlight().
- Check for any physical damage to the module.
I2C Address Conflict:
- If multiple I2C devices are connected, ensure they have unique addresses.
- Modify the address of the LCD module by adjusting the solder jumpers if necessary.
FAQs
Q: Can I use this display with a 3.3V microcontroller?
A: Yes, but you will need a logic level shifter for the SDA and SCL lines, as the module operates at 5V.
Q: How do I detect the I2C address of my display?
A: Use an I2C scanner sketch available online to identify the address.
Q: Can I display custom characters on this LCD?
A: Yes, the LiquidCrystal_I2C library supports custom characters. Refer to the library documentation for details.
Q: Is it possible to turn off the backlight permanently?
A: Yes, you can use the lcd.noBacklight() function in your code or physically disconnect the backlight pin on the module.
By following this documentation, you can effectively integrate and troubleshoot the LCD 16x2 I2C Display in your projects.
