How to Use 5V 4A Wall Adapter: Examples, Pinouts, and Specs

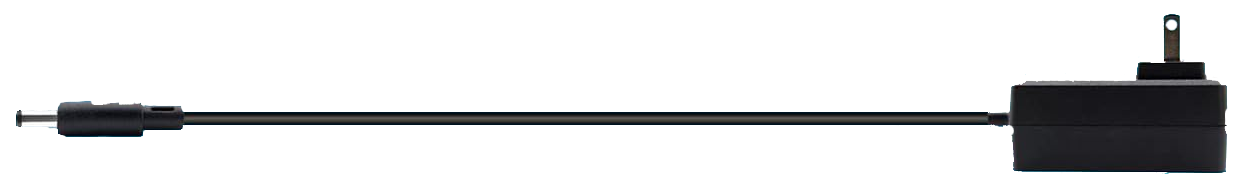

The 5V 4A Wall Adapter is a power supply device designed to convert standard AC voltage from a wall outlet (typically 100-240V AC) into a stable 5V DC output. With a maximum current capacity of 4A, this adapter is ideal for powering a wide range of electronic devices, including microcontrollers, single-board computers, IoT devices, and other low-voltage systems. Its compact design and high current output make it a reliable choice for both hobbyist and professional applications.

• Powering microcontrollers (e.g., Arduino, Raspberry Pi)
• Supplying power to IoT devices and sensors
• Charging USB-powered devices
• Driving low-power DC motors or LED strips
• Providing stable power for prototyping and testing circuits

The following table outlines the key technical details of the 5V 4A Wall Adapter:

The 5V 4A Wall Adapter typically uses a barrel jack connector. The pin configuration is as follows:

Ensure that the device you are powering is compatible with this pin configuration to avoid damage.

1. Verify Compatibility: Ensure the device you are powering operates at 5V DC and does not exceed a current draw of 4A.
2. Connect the Adapter: Plug the barrel jack into the power input port of your device. Ensure the polarity matches the device's requirements (inner pin is +5V, outer pin is GND).
3. Plug into Wall Outlet: Insert the adapter into a standard AC wall outlet (100-240V AC).
4. Power On: Turn on your device if it has a power switch. The adapter will provide a stable 5V DC output.

• Check Current Requirements: Ensure the total current draw of your device(s) does not exceed 4A. Overloading the adapter may cause overheating or damage.
• Polarity Matching: Double-check the polarity of the barrel jack to avoid damaging your device.
• Ventilation: Use the adapter in a well-ventilated area to prevent overheating.
• Avoid Short Circuits: Ensure there are no exposed wires or connections that could cause a short circuit.
• Use with Arduino UNO: The 5V 4A Wall Adapter can be used to power an Arduino UNO via the barrel jack input. The Arduino's onboard voltage regulator will ensure safe operation.

To power an Arduino UNO with the 5V 4A Wall Adapter:

1. Connect the barrel jack of the adapter to the Arduino's DC power input.
2. Plug the adapter into a wall outlet.
3. The Arduino will automatically power on, and the onboard LED will light up.

If you are using the adapter to power additional components connected to the Arduino, ensure the total current draw does not exceed 4A.

If you are powering an Arduino UNO with the 5V 4A Wall Adapter and using it to control an LED, you can use the following code:

// This code blinks an LED connected to pin 13 of the Arduino UNO.
// Ensure the Arduino is powered using the 5V 4A Wall Adapter.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. Device Not Powering On:

   • Cause: The adapter may not be properly connected, or the device may require a different voltage.
   • Solution: Check the connections and ensure the device operates at 5V DC. Verify the barrel jack polarity.

2. Overheating Adapter:

   • Cause: The connected device(s) may be drawing more than 4A of current.
   • Solution: Reduce the load by disconnecting some devices or using a higher-capacity power supply.

3. Intermittent Power Loss:

   • Cause: Loose connections or a damaged cable.
   • Solution: Inspect the cable and connector for damage. Ensure the barrel jack is securely connected.

4. Short Circuit Protection Triggered:

   • Cause: A short circuit in the connected device or wiring.
   • Solution: Disconnect the adapter immediately. Inspect the circuit for shorts and fix any issues before reconnecting.

Q: Can I use this adapter to charge USB devices?
A: Yes, but you will need a barrel jack to USB adapter or a device with a compatible input. Ensure the device does not exceed 4A current draw.

Q: Is this adapter suitable for powering LED strips?
A: Yes, as long as the total current draw of the LED strip does not exceed 4A.

Q: Can I use this adapter with a Raspberry Pi?
A: Yes, but ensure the Raspberry Pi model you are using is compatible with a 5V input and does not exceed the current limit.

Q: What happens if I exceed the 4A current limit?
A: The adapter's overcurrent protection will activate, cutting off power to prevent damage. Reduce the load and try again.

By following this documentation, you can safely and effectively use the 5V 4A Wall Adapter in your projects.
