How to Use AC-DC power supply WX-DC2416: Examples, Pinouts, and Specs

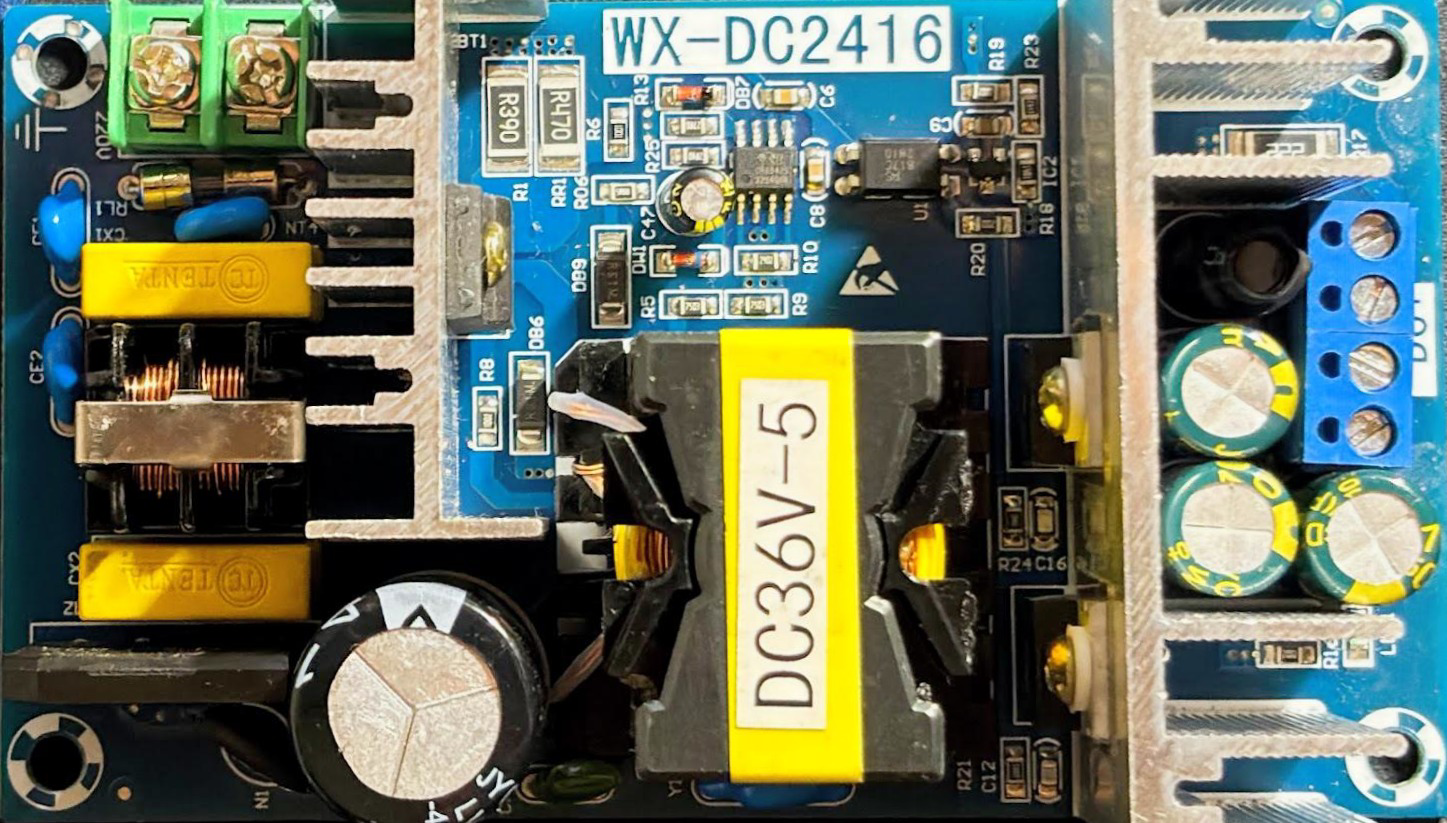

The WX-DC2416 is a compact and efficient AC-DC power supply designed to convert alternating current (AC) from a mains power source into a stable direct current (DC) output. Manufactured by Generic, this power supply is ideal for powering a wide range of electronic devices and circuits that require a reliable DC voltage source. Its robust design ensures consistent performance, making it suitable for both hobbyist and professional applications.

• Powering microcontrollers, sensors, and modules in embedded systems
• Supplying DC voltage to LED lighting systems
• Charging batteries in low-power applications
• Providing power to small appliances and consumer electronics
• Use in prototyping and development environments

The WX-DC2416 is designed to meet the needs of various low-power electronic applications. Below are its key technical specifications:

The WX-DC2416 features a simple input and output terminal configuration:

1. Connect the AC Input:

   • Identify the live (L) and neutral (N) terminals on the power supply.
   • Connect the live wire from the mains power source to the "L" terminal.
   • Connect the neutral wire from the mains power source to the "N" terminal.
   • Ensure proper insulation and secure connections to avoid electrical hazards.

2. Connect the DC Output:

   • Connect the positive terminal of your load (e.g., a microcontroller or LED) to the "+V" terminal.
   • Connect the ground terminal of your load to the "-V" terminal.

3. Power On:

   • Once all connections are secure, plug the power supply into the mains outlet.
   • Verify the output voltage using a multimeter before connecting sensitive devices.

• Safety First: Always ensure the power supply is disconnected from the mains before making any connections.
• Load Requirements: Do not exceed the maximum output current (1.6A) to prevent damage to the power supply or connected devices.
• Ventilation: Ensure adequate airflow around the power supply to prevent overheating.
• Polarity: Double-check the polarity of the DC output connections to avoid damaging your load.
• Testing: Use a multimeter to verify the output voltage and current before connecting sensitive electronics.

The WX-DC2416 can be used to power an Arduino UNO by connecting its output to the Arduino's power input. Below is an example setup:

1. Connect the "+V" terminal of the WX-DC2416 to the Arduino's VIN pin.
2. Connect the "-V" terminal of the WX-DC2416 to the Arduino's GND pin.
3. Ensure the output voltage is set to 24V DC (if adjustable) and does not exceed the Arduino's input voltage range.

// Example Arduino code to blink an LED when powered by WX-DC2416
// Connect an LED to pin 13 with a 220-ohm resistor in series.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. No Output Voltage:

   • Cause: Incorrect AC input connections or no mains power.
   • Solution: Verify that the live and neutral wires are securely connected to the "L" and "N" terminals, respectively. Check the mains power source.

2. Output Voltage Too Low or Unstable:

   • Cause: Overloading the power supply or insufficient input voltage.
   • Solution: Ensure the connected load does not exceed 1.6A. Verify that the input voltage is within the specified range (100-240V AC).

3. Overheating:

   • Cause: Poor ventilation or excessive load.
   • Solution: Ensure proper airflow around the power supply and reduce the load if necessary.

4. Short Circuit Protection Triggered:

   • Cause: A short circuit in the connected load.
   • Solution: Disconnect the load and inspect for wiring errors or damaged components. Resolve the issue before reconnecting.

Q: Can the WX-DC2416 be used outdoors?
A: The WX-DC2416 is not weatherproof and should only be used in dry, indoor environments. For outdoor use, ensure it is housed in a weatherproof enclosure.

Q: Is the output voltage adjustable?
A: No, the WX-DC2416 provides a fixed 24V DC output.

Q: Can I use this power supply to charge a 24V battery?
A: While the WX-DC2416 can provide 24V DC, it is not specifically designed for battery charging. Use a dedicated battery charger for optimal performance and safety.

Q: What happens if I exceed the maximum output current?
A: The WX-DC2416 includes overload protection, which will shut down the output to prevent damage. Reduce the load and restart the power supply.

By following this documentation, users can safely and effectively integrate the WX-DC2416 into their projects.
