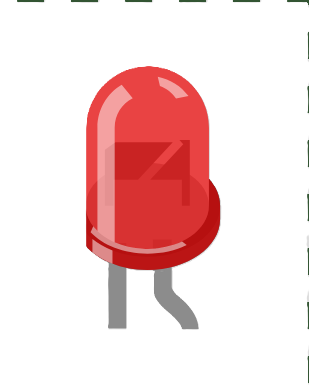

Image of led
Cirkit Designer LogoDesign with led in Cirkit Designer

Introduction

A Light Emitting Diode (LED) is a semiconductor device that emits light when an electric current passes through it. LEDs are energy-efficient and have a long lifespan, making them popular for various lighting applications. They are widely used in indicators, displays, backlighting, and general-purpose lighting. LEDs are available in various colors, sizes, and shapes, making them versatile for numerous applications.

Common applications of LEDs include:

  • Status indicators on electronic devices
  • Illumination in residential and commercial lighting
  • Backlighting for LCD screens
  • Automotive lighting (e.g., headlights, brake lights)
  • Decorative lighting and displays

Explore Projects Built with led

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered LED Array with Rocker Switch Control
Image of yk: A project utilizing led in a practical application
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Green LED Light
Image of Solar Panel : A project utilizing led in a practical application
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
LDR-Controlled LED Lighting System
Image of automatic street light: A project utilizing led in a practical application
This circuit appears to be a simple light-detection system that uses an LDR (Light Dependent Resistor) to control the state of multiple green LEDs. The LDR's analog output (AO) is not connected, suggesting that the circuit uses the digital output (DO) to directly drive one LED, while the other LEDs are wired in parallel to the LDR's power supply (Vcc). The Pd (presumably a power distribution component) provides the necessary voltage levels to the LDR and LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Light-Activated Relay with LED Indicator
Image of Street Light: A project utilizing led in a practical application
This circuit uses a photocell (LDR) to control a 5V relay, which in turn controls the power to a red LED. The relay is powered by a USB plug, and a resistor is used to limit the current to the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with led

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of yk: A project utilizing led in a practical application
Battery-Powered LED Array with Rocker Switch Control
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Solar Panel : A project utilizing led in a practical application
Solar-Powered Green LED Light
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of automatic street light: A project utilizing led in a practical application
LDR-Controlled LED Lighting System
This circuit appears to be a simple light-detection system that uses an LDR (Light Dependent Resistor) to control the state of multiple green LEDs. The LDR's analog output (AO) is not connected, suggesting that the circuit uses the digital output (DO) to directly drive one LED, while the other LEDs are wired in parallel to the LDR's power supply (Vcc). The Pd (presumably a power distribution component) provides the necessary voltage levels to the LDR and LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Street Light: A project utilizing led in a practical application
Light-Activated Relay with LED Indicator
This circuit uses a photocell (LDR) to control a 5V relay, which in turn controls the power to a red LED. The relay is powered by a USB plug, and a resistor is used to limit the current to the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

Below are the general technical specifications for a standard 5mm LED. Note that specifications may vary depending on the specific type and manufacturer.

Parameter Value
Forward Voltage (Vf) 1.8V - 3.3V (varies by color)
Forward Current (If) 10mA - 20mA
Reverse Voltage (Vr) 5V (maximum)
Power Dissipation 60mW (typical)
Wavelength (Color) 400nm - 700nm (varies by type)
Viewing Angle 20° - 60°
Operating Temperature -40°C to +85°C

Pin Configuration

An LED typically has two pins:

Pin Name Description
Anode (+) The longer pin, connected to the positive voltage
Cathode (-) The shorter pin, connected to ground (GND)

Note: The anode is the positive terminal, and the cathode is the negative terminal. Ensure correct polarity when connecting the LED to avoid damage.

Usage Instructions

How to Use an LED in a Circuit

  1. Determine the Resistor Value: LEDs require a current-limiting resistor to prevent excessive current flow. Use Ohm's Law to calculate the resistor value: [ R = \frac{V_{supply} - V_f}{I_f} ] Where:

    • (V_{supply}) is the supply voltage
    • (V_f) is the forward voltage of the LED
    • (I_f) is the desired forward current (e.g., 20mA)
  2. Connect the LED:

    • Connect the anode (+) to the positive voltage through the resistor.
    • Connect the cathode (-) to ground (GND).
  3. Test the Circuit: Power the circuit and observe the LED emitting light. If it does not light up, check the polarity and connections.

Example: Connecting an LED to an Arduino UNO

Below is an example of how to connect and control an LED using an Arduino UNO.

Circuit Setup

  • Connect the anode (+) of the LED to a 220Ω resistor.
  • Connect the other end of the resistor to digital pin 13 on the Arduino.
  • Connect the cathode (-) of the LED to the GND pin on the Arduino.

Arduino Code

// This code blinks an LED connected to pin 13 of the Arduino UNO.
// Ensure the LED is connected with the correct polarity.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Important Considerations

  • Polarity: LEDs are polarized components. Reversing the polarity can prevent the LED from lighting up.
  • Current Limiting: Always use a resistor to limit the current through the LED. Excessive current can damage the LED.
  • Heat Dissipation: While LEDs are efficient, high-power LEDs may require heat sinks to dissipate heat.

Troubleshooting and FAQs

Common Issues

  1. LED Does Not Light Up:

    • Check the polarity of the LED. Ensure the anode is connected to the positive voltage and the cathode to ground.
    • Verify the resistor value. A resistor with too high a value may prevent sufficient current flow.
    • Ensure the power supply is functioning and providing the correct voltage.
  2. LED Flickers or is Dim:

    • Check for loose connections in the circuit.
    • Verify that the power supply is stable and not fluctuating.
    • Ensure the resistor value is appropriate for the desired brightness.
  3. LED Burns Out:

    • Confirm that a current-limiting resistor is used.
    • Check the supply voltage to ensure it does not exceed the LED's maximum ratings.

FAQs

Q: Can I connect an LED directly to a battery?
A: No, connecting an LED directly to a battery without a resistor can cause excessive current flow, damaging the LED.

Q: How do I choose the correct resistor for my LED?
A: Use the formula (R = \frac{V_{supply} - V_f}{I_f}) to calculate the resistor value. For example, with a 5V supply, a red LED ((V_f = 2V)), and (I_f = 20mA), the resistor value would be: [ R = \frac{5V - 2V}{0.02A} = 150\Omega ]

Q: Can I use an LED without a microcontroller?
A: Yes, you can connect an LED to a power source with a current-limiting resistor. A microcontroller is only needed for controlling the LED (e.g., blinking or dimming).

By following these guidelines, you can effectively use LEDs in your projects and troubleshoot common issues.
