How to Use SSR - 40da: Examples, Pinouts, and Specs

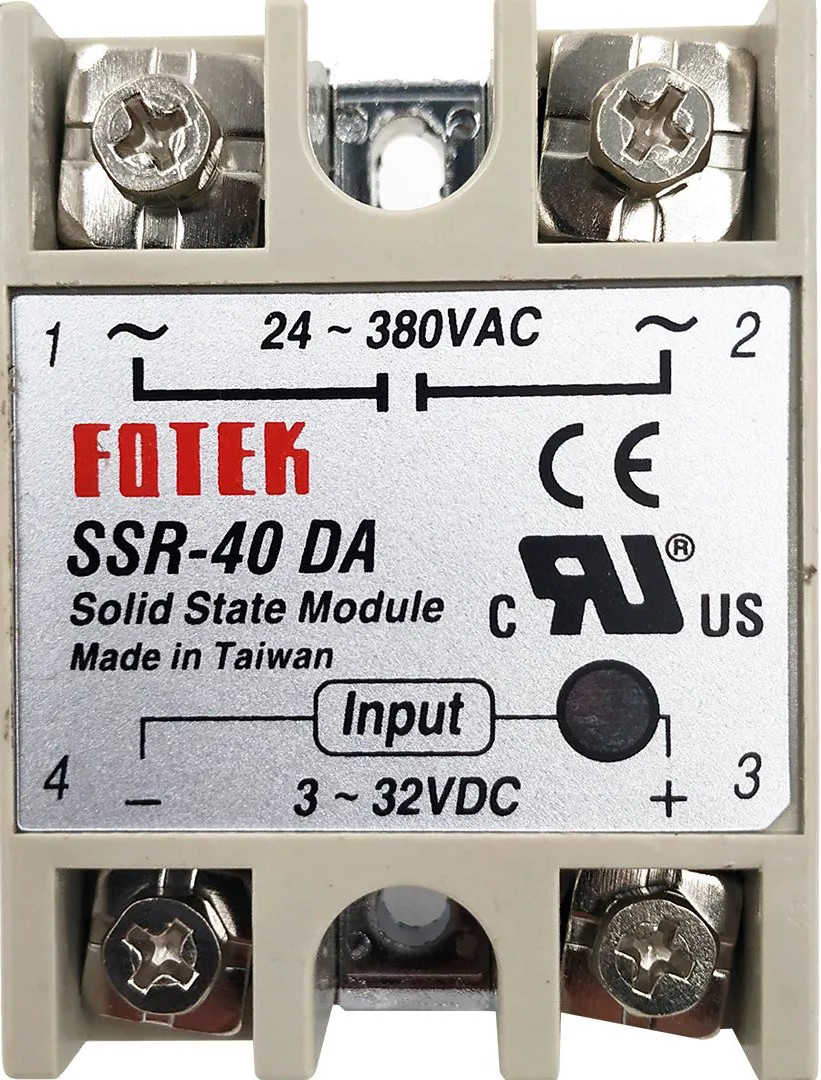

The SSR - 40DA is a Solid State Relay (SSR) designed for high-performance switching applications. Unlike traditional electromechanical relays, the SSR - 40DA uses semiconductor devices to switch loads, offering faster response times, silent operation, and extended durability. This relay is capable of handling loads up to 40 amps, making it suitable for industrial, commercial, and home automation applications.

• Industrial motor control and heating systems
• Home automation for high-power appliances
• Temperature control systems (e.g., ovens, HVAC)
• Lighting control in commercial and residential settings
• Switching resistive and inductive loads

1. Control Signal Connection:

   • Connect the positive control signal to the Input (+) pin.
   • Connect the ground of the control signal to the Input (-) pin.
   • Ensure the control voltage is within the range of 3V DC to 32V DC.

2. Load Connection:

   • Connect one terminal of the AC load to the Load (AC1) pin.
   • Connect the other terminal of the AC load to the Load (AC2) pin or the AC power supply.

3. Power Supply:

   • Ensure the AC load voltage is within the range of 24V AC to 380V AC.
   • Verify that the load current does not exceed 40A.

4. Mounting:

   • Secure the SSR - 40DA to a heat sink or panel using screws to ensure proper heat dissipation.

• Heat Dissipation: The SSR - 40DA generates heat during operation. Use a heat sink or cooling fan to prevent overheating.
• Load Type: Ensure the load is compatible with the SSR. For inductive loads, consider using a snubber circuit to suppress voltage spikes.
• Isolation: Maintain proper isolation between the control and load sides to prevent electrical hazards.
• Wiring: Use appropriately rated wires for the load current to avoid overheating or fire hazards.

The SSR - 40DA can be controlled using an Arduino UNO. Below is an example circuit and code to toggle an AC load using the relay.

• Connect the Input (+) pin of the SSR to Arduino digital pin 9.
• Connect the Input (-) pin of the SSR to the Arduino GND.
• Connect the AC load to the Load (AC1) and Load (AC2) pins of the SSR.

// Define the SSR control pin
const int ssrPin = 9;

void setup() {
  // Set the SSR pin as an output
  pinMode(ssrPin, OUTPUT);
}

void loop() {
  // Turn the SSR on (AC load ON)
  digitalWrite(ssrPin, HIGH);
  delay(5000); // Keep the load ON for 5 seconds

  // Turn the SSR off (AC load OFF)
  digitalWrite(ssrPin, LOW);
  delay(5000); // Keep the load OFF for 5 seconds
}

1. SSR Not Switching the Load:

   • Cause: Insufficient control voltage or current.
   • Solution: Verify that the control voltage is within the range of 3V DC to 32V DC and the trigger current is sufficient.

2. Excessive Heat Generation:

   • Cause: High load current or inadequate heat dissipation.
   • Solution: Use a heat sink or cooling fan to manage heat. Ensure the load current does not exceed 40A.

3. Load Not Turning Off Completely:

   • Cause: Leakage current in the SSR.
   • Solution: Check the load's minimum operating current. If necessary, add a resistor in parallel with the load to dissipate the leakage current.

4. SSR Fails Prematurely:

   • Cause: Overvoltage or overcurrent conditions.
   • Solution: Ensure the load voltage and current are within the SSR's rated limits. Use a snubber circuit for inductive loads.

Q1: Can the SSR - 40DA be used with DC loads?
A1: No, the SSR - 40DA is designed for AC loads only. For DC loads, use a DC-specific SSR.

Q2: Is the SSR - 40DA polarity-sensitive on the load side?
A2: No, the load side terminals (AC1 and AC2) are not polarity-sensitive.

Q3: Can I control the SSR - 40DA with a 3.3V microcontroller?
A3: Yes, the SSR - 40DA can be triggered with a control voltage as low as 3V DC, making it compatible with 3.3V logic.

Q4: Do I need an external power supply for the SSR?
A4: No, the SSR - 40DA does not require an external power supply. It operates directly from the control signal and load connections.
