How to Use Soil Moisture V2: Examples, Pinouts, and Specs

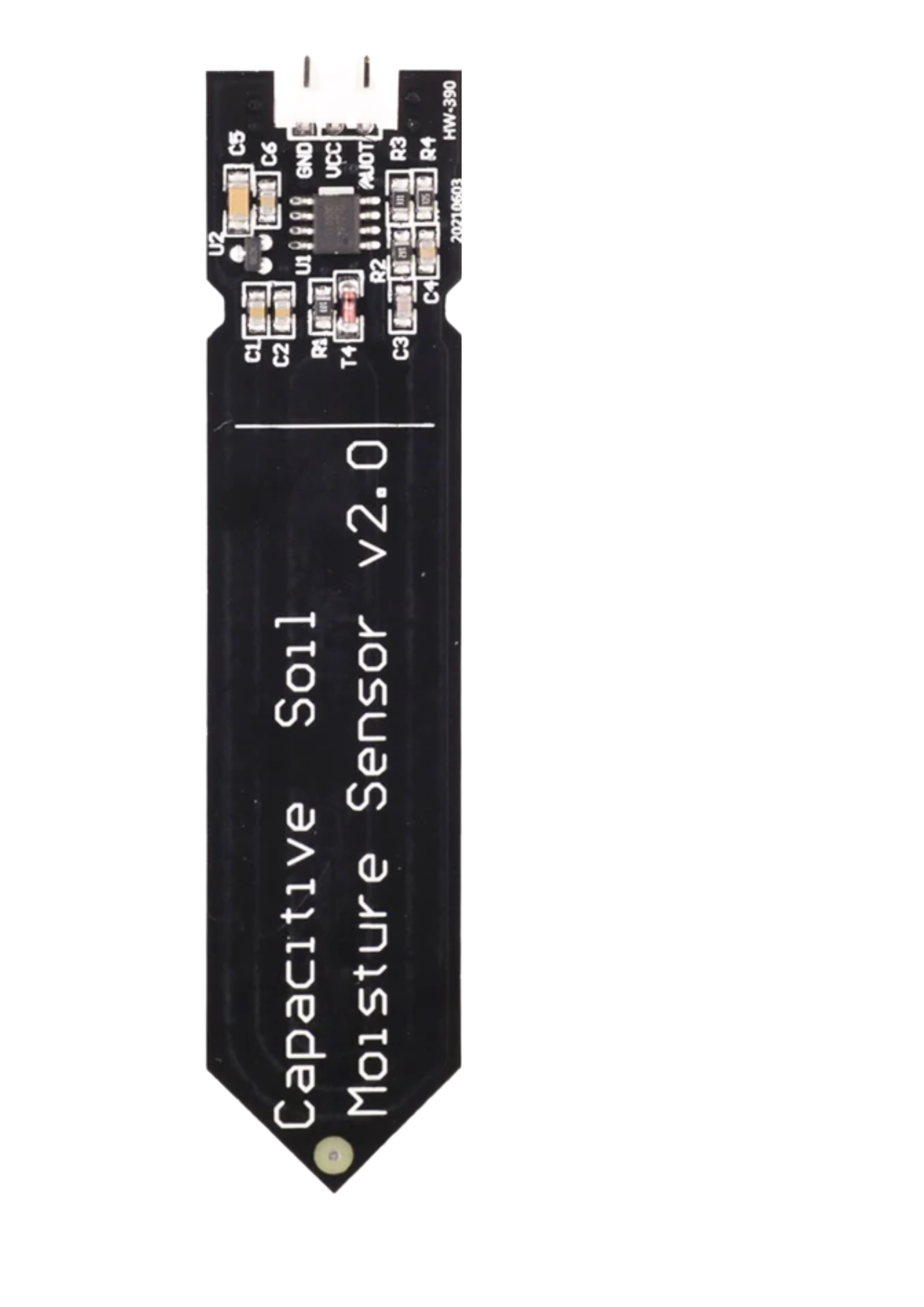

The Soil Moisture V2 sensor, manufactured by ESP32, is a reliable and efficient device designed to measure the volumetric water content in soil. This sensor provides accurate data that can be used for irrigation management, plant health monitoring, and various agricultural or gardening applications. Its compact design and ease of integration make it suitable for both hobbyist projects and professional systems.

• Automated irrigation systems
• Smart gardening and farming
• Soil analysis for agricultural research
• Environmental monitoring systems
• DIY plant care projects

The Soil Moisture V2 sensor is designed to operate efficiently in a variety of environments. Below are its key technical details:

The Soil Moisture V2 sensor has three pins for easy integration into circuits. Below is the pinout description:

1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to the ground of your circuit.
2. Read the Output: Connect the AOUT pin to an analog input pin of your microcontroller (e.g., ESP32 or Arduino UNO).
3. Calibrate the Sensor: Place the sensor in dry soil and note the analog reading. Then, place it in fully saturated soil and note the reading. Use these values to map the sensor's output to a percentage scale (0% to 100%).

• Placement: Insert the sensor into the soil vertically, ensuring the electrodes are fully covered for accurate readings.
• Corrosion Prevention: The sensor is designed with corrosion-resistant electrodes, but prolonged exposure to water may still degrade performance. Use it in well-drained soil and avoid continuous submersion.
• Power Supply: Ensure the power supply voltage matches the sensor's operating range (3.3V to 5V) to avoid damage.
• Signal Noise: Use a capacitor (e.g., 0.1µF) between the AOUT pin and ground to reduce noise in the analog signal.

Below is an example of how to use the Soil Moisture V2 sensor with an Arduino UNO:

// Define the analog pin connected to the sensor's AOUT pin
const int soilMoisturePin = A0;

// Variable to store the sensor reading
int soilMoistureValue = 0;

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);
}

void loop() {
  // Read the analog value from the sensor
  soilMoistureValue = analogRead(soilMoisturePin);

  // Map the sensor value to a percentage (0% to 100%)
  int moisturePercent = map(soilMoistureValue, 0, 1023, 0, 100);

  // Print the moisture percentage to the Serial Monitor
  Serial.print("Soil Moisture: ");
  Serial.print(moisturePercent);
  Serial.println("%");

  // Wait for 1 second before the next reading
  delay(1000);
}

If using the ESP32, connect the AOUT pin to one of the ESP32's ADC pins (e.g., GPIO34). Adjust the analogRead() function to match the ESP32's ADC resolution (typically 12 bits).

1. No Output Signal

   • Cause: Incorrect wiring or insufficient power supply.
   • Solution: Double-check the connections and ensure the power supply voltage is within the specified range (3.3V to 5V).

2. Inconsistent Readings

   • Cause: Electrical noise or poor soil contact.
   • Solution: Add a capacitor (e.g., 0.1µF) between the AOUT pin and ground to filter noise. Ensure the sensor is properly inserted into the soil.

3. Corrosion on Electrodes

   • Cause: Prolonged exposure to water or highly acidic/alkaline soil.
   • Solution: Use the sensor in well-drained soil and avoid continuous submersion. Clean the electrodes periodically.

Q: Can the Soil Moisture V2 sensor be used outdoors?
A: Yes, but it is recommended to protect the sensor from extreme weather conditions and ensure proper drainage to prevent corrosion.

Q: How do I interpret the analog output?
A: The analog output corresponds to the soil moisture level. Calibrate the sensor by measuring the output in dry and saturated soil, then map the values to a percentage scale.

Q: Can I use this sensor with a Raspberry Pi?
A: Yes, but since the Raspberry Pi lacks analog input pins, you will need an external ADC (Analog-to-Digital Converter) module to read the sensor's output.

Q: What is the lifespan of the sensor?
A: The lifespan depends on usage conditions. Proper care, such as avoiding prolonged exposure to water and cleaning the electrodes, can extend its life.
