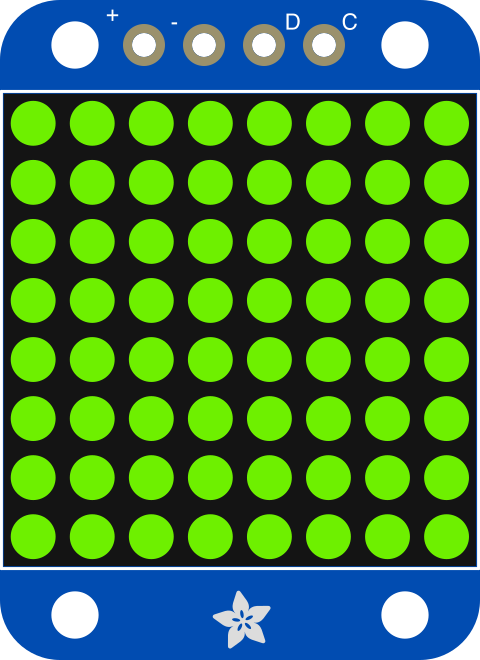

Image of Adafruit Mini 8x8 LED Matrix Backpack - Yellow-Green
Cirkit Designer LogoDesign with Adafruit Mini 8x8 LED Matrix Backpack - Yellow-Green in Cirkit Designer

Introduction

The Adafruit Mini 8x8 LED Matrix Backpack (Part ID: 872) is a compact and versatile LED display module featuring a yellow-green 8x8 grid of LEDs. This module is designed for easy integration with microcontrollers, such as Arduino, and simplifies the process of creating visual outputs for projects. The backpack includes an I2C interface, which reduces the number of pins required for control, making it ideal for projects with limited GPIO availability.

Explore Projects Built with Adafruit Mini 8x8 LED Matrix Backpack - Yellow-Green

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO Controlled LED Matrix and LCD Interface with Joystick Interaction
Image of Digital Game Circuit: A project utilizing Adafruit Mini 8x8 LED Matrix Backpack - Yellow-Green in a practical application
This circuit features an Arduino UNO microcontroller interfaced with an 8x8 LED matrix, an LCD screen, and a KY-023 Dual Axis Joystick Module. The Arduino controls the LED matrix via digital pins D10-D12 and powers the matrix, LCD, and joystick module from its 5V output. The joystick's analog outputs are connected to the Arduino's analog inputs A0 and A1 for position sensing, while the LCD is controlled through digital pins D2-D6 and D13 for display purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Controlled LED Display and Relay System
Image of Design for Arduino Nano: A project utilizing Adafruit Mini 8x8 LED Matrix Backpack - Yellow-Green in a practical application
This circuit features an Arduino Nano microcontroller connected to an 8x8 LED matrix and multiple individual LEDs with current-limiting resistors. The Arduino controls the LED matrix and individual LEDs, likely for display or signaling purposes. Additionally, there is a 1-channel relay module that can be controlled by the Arduino to switch external loads, and a USB connection for power and potential programming of the Arduino.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Controlled Interactive Display with Joystick and Buzzer Feedback
Image of joystick: A project utilizing Adafruit Mini 8x8 LED Matrix Backpack - Yellow-Green in a practical application
This circuit features an Arduino UNO microcontroller connected to an 8x8 LED matrix, an LCD display with I2C interface, a KY-023 Dual Axis Joystick Module, and a Piezo Buzzer. The Arduino controls the LED matrix via digital pins and provides an interface for the joystick's analog inputs and button press. The LCD display is used for output, and the buzzer is driven by a digital pin for audio feedback.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Controlled Dual 8x8 LED Matrix Display with NTP Time Synchronization
Image of time: A project utilizing Adafruit Mini 8x8 LED Matrix Backpack - Yellow-Green in a practical application
This circuit features an ESP32 microcontroller connected to two cascaded 8x8 LED matrix displays, powered by a 3.3V battery. The ESP32 drives the displays to show time and other information, with the code indicating functionality for connecting to WiFi, synchronizing time via NTP, and displaying data on the matrices using custom fonts. Additionally, there is a separate 3.3V battery powering a red LED, which appears to function as a simple indicator light.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Adafruit Mini 8x8 LED Matrix Backpack - Yellow-Green

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Digital Game Circuit: A project utilizing Adafruit Mini 8x8 LED Matrix Backpack - Yellow-Green in a practical application
Arduino UNO Controlled LED Matrix and LCD Interface with Joystick Interaction
This circuit features an Arduino UNO microcontroller interfaced with an 8x8 LED matrix, an LCD screen, and a KY-023 Dual Axis Joystick Module. The Arduino controls the LED matrix via digital pins D10-D12 and powers the matrix, LCD, and joystick module from its 5V output. The joystick's analog outputs are connected to the Arduino's analog inputs A0 and A1 for position sensing, while the LCD is controlled through digital pins D2-D6 and D13 for display purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Design for Arduino Nano: A project utilizing Adafruit Mini 8x8 LED Matrix Backpack - Yellow-Green in a practical application
Arduino Nano Controlled LED Display and Relay System
This circuit features an Arduino Nano microcontroller connected to an 8x8 LED matrix and multiple individual LEDs with current-limiting resistors. The Arduino controls the LED matrix and individual LEDs, likely for display or signaling purposes. Additionally, there is a 1-channel relay module that can be controlled by the Arduino to switch external loads, and a USB connection for power and potential programming of the Arduino.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of joystick: A project utilizing Adafruit Mini 8x8 LED Matrix Backpack - Yellow-Green in a practical application
Arduino UNO Controlled Interactive Display with Joystick and Buzzer Feedback
This circuit features an Arduino UNO microcontroller connected to an 8x8 LED matrix, an LCD display with I2C interface, a KY-023 Dual Axis Joystick Module, and a Piezo Buzzer. The Arduino controls the LED matrix via digital pins and provides an interface for the joystick's analog inputs and button press. The LCD display is used for output, and the buzzer is driven by a digital pin for audio feedback.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of time: A project utilizing Adafruit Mini 8x8 LED Matrix Backpack - Yellow-Green in a practical application
ESP32-Controlled Dual 8x8 LED Matrix Display with NTP Time Synchronization
This circuit features an ESP32 microcontroller connected to two cascaded 8x8 LED matrix displays, powered by a 3.3V battery. The ESP32 drives the displays to show time and other information, with the code indicating functionality for connecting to WiFi, synchronizing time via NTP, and displaying data on the matrices using custom fonts. Additionally, there is a separate 3.3V battery powering a red LED, which appears to function as a simple indicator light.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Visual indicators and status displays
  • Scrolling text or animations
  • Game displays (e.g., mini arcade games)
  • Educational projects and prototyping
  • IoT devices requiring compact visual feedback

Technical Specifications

Below are the key technical details for the Adafruit Mini 8x8 LED Matrix Backpack:

Specification Details
Manufacturer Adafruit
Manufacturer Part ID 872
LED Matrix Dimensions 8x8 (64 LEDs)
LED Color Yellow-Green
Communication Protocol I2C
Operating Voltage 5V DC
Current Consumption ~20mA (varies with LED usage)
I2C Address Range 0x70 to 0x77 (configurable via jumpers)
Dimensions 27mm x 27mm x 4mm

Pin Configuration

The module has a simple 4-pin interface for power and communication. Below is the pinout:

Pin Label Description
1 VIN Power input (5V DC)
2 GND Ground
3 SDA I2C data line
4 SCL I2C clock line

Usage Instructions

Connecting the Module

  1. Power Supply: Connect the VIN pin to a 5V power source and the GND pin to ground.
  2. I2C Communication: Connect the SDA pin to the SDA pin on your microcontroller and the SCL pin to the SCL pin on your microcontroller.
  3. I2C Address Configuration: The default I2C address is 0x70. If you need to use multiple modules, you can change the address by soldering the address jumpers on the back of the module.

Using with Arduino UNO

To use the Adafruit Mini 8x8 LED Matrix Backpack with an Arduino UNO, follow these steps:

  1. Install Required Library:

    • Open the Arduino IDE.
    • Go to Sketch > Include Library > Manage Libraries.
    • Search for Adafruit LED Backpack and install it.
    • Also, install the Adafruit GFX library, which is required for graphics rendering.
  2. Wiring:

    • Connect the module's VIN to the Arduino's 5V.
    • Connect GND to the Arduino's GND.
    • Connect SDA to the Arduino's A4 pin.
    • Connect SCL to the Arduino's A5 pin.
  3. Example Code: Use the following example code to display a simple pattern on the LED matrix:

    // Include the required libraries
    #include <Wire.h>
    #include <Adafruit_GFX.h>
    #include <Adafruit_LEDBackpack.h>

    // Create an instance of the LED matrix
    Adafruit_8x8matrix matrix = Adafruit_8x8matrix();

    void setup() {
      // Initialize the matrix
      matrix.begin(0x70); // Default I2C address is 0x70
      matrix.clear();     // Clear the display
      matrix.writeDisplay();
    }

    void loop() {
      // Draw a smiley face pattern
      static const uint8_t smiley[] = {
        0b00111100,
        0b01000010,
        0b10100101,
        0b10000001,
        0b10100101,
        0b10011001,
        0b01000010,
        0b00111100
      };

      // Write the pattern to the matrix
      for (uint8_t i = 0; i < 8; i++) {
        matrix.drawBitmap(0, 0, smiley, 8, 8, LED_ON);
      }

      matrix.writeDisplay(); // Update the display
      delay(1000);           // Wait for 1 second

      matrix.clear();        // Clear the display
      matrix.writeDisplay();
      delay(1000);           // Wait for 1 second
    }


    Note: Ensure that the I2C address in the matrix.begin() function matches the address configured on your module.

Best Practices

  • Avoid exceeding the operating voltage of 5V to prevent damage to the module.
  • Use pull-up resistors on the I2C lines if your microcontroller does not have internal pull-ups enabled.
  • Keep the module away from excessive heat or moisture to ensure longevity.

Troubleshooting and FAQs

Common Issues

  1. LEDs Not Lighting Up:

    • Verify that the module is receiving 5V power and is properly grounded.
    • Check the I2C connections (SDA and SCL) for loose or incorrect wiring.
  2. I2C Communication Failure:

    • Ensure the I2C address in your code matches the module's configured address.
    • Use an I2C scanner sketch to detect the module's address.
  3. Dim or Flickering LEDs:

    • Check the power supply for sufficient current output.
    • Ensure there are no loose connections.
  4. Library Errors:

    • Confirm that the Adafruit LED Backpack and Adafruit GFX libraries are installed and up to date.

FAQs

Q: Can I use this module with a 3.3V microcontroller?
A: Yes, the module is compatible with 3.3V logic levels for I2C communication, but you must still provide 5V to the VIN pin for powering the LEDs.

Q: How do I chain multiple modules together?
A: Each module must have a unique I2C address. Configure the addresses using the solder jumpers on the back of each module, then connect all modules to the same SDA and SCL lines.

Q: Can I display custom animations?
A: Yes, you can use the Adafruit GFX library to create custom animations by updating the LED matrix with different patterns in the loop() function.

By following this documentation, you can effectively integrate and use the Adafruit Mini 8x8 LED Matrix Backpack in your projects.
