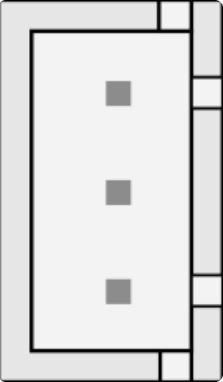

The JST XH 3R Male is a 3-pin male connector from the JST XH series, designed for secure and reliable wire-to-board or wire-to-wire connections in electronic circuits. This connector is widely used in applications requiring compact, durable, and efficient interconnections. Its robust design ensures a stable connection, making it ideal for use in consumer electronics, robotics, battery packs, and LED lighting systems.
Explore Projects Built with JST XH 3R Male
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit connects an FTDI USB-to-serial converter to a standard serial interface via a J26 connector. It facilitates serial communication by linking the ground, transmit, receive, data terminal ready, and request to send signals between the FTDI chip and the J26 connector.
This circuit integrates an Arduino Pro Mini with a Jeti Rex Receiver and an ACS712 current sensor to measure and transmit current, voltage, power, capacity, and rotation data. The Arduino processes sensor data and communicates it to the Jeti Rex Receiver for telemetry purposes.
This circuit is designed to interface two TRRS 3.5mm audio jacks with a standard 3.5mm audio jack, routing audio signals between them. The microcontroller present in the circuit does not have an active role as the provided code is empty.
This circuit features an Arduino Nano interfaced with a KY-023 Dual Axis Joystick Module for analog input, and an NRF24L01 module for wireless communication. The joystick provides x and y-axis control signals to the Arduino's analog inputs and a switch signal to a digital input, while the NRF24L01 enables the Arduino to communicate with other devices wirelessly. The 2x 18650 batteries supply power to the Arduino, which in turn powers the joystick and the NRF24L01 module.
Signal and power connections in consumer electronics
Interfacing sensors and modules in embedded systems
Technical Specifications
The JST XH 3R Male connector is designed to meet the needs of compact and reliable connections. Below are its key technical details:
Key Specifications
Parameter
Value
Number of Pins
3
Pitch (Pin Spacing)
2.5 mm
Rated Voltage
250 V AC/DC
Rated Current
3 A
Contact Resistance
≤ 10 mΩ
Insulation Resistance
≥ 1000 MΩ
Operating Temperature
-25°C to +85°C
Material (Housing)
Nylon 66 (UL94V-0, flame-retardant)
Material (Contacts)
Phosphor bronze with tin plating
Pin Configuration and Descriptions
The JST XH 3R Male connector has three pins, typically used for power and signal connections. Below is the pinout:
Pin Number
Description
Common Usage Example
1
VCC (Power Input)
Positive voltage supply
2
GND (Ground)
Ground connection
3
Signal/Data Line
Signal or data transmission
Usage Instructions
The JST XH 3R Male connector is straightforward to use and can be integrated into a variety of circuits. Below are the steps and best practices for using this component:
How to Use
Prepare the Wires: Strip the insulation from the wires to expose approximately 2-3 mm of the conductor.
Crimp the Contacts: Use a crimping tool to attach the crimp terminals to the exposed wire ends. Ensure a secure and firm crimp for reliable connections.
Insert the Contacts: Push the crimped contacts into the connector housing until they click into place.
Connect to the Female Counterpart: Align the JST XH 3R Male connector with its female counterpart and gently push them together until they lock securely.
Important Considerations
Wire Gauge: Use wires with an appropriate gauge (typically 22-28 AWG) to ensure compatibility and reliable connections.
Polarity: Double-check the pinout to avoid reversing the polarity, which could damage connected components.
Secure Mounting: If the connector is used in a high-vibration environment, ensure it is securely mounted to prevent accidental disconnection.
Avoid Overcurrent: Do not exceed the rated current of 3 A to prevent overheating or damage.
Example: Connecting to an Arduino UNO
The JST XH 3R Male connector can be used to supply power or transmit signals to an Arduino UNO. Below is an example of connecting a sensor with a JST XH 3R Male connector to an Arduino UNO:
Circuit Diagram
Pin 1 (VCC) → Arduino 5V
Pin 2 (GND) → Arduino GND
Pin 3 (Signal) → Arduino Digital Pin 2
Arduino Code Example
// Example code for reading a digital signal from a sensor connected via JST XH 3R
const int signalPin = 2; // Pin connected to the signal line of the JST XH 3R
int sensorValue = 0; // Variable to store the sensor reading
void setup() {
pinMode(signalPin, INPUT); // Set the signal pin as input
Serial.begin(9600); // Initialize serial communication
}
void loop() {
sensorValue = digitalRead(signalPin); // Read the digital signal
Serial.print("Sensor Value: "); // Print the sensor value to the serial monitor
Serial.println(sensorValue);
delay(500); // Wait for 500 ms before the next reading
}
Troubleshooting and FAQs
Common Issues and Solutions
Loose Connections
Issue: The connector does not fit securely or disconnects easily.
Solution: Ensure the crimp terminals are properly inserted into the housing and that the male and female connectors are fully mated.
Incorrect Polarity
Issue: The connected device does not function or is damaged.
Solution: Verify the pinout and ensure the VCC and GND lines are correctly connected.
Overheating
Issue: The connector becomes hot during operation.
Solution: Check that the current does not exceed the rated 3 A. Use thicker wires if necessary.
Signal Interference
Issue: Data transmission is unreliable or noisy.
Solution: Use shielded cables for the signal line and ensure proper grounding.
FAQs
Q1: Can the JST XH 3R Male connector handle high-frequency signals?
A1: Yes, it can handle high-frequency signals, but for very high-speed data, consider using shielded cables to minimize interference.
Q2: Is the JST XH 3R Male connector waterproof?
A2: No, the standard JST XH 3R Male connector is not waterproof. For outdoor or moisture-prone environments, use a waterproof connector.
Q3: Can I solder wires directly to the connector?
A3: While possible, it is not recommended. Use crimp terminals for a secure and reliable connection.
Q4: What tools are required for crimping?
A4: A dedicated JST crimping tool is recommended for precise and reliable crimps.
