A Red LED (Light-Emitting Diode) is a semiconductor device that emits red light when an electric current flows through it. It is one of the most commonly used LEDs due to its simplicity, low power consumption, and versatility. Red LEDs are widely used in electronic circuits as indicators, status lights, and in displays.

• Power and status indicators in electronic devices
• Digital displays (e.g., seven-segment displays)
• Signal lights in circuits
• Decorative lighting
• Educational and prototyping projects

Below are the typical specifications for a standard 5mm Red LED. Note that values may vary slightly depending on the manufacturer.

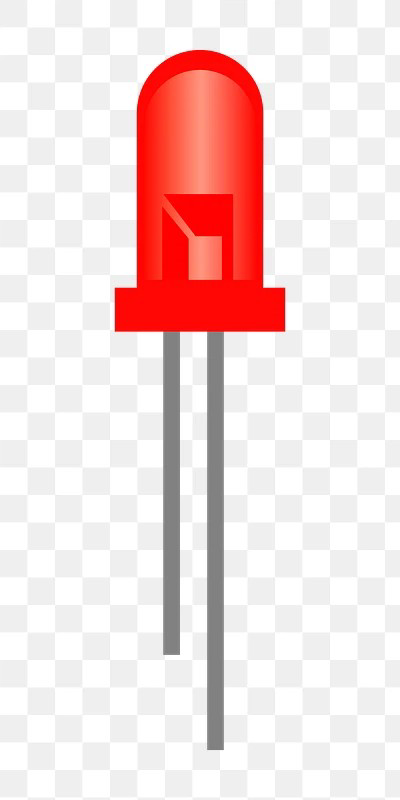

A Red LED has two pins: the anode (positive) and the cathode (negative). The cathode is typically shorter and may have a flat edge on the LED casing.

1. Determine the Resistor Value: To prevent damage to the LED, always use a current-limiting resistor in series with it. The resistor value can be calculated using Ohm's Law: [ R = \frac{V_{supply} - V_f}{I_f} ] Where:

   • (V_{supply}) is the supply voltage.
   • (V_f) is the forward voltage of the LED (typically 2V for a Red LED).
   • (I_f) is the desired forward current (typically 20mA or 0.02A).

   For example, if (V_{supply} = 5V), (V_f = 2V), and (I_f = 20mA): [ R = \frac{5V - 2V}{0.02A} = 150\Omega ]

2. Connect the LED:

   • Connect the anode (longer pin) to the positive terminal of the power source through the resistor.
   • Connect the cathode (shorter pin) to the ground.

3. Test the Circuit: Power the circuit and observe the LED emitting red light.

• Polarity Matters: LEDs are polarized components. Reversing the polarity may prevent the LED from lighting up or damage it.
• Use a Resistor: Never connect an LED directly to a power source without a resistor, as this can cause excessive current flow and damage the LED.
• Avoid Overcurrent: Do not exceed the maximum forward current (30mA) to ensure the longevity of the LED.
• Heat Management: While Red LEDs typically do not generate much heat, ensure proper ventilation in high-power applications.

Below is an example of how to connect and control a Red LED using an Arduino UNO.

• Connect the anode of the Red LED to digital pin 13 on the Arduino through a 220Ω resistor.
• Connect the cathode of the LED to the GND pin on the Arduino.

// Example code to blink a Red LED connected to pin 13 of Arduino UNO

// Define the pin number for the LED
const int ledPin = 13;

void setup() {
  // Set the LED pin as an output
  pinMode(ledPin, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(ledPin, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(ledPin, LOW);
  delay(1000); // Wait for 1 second
}

1. LED Does Not Light Up:

   • Cause: Incorrect polarity.

   • Solution: Ensure the anode is connected to the positive terminal and the cathode to ground.

   • Cause: No current-limiting resistor or incorrect resistor value.

   • Solution: Use a resistor with the correct value (e.g., 150Ω for a 5V supply).

2. LED is Dim:

   • Cause: Resistor value is too high.
   • Solution: Recalculate the resistor value to allow more current (but within safe limits).

3. LED Burns Out Quickly:

   • Cause: Excessive current due to a missing or low-value resistor.
   • Solution: Always use a resistor to limit the current to 20mA.

4. LED Flickers:

   • Cause: Unstable power supply or loose connections.
   • Solution: Check the power source and ensure all connections are secure.

• Q: Can I use a Red LED without a resistor?
  A: No, a resistor is essential to limit the current and prevent damage to the LED.

• Q: What happens if I reverse the polarity of the LED?
  A: The LED will not light up, but it typically will not be damaged unless the reverse voltage exceeds 5V.

• Q: Can I connect multiple Red LEDs in a circuit?
  A: Yes, but ensure each LED has its own current-limiting resistor, or calculate the resistor value for the entire series/parallel configuration.

• Q: How do I know the polarity of the LED?
  A: The longer pin is the anode (positive), and the shorter pin is the cathode (negative). Additionally, the cathode side often has a flat edge on the LED casing.

By following this documentation, you can effectively use a Red LED in your electronic projects!
