How to Use Micro SD Card Reader: Examples, Pinouts, and Specs

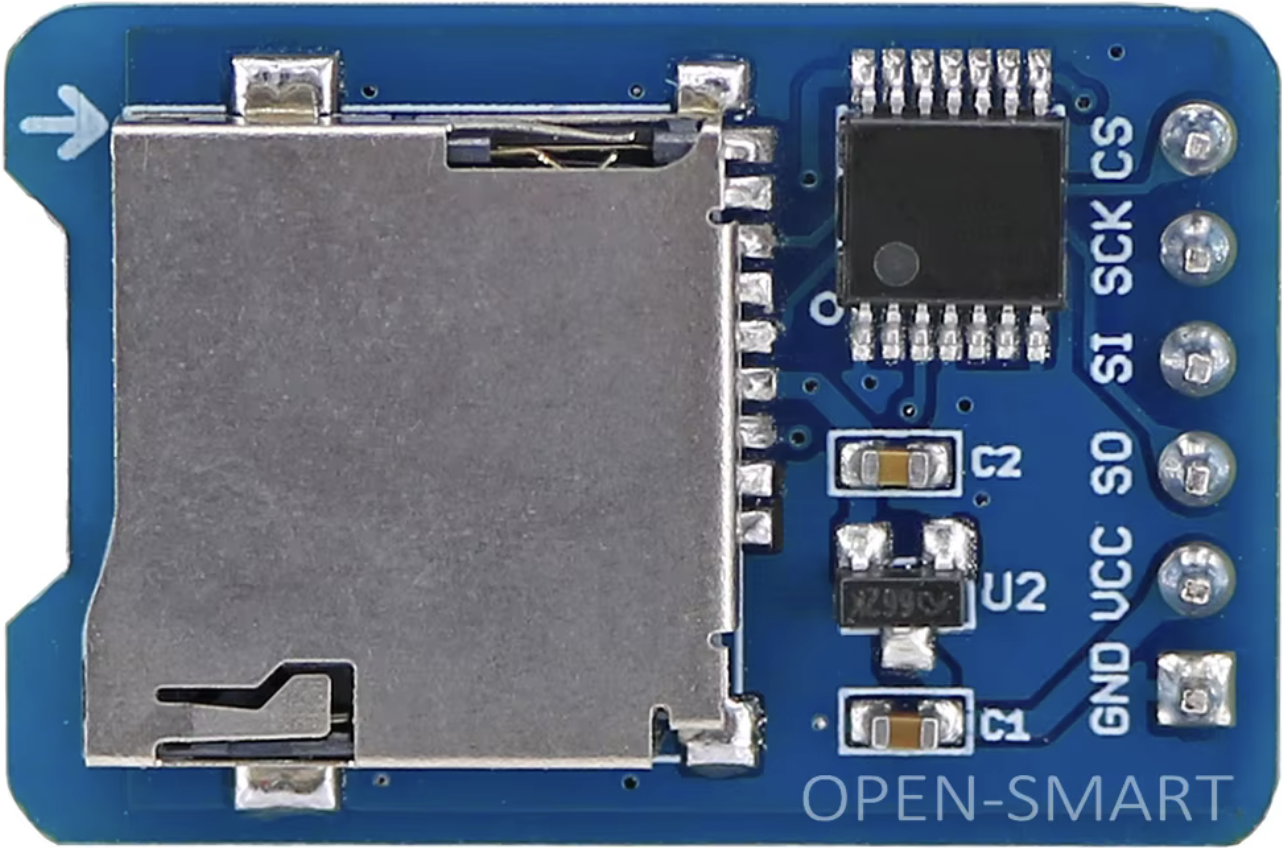

The Micro SD Card Reader by OPEN-SMART is a compact and versatile device designed to interface with Micro SD memory cards. It enables the reading and writing of data to and from Micro SD cards, making it an essential component for projects requiring external storage. This module is widely used in applications such as data logging, multimedia storage, and portable device development.

• Data logging for sensors and IoT devices
• Storing multimedia files (e.g., images, audio, video)
• Bootable storage for embedded systems
• File transfer and storage expansion for microcontroller-based projects

The following table outlines the key technical details of the OPEN-SMART Micro SD Card Reader:

The Micro SD Card Reader module has a standard 6-pin interface. The pinout is as follows:

1. Power Supply: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
2. SPI Connections: Connect the MISO, MOSI, SCK, and CS pins to the corresponding SPI pins on your microcontroller or development board.
3. Insert Micro SD Card: Ensure the Micro SD card is formatted as FAT16 or FAT32 before inserting it into the card slot.
4. Initialize Communication: Use an appropriate library (e.g., SD library for Arduino) to initialize and communicate with the Micro SD card.

• Voltage Compatibility: Ensure your microcontroller operates at a compatible voltage level (3.3V or 5V). The module includes a voltage regulator for safe operation.
• Card Formatting: Always format the Micro SD card as FAT16 or FAT32 for compatibility.
• Avoid Hot-Swapping: Do not insert or remove the Micro SD card while the module is powered to prevent data corruption.
• Pull-Up Resistors: Some SPI lines may require pull-up resistors for stable communication, depending on your microcontroller.

Below is an example of how to use the Micro SD Card Reader with an Arduino UNO to read and write data:

#include <SPI.h>
#include <SD.h>

// Define the Chip Select (CS) pin for the SD card module
const int chipSelect = 10;

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);
  while (!Serial) {
    ; // Wait for the serial port to connect (for native USB boards)
  }

  Serial.println("Initializing SD card...");

  // Check if the SD card is present and can be initialized
  if (!SD.begin(chipSelect)) {
    Serial.println("Card failed, or not present");
    // Stop further execution if the card is not detected
    while (1);
  }
  Serial.println("Card initialized successfully!");

  // Create or open a file on the SD card
  File dataFile = SD.open("example.txt", FILE_WRITE);

  // Check if the file opened successfully
  if (dataFile) {
    dataFile.println("Hello, Micro SD Card!");
    dataFile.close(); // Close the file to save changes
    Serial.println("Data written to example.txt");
  } else {
    Serial.println("Error opening example.txt");
  }
}

void loop() {
  // Nothing to do here
}

• The chipSelect pin (CS) is set to pin 10 for the Arduino UNO. Adjust this if using a different board.
• Ensure the SD library is installed in your Arduino IDE.

1. SD Card Not Detected

   • Cause: Incorrect wiring or incompatible card format.
   • Solution: Double-check the wiring and ensure the card is formatted as FAT16 or FAT32.

2. Data Corruption

   • Cause: Removing the card while powered or improper file handling.
   • Solution: Always power down the module before removing the card and close files after writing.

3. Initialization Fails

   • Cause: Incorrect CS pin configuration or insufficient power supply.
   • Solution: Verify the CS pin assignment in your code and ensure a stable power source.

4. Slow Data Transfer

   • Cause: Using a low-speed Micro SD card.
   • Solution: Use a Class 10 or higher Micro SD card for better performance.

• Q: Can this module work with 5V logic microcontrollers?
  A: Yes, the module includes a voltage regulator and level shifters for 5V compatibility.

• Q: What is the maximum supported Micro SD card size?
  A: The module supports cards up to 32GB formatted as FAT16 or FAT32.

• Q: Can I use this module with Raspberry Pi?
  A: Yes, but the Raspberry Pi has a built-in SD card interface. Use this module only if additional storage is required.

• Q: How do I check if the SD card is full?
  A: Use the available() function in the SD library to monitor free space.

This concludes the documentation for the OPEN-SMART Micro SD Card Reader.
