How to Use 4 Channel Relay Module: Examples, Pinouts, and Specs

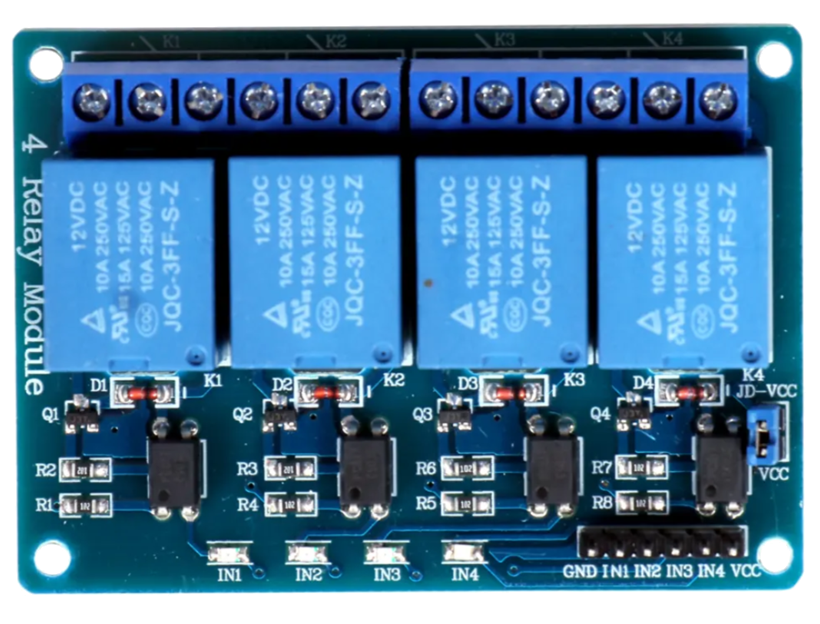

The 4 Channel Relay Module is an electronic component designed to control up to four independent circuits using a single microcontroller or switch. Each relay on the module acts as an electrically operated switch, allowing low-power control signals to manage high-power devices. The module typically features opto-isolated inputs for enhanced safety and reliability, making it suitable for applications involving high voltage or current loads.

• Home automation systems (e.g., controlling lights, fans, or appliances)
• Industrial automation and control
• Robotics and IoT projects
• Switching high-power devices such as motors, pumps, or heaters
• Smart home projects integrated with microcontrollers like Arduino or Raspberry Pi

Below are the key technical details of the 4 Channel Relay Module:

• Operating Voltage: 5V DC
• Trigger Voltage: 3.3V to 5V (compatible with most microcontrollers)
• Relay Type: SPDT (Single Pole Double Throw)
• Maximum Load:
  • AC: 250V at 10A
  • DC: 30V at 10A
• Opto-Isolation: Yes (for input signal protection)
• Dimensions: Approximately 75mm x 55mm x 20mm
• Weight: ~60g

The module has two main interfaces: the input control pins and the relay output terminals.

Each relay has three terminals: COM (Common), NO (Normally Open), and NC (Normally Closed).

1. Power the Module: Connect the VCC pin to a 5V power supply and the GND pin to the ground.
2. Connect the Control Signals: Use the IN1, IN2, IN3, and IN4 pins to control the relays. These pins can be connected to GPIO pins of a microcontroller (e.g., Arduino).
3. Connect the Load:
   • For each relay, connect the load to the COM and NO terminals if you want the circuit to be normally open.
   • Alternatively, connect the load to the COM and NC terminals if you want the circuit to be normally closed.
4. Trigger the Relays: Send a LOW signal (0V) to the respective IN pin to activate the relay and switch the connected load.

• Opto-Isolation: Ensure the module's opto-isolated inputs are used correctly to protect the microcontroller from high voltage spikes.
• Power Supply: Use a stable 5V power supply to avoid erratic relay behavior.
• Load Ratings: Do not exceed the maximum load ratings (250V AC/10A or 30V DC/10A) to prevent damage to the relays.
• Active LOW Logic: The relays are triggered by a LOW signal. Ensure your microcontroller logic accounts for this.

Below is an example of how to control the 4 Channel Relay Module using an Arduino UNO:

• Connect the module's VCC to the Arduino's 5V pin.
• Connect the module's GND to the Arduino's GND pin.
• Connect IN1, IN2, IN3, and IN4 to Arduino digital pins 7, 6, 5, and 4, respectively.
• Connect a load (e.g., a light bulb) to the COM and NO terminals of Relay 1.

// Define relay control pins
#define RELAY1 7  // Pin connected to IN1
#define RELAY2 6  // Pin connected to IN2
#define RELAY3 5  // Pin connected to IN3
#define RELAY4 4  // Pin connected to IN4

void setup() {
  // Set relay pins as outputs
  pinMode(RELAY1, OUTPUT);
  pinMode(RELAY2, OUTPUT);
  pinMode(RELAY3, OUTPUT);
  pinMode(RELAY4, OUTPUT);

  // Initialize all relays to OFF (HIGH state)
  digitalWrite(RELAY1, HIGH);
  digitalWrite(RELAY2, HIGH);
  digitalWrite(RELAY3, HIGH);
  digitalWrite(RELAY4, HIGH);
}

void loop() {
  // Example: Turn on Relay 1 for 2 seconds, then turn it off
  digitalWrite(RELAY1, LOW);  // Activate Relay 1
  delay(2000);                // Wait for 2 seconds
  digitalWrite(RELAY1, HIGH); // Deactivate Relay 1
  delay(2000);                // Wait for 2 seconds
}

1. Relays Not Activating

   • Cause: Insufficient power supply.
   • Solution: Ensure the module is powered with a stable 5V DC supply.

2. Erratic Relay Behavior

   • Cause: Electrical noise or unstable control signals.
   • Solution: Use proper decoupling capacitors and ensure clean signal connections.

3. Microcontroller Resetting When Relays Activate

   • Cause: Voltage spikes or insufficient power supply.
   • Solution: Use a separate power supply for the relay module and microcontroller.

4. Load Not Switching

   • Cause: Incorrect wiring of the load to the relay terminals.
   • Solution: Verify the load is connected to the correct COM and NO/NC terminals.

• Q: Can I use the module with a 3.3V microcontroller like ESP32?
  A: Yes, the module's trigger voltage is compatible with 3.3V logic levels.

• Q: Is it safe to control high voltage devices with this module?
  A: Yes, but ensure proper insulation and follow safety guidelines when working with high voltage.

• Q: Can I control all four relays simultaneously?
  A: Yes, as long as the total current draw does not exceed the power supply's capacity.

• Q: What is the purpose of opto-isolation?
  A: Opto-isolation protects the microcontroller from high voltage spikes and electrical noise.
