How to Use DHT22: Examples, Pinouts, and Specs

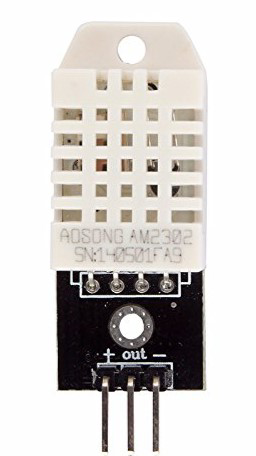

The DHT22 is a digital temperature and humidity sensor that provides accurate readings of temperature in Celsius and humidity in percentage. It is widely used in applications requiring environmental monitoring, such as weather stations, HVAC systems, greenhouses, and IoT projects. The DHT22 is known for its high precision and reliability, making it a popular choice for both hobbyists and professionals.

• Temperature Range: -40°C to +80°C
• Temperature Accuracy: ±0.5°C
• Humidity Range: 0% to 100% RH
• Humidity Accuracy: ±2% RH
• Operating Voltage: 3.3V to 6V
• Max Current Consumption: 2.5mA during data transmission
• Communication Protocol: Single-wire digital signal
• Sampling Period: Minimum 2 seconds (1 Hz maximum sampling rate)
• Dimensions: 15.1mm x 25mm x 7.7mm

The DHT22 has four pins, but only three are typically used in most applications. Below is the pinout:

1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
2. Data Communication: Connect the DATA pin to a digital input pin on your microcontroller. Use a 10kΩ pull-up resistor between the DATA pin and the VCC pin to ensure proper signal levels.
3. Sampling Rate: Ensure that the sensor is read no more than once every 2 seconds to avoid inaccurate readings.
4. Wiring Example:
   • Pin 1 (VCC) → 5V on the microcontroller
   • Pin 2 (DATA) → Digital pin on the microcontroller (with a 10kΩ pull-up resistor to VCC)
   • Pin 4 (GND) → GND on the microcontroller

Below is an example of how to use the DHT22 with an Arduino UNO. This code uses the popular DHT library, which simplifies communication with the sensor.

#include "DHT.h"

// Define the pin where the DHT22 is connected
#define DHTPIN 2  // Connect DATA pin of DHT22 to digital pin 2

// Define the type of DHT sensor
#define DHTTYPE DHT22  // DHT22 (AM2302)

// Initialize the DHT sensor
DHT dht(DHTPIN, DHTTYPE);

void setup() {
  Serial.begin(9600);  // Start serial communication at 9600 baud
  Serial.println("DHT22 Sensor Initialization");
  dht.begin();  // Initialize the DHT sensor
}

void loop() {
  delay(2000);  // Wait at least 2 seconds between readings

  // Read temperature in Celsius
  float temperature = dht.readTemperature();
  // Read humidity in percentage
  float humidity = dht.readHumidity();

  // Check if the readings are valid
  if (isnan(temperature) || isnan(humidity)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  // Print the readings to the Serial Monitor
  Serial.print("Temperature: ");
  Serial.print(temperature);
  Serial.println(" °C");

  Serial.print("Humidity: ");
  Serial.print(humidity);
  Serial.println(" %");
}

• Pull-Up Resistor: Always use a 10kΩ pull-up resistor on the DATA pin to ensure reliable communication.
• Sampling Rate: Do not read the sensor more frequently than once every 2 seconds to avoid incorrect data.
• Environmental Factors: Avoid placing the sensor in direct sunlight or near heat sources, as this can affect accuracy.
• Cable Length: Keep the cable length between the sensor and the microcontroller as short as possible to reduce signal degradation.

1. No Data or Incorrect Readings:

   • Ensure the pull-up resistor is connected between the DATA pin and VCC.
   • Verify that the sensor is powered with the correct voltage (3.3V to 6V).
   • Check the wiring for loose or incorrect connections.

2. "Failed to read from DHT sensor!" Error in Arduino Code:

   • Ensure the sensor is connected to the correct digital pin as defined in the code.
   • Verify that the DHT library is installed correctly in the Arduino IDE.

3. Slow or No Response:

   • Ensure the sampling rate is at least 2 seconds between readings.
   • Check for excessive cable length, which can cause signal degradation.

Q: Can the DHT22 be used outdoors?
A: Yes, but it should be placed in a protective enclosure to shield it from direct sunlight, rain, and dust.

Q: What is the difference between the DHT22 and DHT11?
A: The DHT22 offers better accuracy, a wider temperature and humidity range, and higher resolution compared to the DHT11.

Q: Can I use the DHT22 with a 3.3V microcontroller?
A: Yes, the DHT22 operates within a voltage range of 3.3V to 6V, making it compatible with 3.3V systems.

Q: How long is the DHT22's response time?
A: The DHT22 has a response time of approximately 2 seconds, which is why it should not be sampled more frequently than once every 2 seconds.
